How do I install a leveling kit on a 2027 F-150 in 2027?

The two options: spacer versus replacement strut

Two distinct hardware paths dominate the 2027 F-150 leveling market. Understanding exactly what each does to the suspension is the foundation for every decision that follows.

Strut-top spacer. This is a machined puck — billet aluminum or steel, typically 1.5 to 2.5 inches thick — that bolts between the coilover's top hat and the frame's strut tower. Three factory studs pass through it. The original strut, spring, and top mount remain untouched. The spacer pushes the entire assembly downward relative to the body, extending the front end and raising ride height by nearly the spacer thickness, usually within a quarter inch of nominal. Cost is modest, installation is approachable, and reversal takes an afternoon.

Preassembled replacement coilover. Here the factory strut assembly comes out entirely and a complete new unit goes in — new shock body, new spring, new top mount, shipped assembled. Lift comes from a taller spring, a longer shock body, or an adjustable perch. Reputable shock manufacturers offer F-150-specific part numbers with 0 to 2.5 or 0 to 3 inches of adjustment range. The advantage is engineered geometry: spring rate matched to the new height, valving matched to that spring, and a body long enough to preserve genuine downtravel.

A third variant worth naming: the strut-mounted coil spacer, which sits between the spring and the lower perch rather than atop the assembly. It demands disassembling the strut with a spring compressor — more labor than a top-hat spacer for an identical result, plus real injury risk if the compressor slips. Unless a specific kit mandates it, skip this route entirely.

The core behavioral difference appears once the truck is back on the ground. A spacer consumes downtravel — the strut keeps its original stroke, but you have shifted where in that stroke the truck rests. At full droop the lower control arm hangs at a steeper angle than Ford designed, the CV axle on a 4x4 runs at a steeper angle too, and the upper ball joint sits nearer the edge of its articulation range. On a pavement-only truck this rarely matters. On a truck that gets airborne on washboard or drops a front wheel into a rut, it matters enormously. A properly specified replacement coilover sidesteps this by engineering the lift rather than shimming it.

How to decide between them

Four variables drive the choice: how much lift you actually want, whether you carry weight up front, what tire you plan to run, and how much the truck sees off pavement.

Start with lift amount. A 2027 F-150 leaves the factory with roughly 1.5 to 2 inches of rake — the rear sits higher so the truck squats level under load. Leveling means erasing that rake, not exceeding it. A 2.5-inch spacer on a truck with only 1.75 inches of rake does not level it — it lifts the nose, and now the truck noses up, headlights point at treetops, and rain sheets toward the cowl instead of away. Measure your truck's actual rake on level ground before ordering anything.

Second, weight. Stock front end: a spacer is rational. Steel bumper, winch, or plow prep already added or planned: a spring that carries that load is not optional. A stock spring compressed under a 150-pound bumper will sag right back out of level within a month, and a spacer cannot fix that because the spring is unchanged.

Third, tire size. Leveling on the F-150 is usually a means to fit larger tires, and the constraint is not vertical clearance at ride height — it is what the tire hits at full lock and full compression. The forward inner fender liner, lower control arm, and sway bar end link are the usual contact points. Trimming the plastic liner and addressing the cab mount are common, and no leveling kit alone changes those clearances meaningfully.

Fourth, off-pavement use. Washboard, whoops, or high-speed dirt: the downtravel a spacer eats becomes the limiting factor, and a longer-body replacement coilover earns its price.

Concrete numbers behind each option

Numbers separate marketing claims from what actually happens on your truck.

Spacer thickness versus measured gain. A 2-inch spacer typically yields 1.75 to 2 inches at the fender, because suspension geometry does not translate spacer thickness one-for-one and the truck settles over the first few hundred miles. Heavier front-end trucks gain slightly less. A 1.5-inch spacer on a truck with 1.75 inches of rake leaves a small rearward bias — often ideal if you tow occasionally. A 2.5-inch spacer on the same truck over-lifts the nose by roughly three-quarters of an inch.

Torque values. Suspension fasteners on this platform are high-torque. Strut tower nuts commonly land in the 35 to 50 ft-lb range, the lower strut-to-control-arm bolt in the 150 to 200 ft-lb range, and lug nuts around 150 ft-lb. Always consult the specific service procedure for your truck and kit — these ranges vary by fastener size and grade. A torque wrench covering 20 to 250 ft-lb is the right tool. Never trust "good and tight" on a suspension component.

Alignment specifications. Camber, caster, and toe all shift when you raise the front end. Toe changes most dramatically and is the primary tire killer. At 2 inches of lift, camber frequently exceeds the factory adjustment range on the F-150 platform — aftermarket upper control arms with corrected geometry bring it back into spec and add ball joint articulation. Some trucks align fine without them; measure before buying. Expect an alignment to cost roughly the price of a tank of fuel to a couple hundred dollars depending on market and shop.

Travel and geometry. A 2-inch spacer removes approximately 2 inches of available downtravel from a strut that may only have 3 to 4 inches total. That is a substantial percentage. Replacement coilovers with longer bodies restore or exceed stock travel. CV axle angles on a 4x4 increase by roughly the same proportion as the lift, and boots are the first wear item to complain.

Tire fitment. Leveling alone does not fit 34 or 35-inch tires. Fitting larger rubber usually also requires trimming the forward inner fender liner and, at larger sizes, addressing the cab mount. The tire's actual measured diameter varies by brand and load range even within a nominal size, so verify against your specific tire.

Cost ranges. Spacer kits sit at the low end of the aftermarket suspension spectrum. Replacement coilovers cost multiples of that. Add alignment, possible upper control arms, and possible trimming labor. Budget for the complete system, not just the box.

Implementation details and sequencing

The procedure below covers a strut-top spacer on a 2027 F-150. Replacement coilover installation follows the identical sequence through strut removal — the difference is that you install the new preassembled unit instead of adding a spacer, and if the coilover is height-adjustable you set the perch to the manufacturer's starting position on the bench, with a caliper, before it ever goes in the truck.

Preparation. Measure all four corners on level ground and record the numbers. Chock the rear wheels. Lift the front by the frame, not the control arms, and place jack stands rated well above the truck's front axle weight. Remove the front wheels. Apply penetrating oil to every fastener you will touch — ideally the night before.

Disassembly. Disconnect the sway bar end link, the ABS wheel speed sensor wire, and the damper electrical connector if equipped. Support the lower control arm with a jack so it does not drop when the strut is freed. Remove the lower strut bolt, then the three strut tower nuts. Extract the strut assembly. Before separating anything, photograph the clocking and orientation of the top hat relative to the strut body — reassembly errors here cause noise and misalignment.

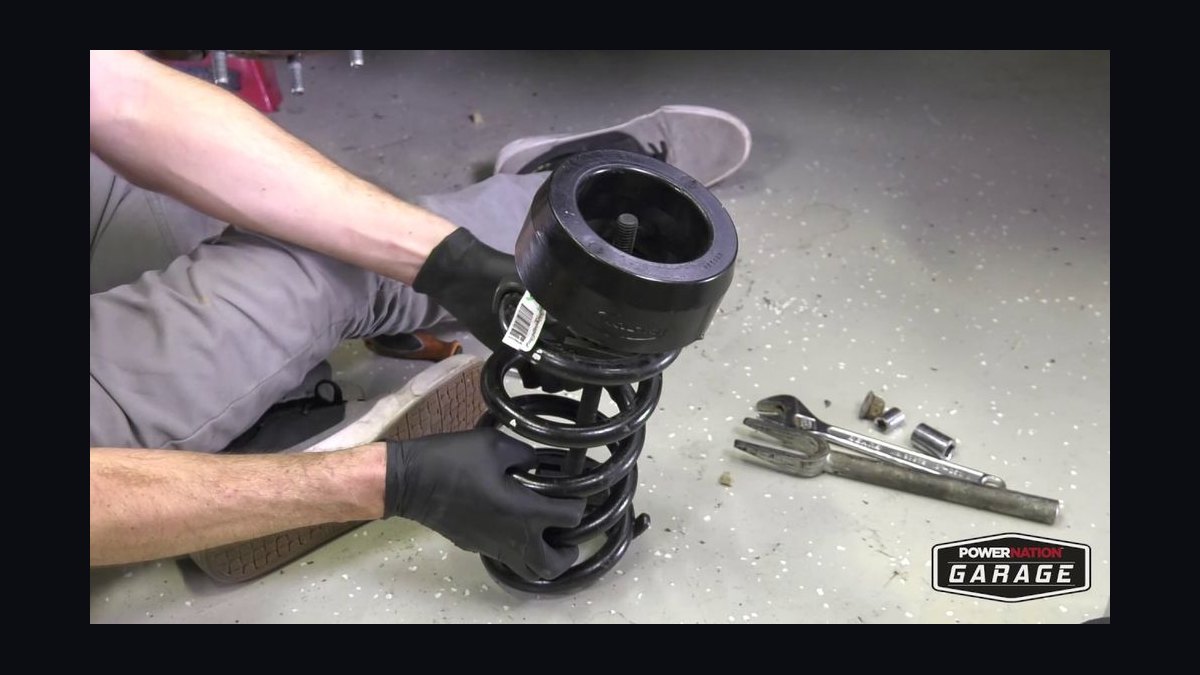

Spacer installation. Bolt the spacer to the strut top hat using the supplied hardware and follow the kit's torque specification. Do not reuse a stretched or corroded strut tower nut; replace hardware the kit tells you to replace.

Reassembly. Reinstall the assembly into the tower. Hand-start every fastener before tightening anything — cross-threading a strut tower stud is a bad day. Jack the lower control arm upward to align the lower bolt hole, then install the lower bolt. Torque the lower arm bolts at ride height, not at full droop, or you will preload the bushings and shorten their life.

Completion. Reinstall the wheels, lower the truck, bounce the front end to settle the suspension, and remeasure all four corners. Compare against your baseline. Then drive directly to an alignment shop — not forty miles away, but locally and soon. An unaligned leveled truck will destroy the inside or outside shoulder of a front tire within a few hundred miles of highway driving.

What not to do. Never disassemble a factory strut without a proper spring compressor, and never improvise one — a compressed truck spring stores enough energy to cause serious injury. Do not skip the differential drop bracket if the kit includes one. Do not drive on the highway before alignment.

After the install. Recheck every fastener you touched at around 100 miles. Inspect the CV boots and brake lines at full lock in both directions to confirm nothing is rubbing or stretched. Turn the wheel lock to lock with the front raised and watch the tire against the fender liner and upper control arm. Any contact visible with the suspension unloaded will be worse when it compresses.

Related questions

Does a leveling kit void the factory warranty?

It does not void the entire warranty. A manufacturer can decline a claim on a specific component if it can show the modification caused the failure — a worn CV joint after a lift, for instance. Unrelated failures remain covered. Dealer interpretation varies, so keep receipts and documentation.

Do I need new upper control arms with a 2-inch level?

Often yes, if you want a correct alignment. At 2 inches, camber frequently exceeds the factory adjustment range on the F-150 platform. Aftermarket upper arms with corrected geometry bring it back into spec and add ball joint articulation. Some trucks align fine without them — measure before buying.

Will a leveling kit let me fit 34 or 35-inch tires?

Not by itself. Leveling raises the body but does not change what the tire contacts at full steering lock and full compression. Fitting larger tires on the F-150 usually also requires trimming the forward inner fender liner and, at larger sizes, addressing the cab mount.

Should I add a rear block to keep some rake?

Only if you carry weight. Factory rake exists so the truck sits level under load. If you tow or haul regularly, leaving some rake is smart. If the bed is empty most of the time, a pure level looks and drives better.

How long does a leveling kit last?

The spacer itself is a solid billet part with no wear items and effectively lasts indefinitely. What wears is everything downstream — CV joints, ball joints, and tie rod ends all run at less favorable angles and may need replacement sooner than on a stock truck.

FAQ

Can I install a leveling kit myself without a lift?

Yes. A spacer kit is one of the more approachable suspension jobs and is regularly done on jack stands in a driveway. What you need is a good floor jack, jack stands rated well above the truck's front axle weight, a torque wrench covering the high values suspension fasteners use, a breaker bar, and penetrating oil. The genuinely difficult part is not the procedure — it is corroded fasteners. If the truck has lived through several salted winters, budget extra time and have a plan for a seized strut tower nut before you start rather than after.

How much lift do I actually get from a 2-inch spacer?

Usually close to the nominal number but not exactly. A 2-inch spacer typically produces somewhere around 1.75 to 2 inches of measured gain at the fender, because suspension geometry does not translate spacer thickness one-for-one and because the truck settles over the first few hundred miles. Heavier front-end trucks gain slightly less. This is why the before-and-after measurement matters: it tells you what your specific truck did, rather than what the box claimed.

Do I have to get an alignment after installing a leveling kit?

Yes, and treat it as part of the job rather than an optional follow-up. Raising the front end changes camber and toe immediately and significantly. An unaligned leveled truck will destroy the inside or outside shoulder of a front tire within a few hundred miles of highway driving. Schedule the alignment for the same day you finish the install and drive as little as possible in between.

Does leveling hurt ride quality?

A spacer leaves spring rate and damping unchanged, so ride quality stays close to stock at normal ride height. What changes is behavior at the extremes — because the spacer consumes downtravel, the front end tops out sooner over dips and unloads differently. Replacement coilovers change ride quality more directly since you have new springs and new valving. Whether that is better depends entirely on how well the rate matches the weight the truck actually carries.

Will the driver assistance systems still work after leveling?

Possibly, but do not assume. Forward radar and camera systems on a modern F-150 are aimed relative to the vehicle's attitude, and changing that attitude can move their aim point. Some systems tolerate a small change; others require a recalibration procedure. Check the specific requirements for your truck, and if adaptive cruise or collision warning throws a fault after the install, treat it as a calibration issue first.

Is a leveling kit reversible?

A strut-top spacer is fully reversible — remove it, reinstall the factory strut, and get an alignment back to stock specs. Replacement coilovers are reversible only if you kept the original strut assemblies, which most people do not. If you think you might sell the truck and want it stock, keep the factory parts and label them. Note that reversal requires the same alignment step as installation.
