The 120-gallon reef that kept swinging two degrees overnight

Picture a mixed reef running a canister filter and a single glass submersible heater clipped to the back-left corner of the display. The controller says 78°F. The probe on the opposite end of the tank, near the overflow, reads 76.4°F at 4 a.m. and 78.9°F by mid-afternoon. Nothing is broken. The heater is doing exactly what a submersible heater does: it dumps heat into a local column of water and waits for circulation to distribute it. In a tank that deep, with rockwork blocking flow paths, that distribution is slow and uneven — a phenomenon commonly described as thermal stratification.

This is the scenario that drives most Hydor vs Eheim heater comparisons in the first place. The operator is not asking "which brand is better" in the abstract. They are asking why a heater rated to a stated accuracy is producing a measured swing several times larger than the spec sheet suggests, and whether switching architecture — from in-tank glass to inline external — actually fixes it.

The answer, in practice, is that it usually does, but not because the Hydor element is inherently more precise than the Eheim element. It is because of *where the sensor sits relative to the heat source and the flow*. An inline heater like the Hydor ETH series is installed on the return line of a canister filter or a sump pump. Every drop of water that passes through it is moving at the filter's full flow rate — often several hundred gallons per hour — and it exits into the display already mixed. The thermostat is reading water that is in motion, not water sitting in a stagnant corner behind a rock.

An Eheim Jäger submersible, by contrast, sits in a fixed location and heats a plume around itself. If your powerheads are pointed elsewhere, that plume rises, hits the surface, and spreads slowly. The heater's internal thermostat sees the warm plume first and shuts off — so the heater thinks it hit setpoint while the far end of the tank is still a degree and a half cold. The heater is honest; the placement is lying to it.

Two practical takeaways from this scenario before we get into mechanism. First, a large fraction of "my heater is inaccurate" complaints are flow and placement problems, not component problems, and they will follow you across brands if you do not fix the underlying circulation. Second, the gap between Hydor and Eheim narrows dramatically in small, well-circulated tanks and widens dramatically in large, deep, heavily aquascaped ones. A 20-gallon cube with a decent return pump will hold temperature nearly identically with either heater. A 150-gallon reef with 60 pounds of rock will not.

How inline external and glass submersible heating actually differ

Both product families do the same physics — resistive heating with a thermostat cutoff — but the packaging changes the control loop in ways that matter operationally.

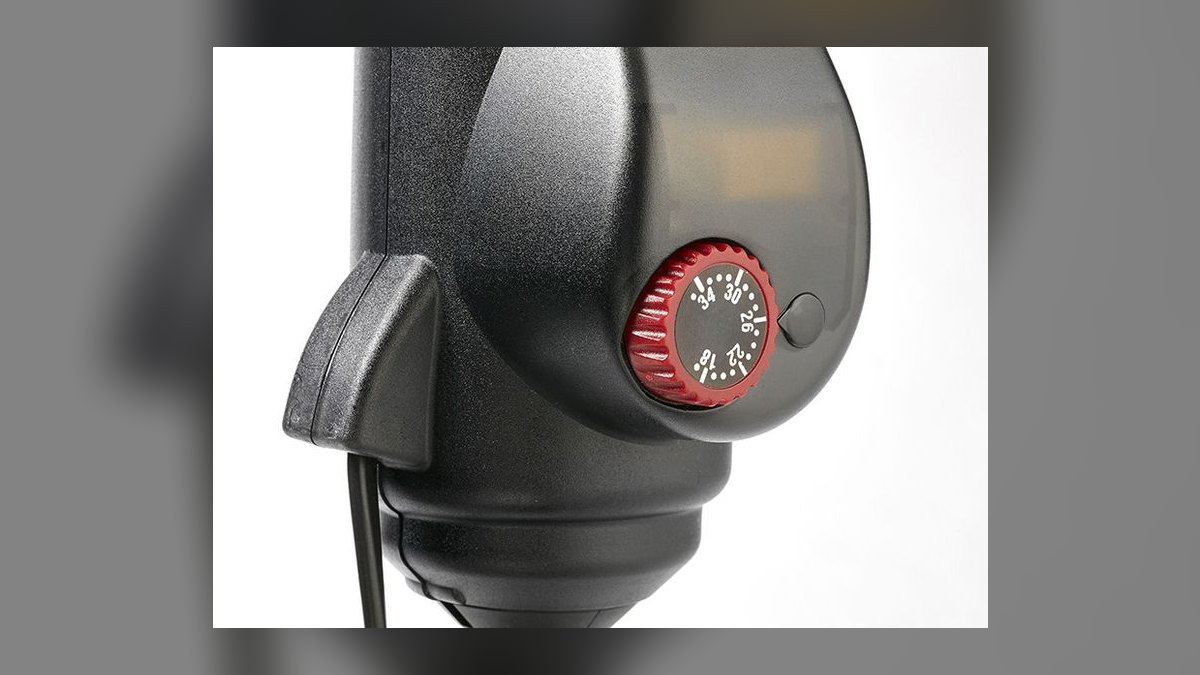

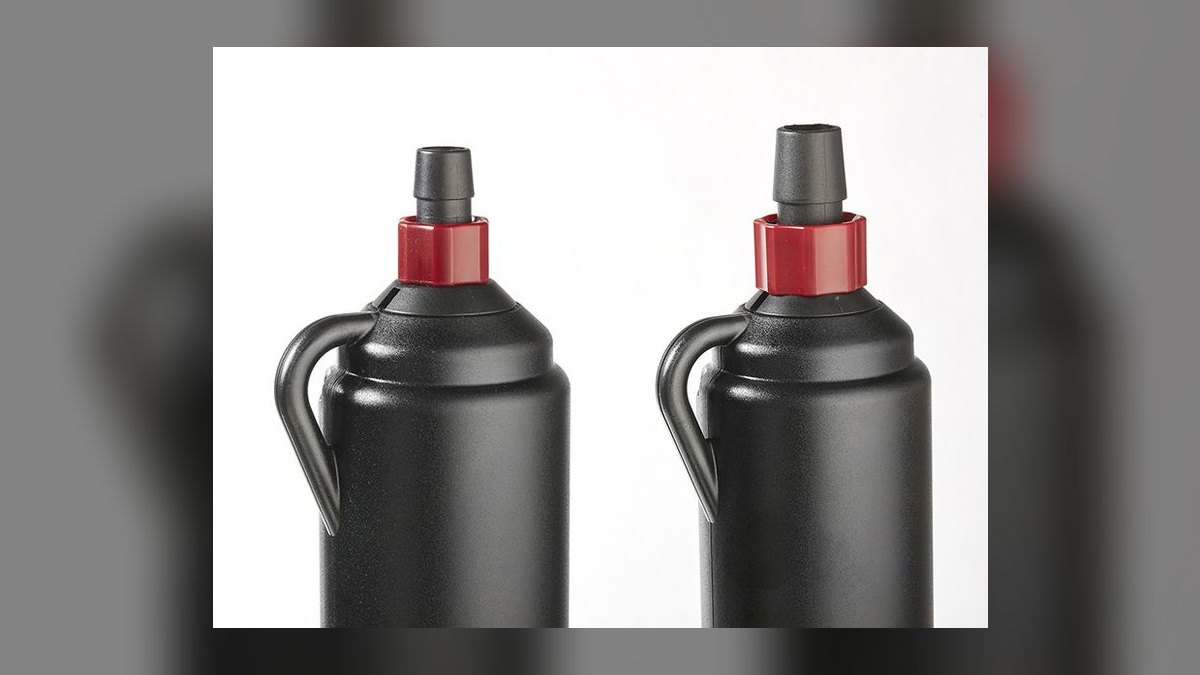

The Hydor ETH inline architecture. The ETH series is a sealed cylindrical body that you splice into flexible tubing on the *outlet* side of a canister filter. Water enters one end, passes over the heating element, and exits into the display. The unit ships with adapters sized for common tubing diameters, which is what makes it compatible with the mainstream canister lines from Fluval, Eheim, Oase, and JBL. Because the heater lives outside the tank, three things follow: no equipment is visible in the display (the reason aquascapers and reef keepers reach for it), no livestock can contact a hot glass surface, and the entire heater body is accessible for service without getting your arm wet.

The trade-off is that an inline heater is *dependent on flow*. If the canister filter clogs, the impeller stalls, or you close a valve during maintenance and forget to reopen it, the heater is sitting in a static column of water inside a plastic tube. Hydor addresses this with a thermal cutoff, but the design assumption is unambiguous: the heater must have water moving through it. That dependency is the single biggest architectural difference between the two families, and it is the reason inline heaters are wired to shut down rather than to keep pushing heat into stagnant water.

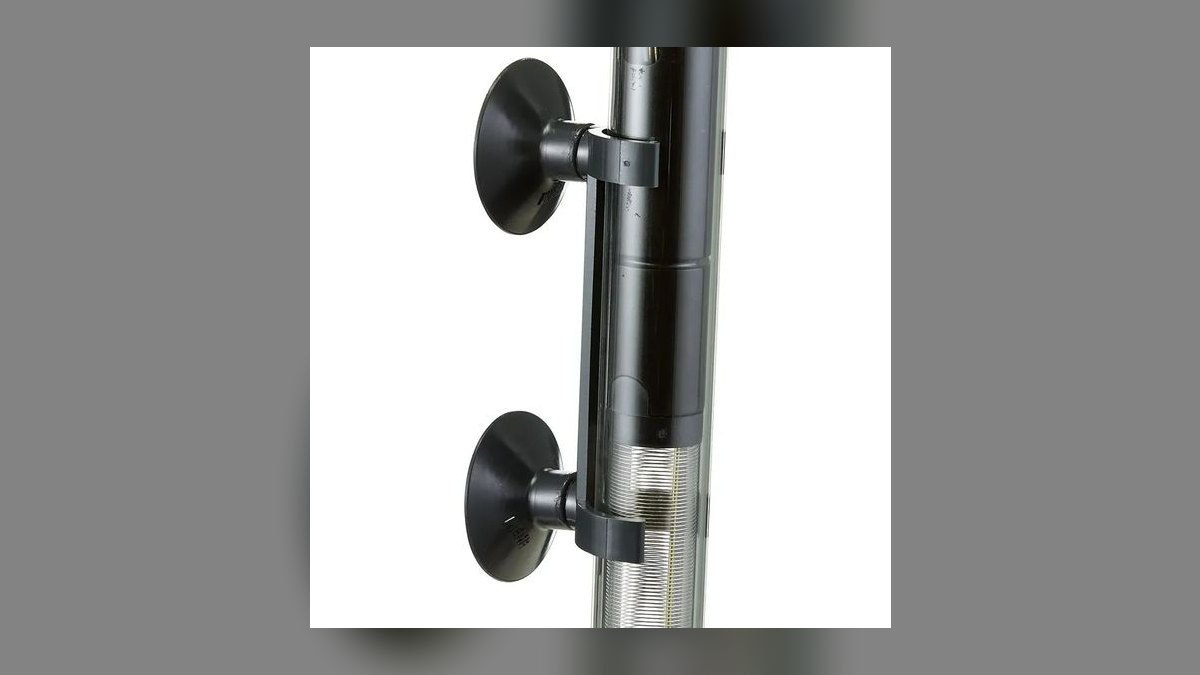

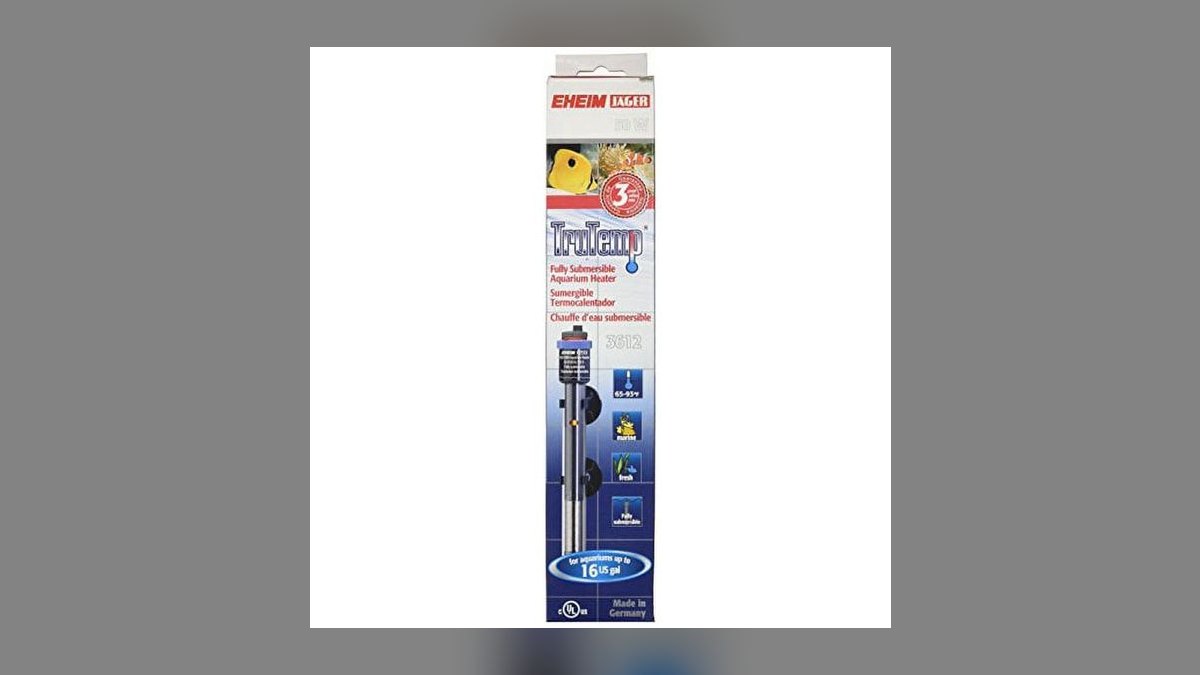

The Eheim glass submersible architecture. The Jäger and Thermocontrol lines are the classic form factor: a borosilicate glass tube containing the element and thermostat, mounted inside the tank with a suction-cup bracket. Eheim's long-running reputation here rests on two things — the glass envelope, which is chemically inert in both freshwater and saltwater, and the calibration dial, which lets you correct for offset between the heater's internal reading and an external thermometer. That calibration capability is genuinely useful and frequently underused. Out of the box, a heater dial marked 78 may hold 76.5; the dial exists precisely so you can trim that out.

The trade-off with glass submersibles is physical vulnerability and placement sensitivity. Glass breaks if knocked hard during a water change, and if a submersible heater is exposed to air while powered — a real risk during large water changes on shallow tanks — thermal shock can crack the envelope. Eheim's guidance, like every submersible manufacturer's, is to unplug during water changes and let the unit equalize before re-energizing.

Why the sensor location dominates the comparison. Note what the diagram makes explicit: both paths converge on a tight band *if circulation is adequate*. The inline design forces adequate circulation as a structural property of the install — you cannot run an inline heater without flow. The submersible design leaves circulation as an operator responsibility. That is the honest framing of the Hydor vs Eheim heater performance question: Hydor removes a failure mode by design; Eheim leaves it to you but costs less and installs in ninety seconds.

A third path worth naming: external controllers. Either heater family can be put under an external temperature controller with its own probe placed far from the heater. This decouples the sensing from the heating entirely and is standard practice on high-value systems. With a controller in the loop, the heater's own thermostat becomes a backup limit rather than the primary control, and the accuracy difference between an inline and a submersible narrows considerably — because the controller's probe, not the heater's internal sensor, is now making the decisions.

Sizing, wattage, and what the numbers actually mean

Wattage selection is where most operators either overspend or under-protect, and it is the most quantifiable part of any heater comparison.

The standard sizing heuristic. The widely used rule of thumb across the hobby is roughly 3 to 5 watts per gallon, biased toward the higher end when the room is cold and toward the lower end when the room is warm and stable. A 40-gallon tank in a heated living room is comfortable on 100 to 150 watts. The same 40-gallon tank in an unheated basement wants 200. The variable that actually drives the requirement is not tank volume alone — it is the *delta* between target water temperature and ambient room temperature. A tank held at 78°F in a 72°F room is defending a 6-degree gap. The same tank in a 62°F garage is defending 16 degrees, and needs meaningfully more capacity to recover after a water change.

Both Hydor's ETH line and Eheim's Jäger line span the useful range from roughly 50 watts up through 300 watts and beyond, so wattage availability is rarely the deciding factor. What differs is granularity of fit: inline units are chosen partly by tubing diameter compatibility with your filter, which constrains which wattage you can practically run.

Why oversizing is a real risk, not a free safety margin. A stuck-on 300-watt heater in a 30-gallon tank can cook livestock in a few hours. A stuck-on 100-watt heater in the same tank raises temperature much more slowly, which buys you time to notice. This is the reasoning behind the common recommendation to run *two smaller heaters* instead of one large one on any tank you care about. Two 150-watt units on a 100-gallon system give you redundancy — if one fails cold, the other holds you near setpoint until you notice — and they cap the worst-case runaway rate, because a single stuck unit only has half the total capacity.

Reading accuracy specs honestly. Manufacturer accuracy figures describe the heater's ability to hold a setpoint *at its own sensor under stable conditions*. They are not a promise about the temperature at the far corner of your tank. When you see a tight accuracy figure quoted for an inline unit versus a looser one for a submersible, the meaningful part of that comparison is not the decimal — it is that the inline unit's sensor is reading well-mixed water by construction. In a tank with strong, well-aimed circulation, a submersible's real-world spread closes most of the gap.

Duty cycle as a diagnostic number. The number worth actually measuring in your own system is duty cycle: what percentage of each hour the heater is energized. Put a simple energy monitor on the heater's plug for 24 hours. A healthy setup in a stable room typically runs a modest duty cycle with short, frequent cycles. If your heater is running near-continuously, it is undersized for the room delta and has no reserve for a cold snap or a water change. If it fires in long, infrequent bursts, you will see correspondingly larger temperature excursions — that is the signature of a heater with a wide hysteresis band, and it is a stronger predictor of visible swing than the headline accuracy spec.

Recovery time after a water change. This is the benchmark most operators never run and should. Do a normal-sized water change with your usual replacement water temperature, then log tank temperature every ten minutes until it returns to setpoint. On a properly sized system the recovery should be measured in tens of minutes, not hours. If recovery takes more than an hour or two, you are underpowered for the way you actually operate the tank, regardless of which brand is on the plug.

Energy cost. Heater energy consumption is a function of watts drawn times hours energized — the same for both brands at the same wattage and duty cycle. Neither Hydor nor Eheim has a meaningful efficiency edge, because resistive heating is essentially 100% efficient at converting electricity to heat. Anyone claiming a large running-cost difference between two resistive heaters of the same wattage is selling something. The real lever on operating cost is insulation, a lid, and room temperature — not brand.

Trade-offs: where each family earns its place

There is no universally correct answer, and the honest recommendation depends on four variables: tank size, whether you run a canister or sump, how visible the equipment is, and how much a temperature excursion would cost you.

Choose inline external (Hydor ETH) when: you already run a canister filter or sump, so the plumbing exists and the install is a splice rather than a redesign; the display is an aquascape where visible equipment is a real aesthetic cost; you keep livestock sensitive to contact burns or to narrow temperature bands; or the system is large and deep enough that stratification is a live problem. Reef systems and high-end planted tanks are the archetypal cases.

Choose glass submersible (Eheim Jäger / Thermocontrol) when: the tank has no canister or sump — an all-in-one or a hang-on-back setup has nowhere to put an inline heater; the tank is temporary, such as a quarantine or hospital tank you break down between uses; you need to move or redeploy the heater frequently; or budget matters and the tank is small and well-circulated enough that the accuracy gap is academic.

The hybrid most experienced operators actually run. On systems where a temperature failure would be expensive, the common configuration is not "pick a brand." It is: two heaters of half the required total wattage, on an external controller with a probe placed far from both heaters, with each heater's internal thermostat set slightly *above* the controller setpoint so it acts as a hardware over-temperature limit rather than the primary control. This gives you three layers — controller, heater thermostat, and the second heater's independent failure mode — and it works equally well with Hydor inline units, Eheim submersibles, or one of each.

Where the brands genuinely differ in service life terms. Inline units keep the electrical body outside the water and the element in a sealed housing, which removes the two most common submersible failure paths: glass breakage and seal degradation at the cap where the cord enters. Glass submersibles, in exchange, have no plumbing connections that can leak. An inline heater introduces two new tubing joints into your system, and every joint is a potential drip. If you install one, use proper clamps and check the joints for the first several days.

Cost framing. Inline external heaters carry a meaningful price premium over comparable-wattage glass submersibles across the market, and they also require the filter infrastructure to be there already. The premium buys you invisibility in the display, contact-burn elimination, and flow-forced mixing. Whether that is worth it is a function of what is in the tank. On a community freshwater tank with hardy fish, it is a luxury. On a coral system, the calculus is different — the heater is a small line item against livestock value, and the revenue-style math most operators run is simply: what does one thermal excursion cost me versus the delta in purchase price?

Pitfalls that cause most heater failures, and how to avoid them

Trusting the dial instead of an independent thermometer. The single most common mistake. Every heater's dial is a rough index, not a calibrated instrument. Always run a separate thermometer — ideally a digital one with a probe placed at the opposite end of the tank from the heater — and calibrate the heater's dial to match it. On Eheim units with a calibration adjustment, this is a designed-in workflow. On any heater, the discipline is the same: trust the independent probe, not the label.

Not unplugging during water changes. A submersible heater exposed to air while powered can overheat and crack when it re-contacts cool water. An inline heater left energized while the canister is closed off for maintenance is sitting in stagnant water. Both scenarios are avoidable with one habit: unplug the heater first, do the maintenance, restore flow and full water level, then plug it back in. Put the heater on a separate, clearly labeled outlet or switch so this takes two seconds rather than a hunt behind the cabinet.

Single heater on a system that cannot tolerate failure. Heaters fail in two directions. Fail-cold is survivable in most rooms for a while. Fail-hot — a stuck relay or welded contact — can be lethal within hours. Neither brand is immune; this is a category-level risk of resistive heaters with mechanical thermostats. The mitigation is redundancy plus an independent controller, not brand selection.

Ignoring flow degradation on an inline install. An inline heater's performance is only as good as the filter feeding it. As media loads up over weeks, flow drops, and the heater's effective mixing drops with it. If you run a Hydor ETH, put filter maintenance on a real schedule and treat declining flow as a heater issue as much as a filtration issue. A canister at half its rated flow is a materially different thermal environment than the one you commissioned.

Placing a submersible vertically in a low-flow corner. If you must run a submersible, place it horizontally near the bottom in the path of a powerhead or the filter return, not vertically in a dead corner. Heat rises; a heater placed low with flow across it distributes far better than the same unit clipped high in still water. This one change frequently closes most of the measured gap between a submersible and an inline install, and it costs nothing.

Assuming saltwater and freshwater are the same duty. Saltwater systems accumulate mineral deposits on any submerged surface, including glass heater tubes. That coating is an insulating layer — it makes the heater work harder and read its own environment less accurately over time. Wipe submerged heaters during routine maintenance. Inline units avoid the display-side buildup but can still scale internally on very hard water.

Buying on accuracy spec alone. The spec is measured at the heater's own sensor under lab-stable conditions. Real-world spread in your tank is dominated by circulation, room stability, tank volume, and lid presence. Fix those first. An accurate heater in a badly circulated tank still gives you a badly stratified tank; a modest heater in a well-mixed, lidded tank in a stable room will hold a band most people would be happy to publish.

Skipping the burn-in check. After installing any new heater, log temperature every hour for the first 24 to 48 hours before you trust it with livestock you care about. Watch for the swing amplitude and the cycle frequency. This is the cheapest insurance in the hobby and it catches both dead-on-arrival units and calibration offsets before they cost you anything.

Related questions

Do I need to remove a submersible heater during a water change?

You do not need to remove it, but you must unplug it and keep it fully submerged. If the water line will drop below the heater, unplug it, wait a few minutes for it to equalize, and only re-energize once the tank is refilled and the unit is submerged again.

Can I run a Hydor inline heater with a hang-on-back filter?

Not practically. Inline heaters splice into flexible tubing carrying pressurized return flow, which HOB filters do not provide. Inline heating requires a canister filter or a sump return line. With a HOB, use a submersible heater positioned in the filter's outflow path.

Is two smaller heaters better than one large one?

For most tanks over roughly 40 gallons, yes. Two half-wattage units give you fail-cold redundancy and cap the worst-case runaway rate if one sticks on. The cost premium is small relative to the livestock protected, and it works with either brand.

Does an external controller make the brand choice irrelevant?

Largely, for accuracy. A controller with a remote probe takes over primary control from the heater's internal thermostat, so sensing quality stops being the differentiator. Architecture differences — visibility, contact burns, flow dependency, glass fragility — still apply.

FAQ

Which is more accurate in real-world use, Hydor inline or Eheim submersible?

In large or heavily aquascaped tanks, the Hydor ETH inline design typically produces a tighter measured spread across the whole tank, because the element sits in forced flow and the thermostat reads well-mixed water. In small, well-circulated tanks the practical difference is small. Most of the real-world gap comes from sensor placement relative to flow, not from element quality.

Can a Hydor inline heater be used with any canister filter?

Generally yes, provided the tubing diameter matches one of the included adapters and the filter delivers steady flow. The ETH line is built for the standard tubing sizes used by mainstream canister brands. Verify your filter's tubing outer diameter before ordering, and confirm the heater is installed on the return line so heated water goes straight into the display.

Are Eheim glass heaters safe in saltwater?

Yes. Borosilicate glass is chemically inert and standard in marine use. The practical concerns are mineral scale building up on the glass over time, which insulates the element, and physical fragility during rockwork maintenance. Wipe the tube during routine service and keep it away from where you reach in.

What wattage do I need for a 75-gallon tank?

Start from the 3 to 5 watts per gallon heuristic, which puts a 75-gallon tank in roughly the 225 to 375 watt range, then adjust for your room. A stable 72°F room sits at the low end; a cold room or a garage pushes toward the high end. On a tank that size, split the total across two heaters for redundancy rather than running one large unit.

Why does my tank swing more than the heater's stated accuracy?

Because the spec describes control at the heater's own sensor, not uniformity across the tank. Stratification, weak or badly aimed circulation, an open top losing evaporative heat, and an unstable room all widen the real spread. Fix circulation and add a lid before concluding the heater is at fault.

Should I put the heater in the sump or in the display?

The sump, when you have one. It removes equipment from the display, gives the heater a consistently mixed volume, and makes service trivial. Place it where flow passes over it — not in a dead baffle chamber — and keep the probe of any external controller in a different chamber so it is not reading the heater's immediate plume.
