Top 10 Rotary Laser Levels — Best Overall + Best Value in 2027

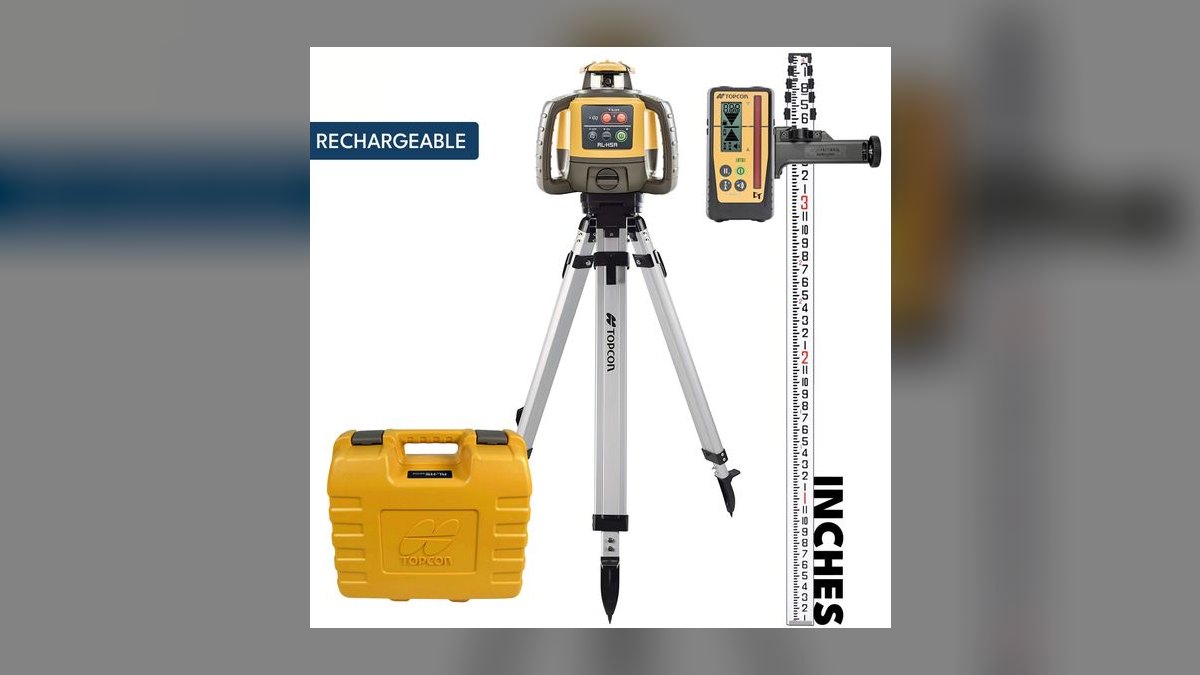

1. Topcon RL-H5A

It ranks first because it does routine grading flawlessly at a price working contractors can justify: $615 for a horizontal self-leveling rotary with a 2,600 ft working diameter using the included LS-80X detector. Accuracy holds at plus or minus 1/16 in at 100 ft, matching lasers costing three times more. The IP66 housing shrugs off dust and rain on open dirt, and alkaline D-cells run roughly 100 hours.

This is for excavators, foundation crews, and grading contractors who set elevations all day and need the tool to survive the truck bed. It trades away green-beam visibility and dual-axis slope: the red beam is invisible outdoors, so you are committed to the detector, and manual slope is single-axis up to 5 percent only. The Bosch REVOLVE4000 below adds both green and dual-grade, but costs $1,599.

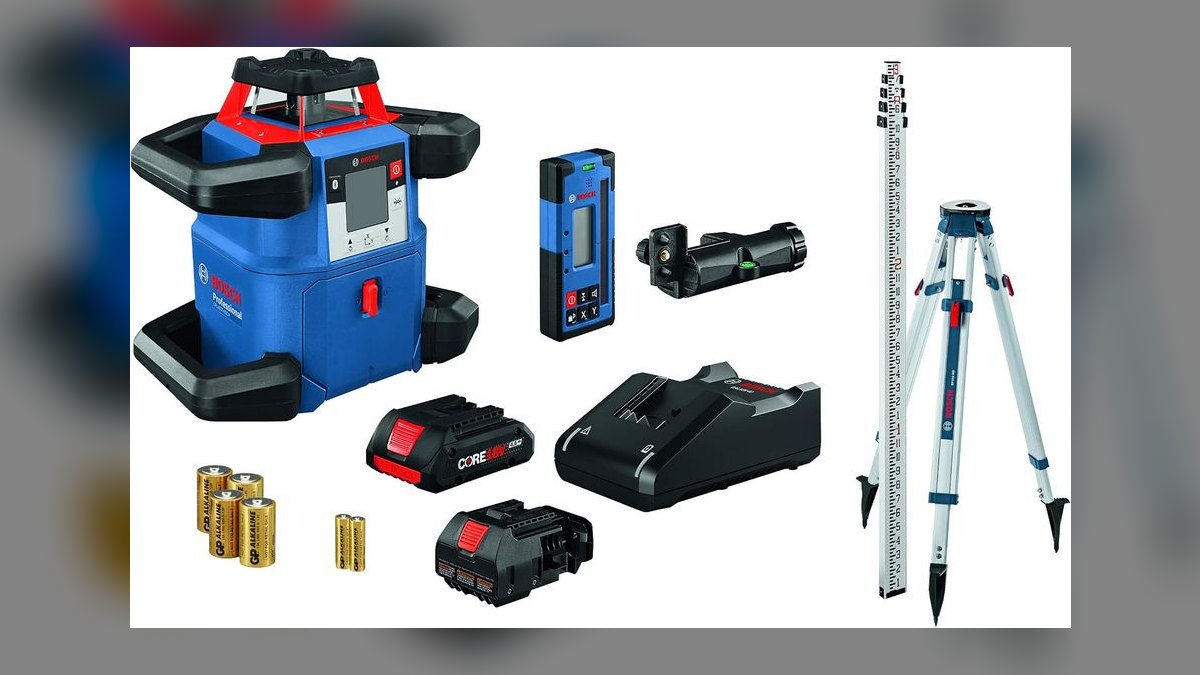

2. Bosch GRL4000-90CHVGK REVOLVE4000

It lands second because it is the most capable tool here without Leica pricing: $1,599 buys a green beam roughly 4X brighter than red, a 4,000 ft detector range, and plus or minus 1/16 in at 100 ft horizontal accuracy. It runs horizontal, vertical, and dual dial-in slope on both X and Y axes, self-levels electronically, and is built to an IP68 dust and water standard. Bluetooth adds app control and uCAL user calibration.

This suits pros who grade two-axis slopes and also need beam visibility for interior layout, especially crews already on Bosch 18V CORE batteries. It trades away simplicity and money: it is heavier and more complex than a horizontal-only laser, and costs more than double the Topcon RL-H5A above. The Leica Rugby 680 below grades steeper slopes but drops back to a red beam.

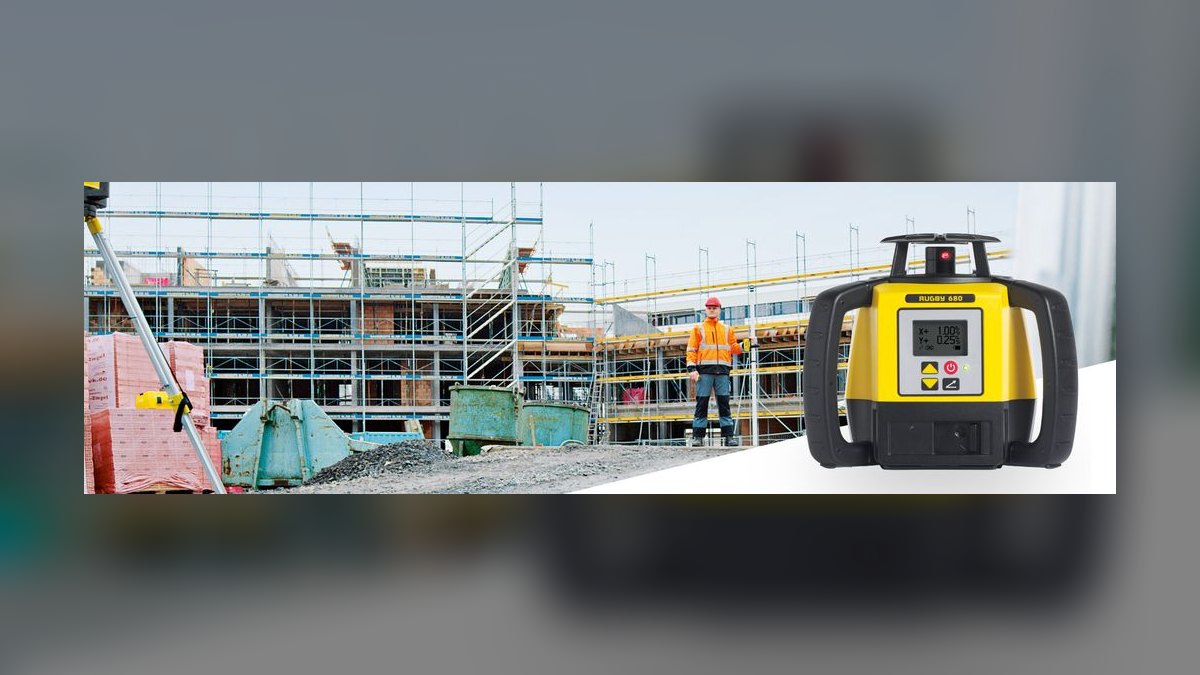

3. Leica Rugby 680

It ranks third because its slope range beats everything else here: dual-axis dial-in grade up to 8 percent, well past the 5 percent ceiling on most rivals, at $2,200. Accuracy is plus or minus 1/16 in at 100 ft, working diameter reaches 2,600 ft with the Rod Eye 140 and up to 4,300 ft with extended-range detectors. The Li-Ion pack runs up to 40 hours, and the IP67 housing handles heavy civil sites.

This is for earthwork and civil crews cutting driveways, drainage runs, and ramps where steep deliberate grade is the whole job. It trades away price and beam visibility: it is the most expensive pick on this list, and the red Class 2 beam means daylight work depends entirely on the receiver. Smart Slope compensates for time and temperature drift, which the Bosch REVOLVE4000 above does not offer.

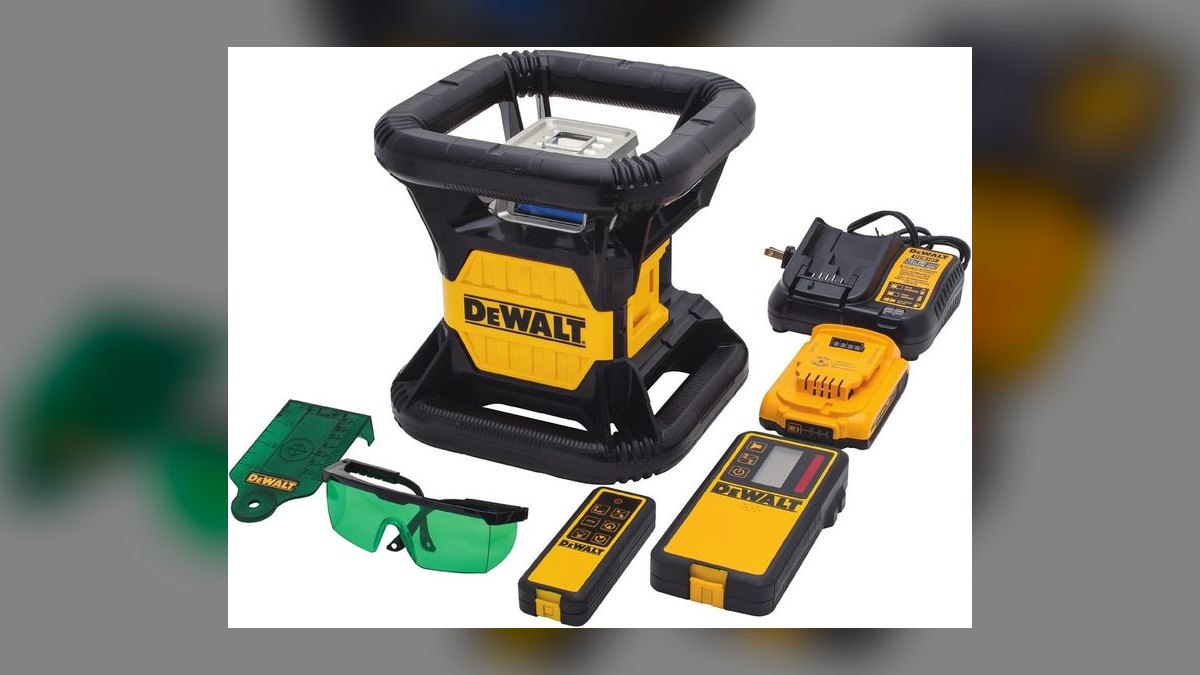

4. DEWALT DW079LG

It ranks fourth because it brings green visibility and dual-axis slope to the 20V MAX batteries most crews already carry, at $1,099. It self-levels within plus or minus 5 degrees, runs horizontal, vertical, and dual-axis slope modes, and offers selectable 15/45/90 degree scan angles to concentrate brightness indoors. Indoor eye range is about 250 ft at plus or minus 1/8 in at 100 ft, and it is drop-tested to an IP67 rating.

This fits interior and light-exterior crews standardized on DEWALT cordless who want one battery across the truck. It trades away unaided range and accuracy: 250 ft to the eye is far short of the survey-grade reds, and 1/8 in at 100 ft trails the Topcon RL-H5A and Bosch REVOLVE4000 above. Up and down plumb spots make point transfer faster than the Spectra LL300N below.

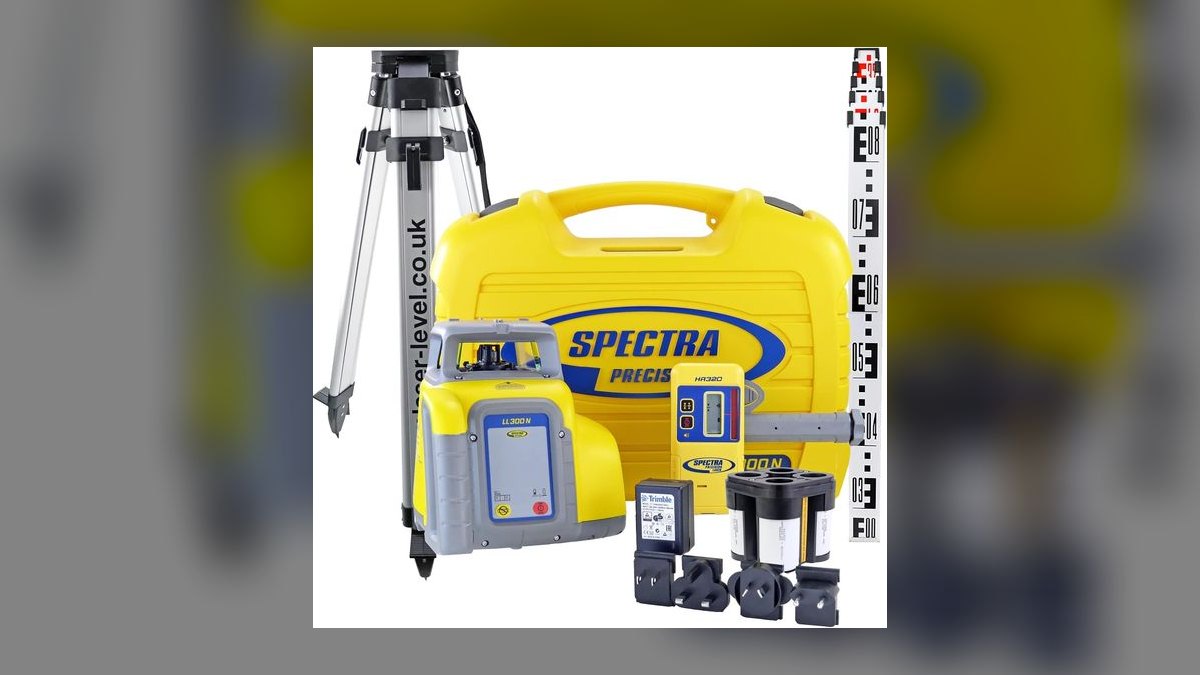

5. Spectra Precision LL300N

It ranks fifth on the strength of its receiver: the included HL450 shows elevation as a digital number with a 4-inch capture window and dual accuracy settings, which makes cut and fill measurably faster than reading a beep. The laser itself is a $1,030 horizontal self-leveling red rotary with a 1,600 ft working diameter and plus or minus 3/32 in per 100 ft accuracy. The metal-and-rubber housing survives drops and weather.

This suits semipro grading crews who spend their day chasing elevations and want numbers rather than tones. It trades away slope capability and range: grade is manual on a single axis, so it will not dial a two-axis pad, and 1,600 ft is well short of the Topcon RL-H5A's 2,600 ft. The DEWALT DW079LG above offers dual-axis slope but no digital-readout receiver.

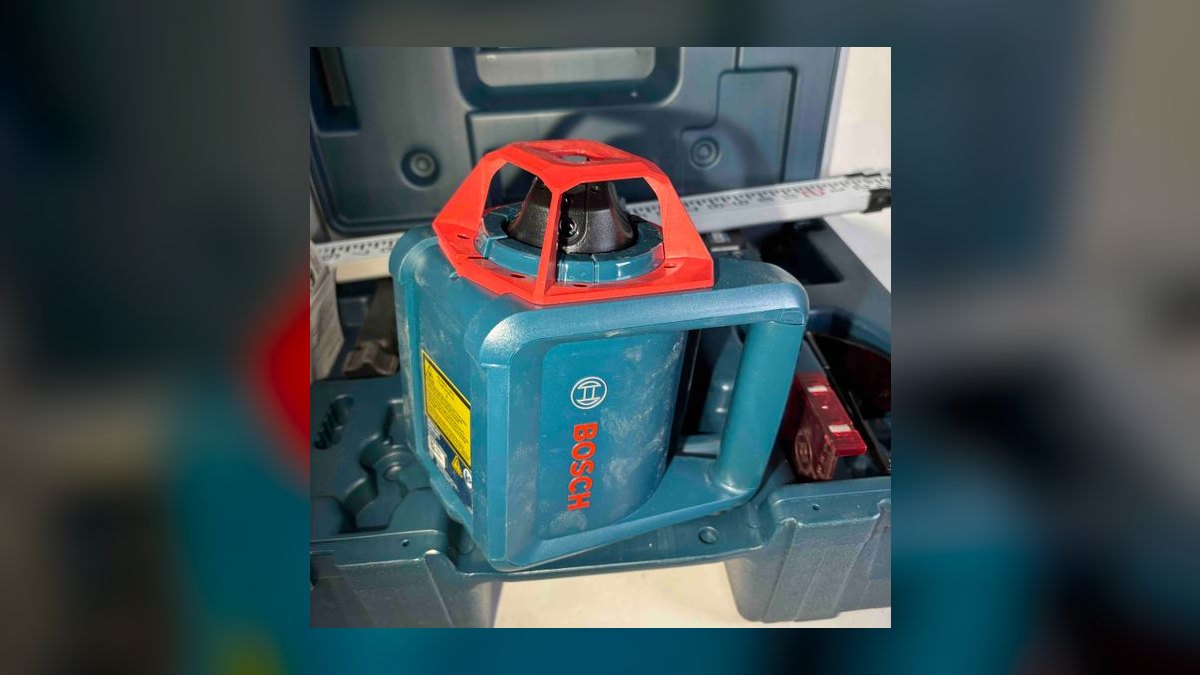

6. Bosch GRL800-20HVK

It ranks sixth on kit completeness for the money: $399 buys a horizontal and vertical rotary with an 800 ft working diameter, plus or minus 3/16 in at 100 ft accuracy, and a box holding the laser receiver, tripod, grade rod, wall mount, glasses, target card, and hard case. It self-levels electronically, projects a vertical beam plus a 90 degree point for squaring, and a disturbance monitor warns you if the tool gets bumped.

This fits general contractors doing interior layout and short-run exterior work who do not want to buy a tripod and rod separately. It trades away precision and grading: 3/16 in at 100 ft is the loosest accuracy among the pro picks, and there is no dial-in slope at all. The Huepar RL200HVG below costs $30 more and adds remote dual-axis slope plus a green beam.

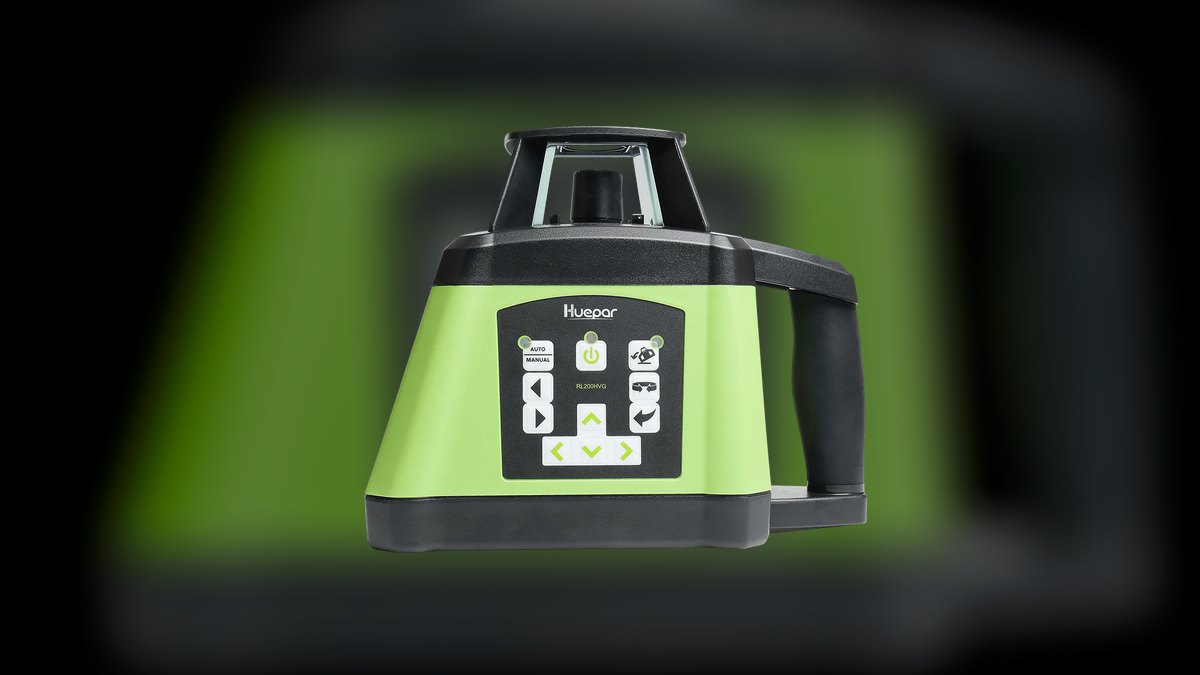

7. Huepar RL200HVG

It ranks seventh because it delivers electronic dual-slope on both X and Y axes up to 5 degrees through a remote for $430, a feature normally locked behind four-figure tools. It runs horizontal and vertical with up and down plumb dots, throws a green beam, and reaches a 2,624 ft working diameter with the included detector at plus or minus 1/8 in at 100 ft. The receiver and remote both ship in the box.

This is for budget-conscious contractors who genuinely need to grade two axes and cannot justify the Leica Rugby 680 or Bosch REVOLVE4000. It trades away service backing and precision: brand longevity and the calibration network trail Bosch and Leica, and 1/8 in at 100 ft is good rather than survey-grade. The Bosch GRL800-20HVK above is better supported but cannot dial a slope.

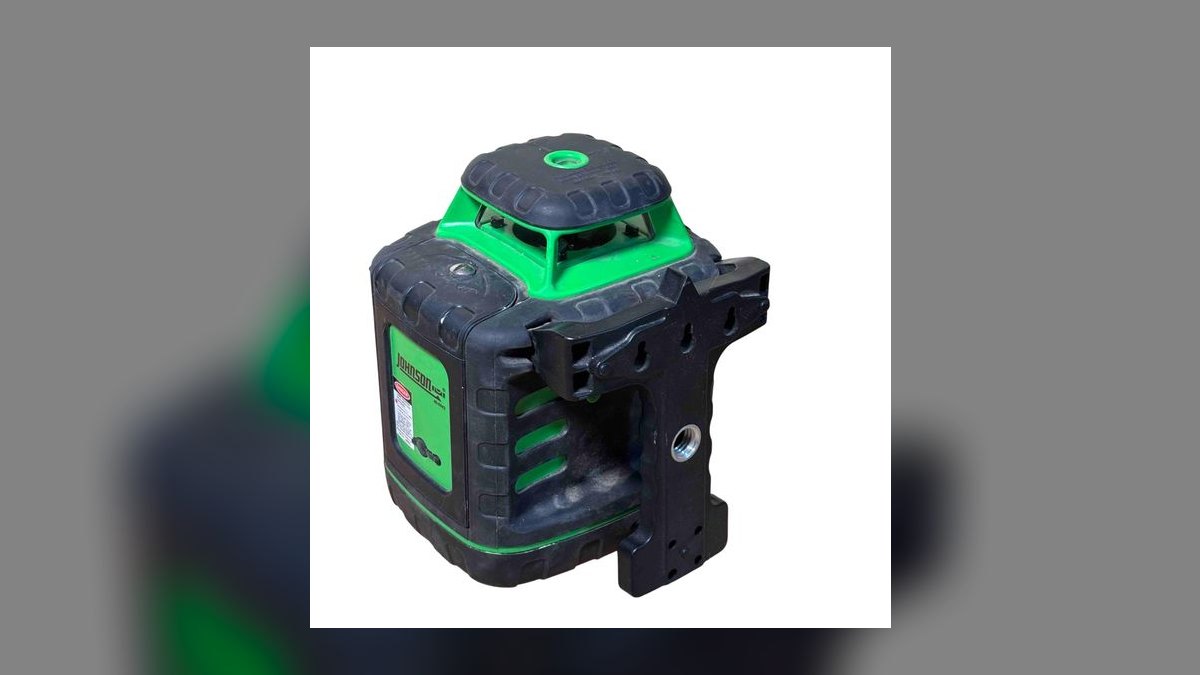

8. Johnson Level 40-6543

It ranks eighth on beam brightness and kit value at $700: GreenBrite technology produces a beam roughly 400 percent brighter than red, which makes it usable by eye in lit interiors where red disappears. It is horizontal self-leveling with a split beam establishing a clean 90 degree reference for squaring. The kit includes a remote, wall and ceiling mount, NiMH rechargeable pack, alkaline backup tray, charger, tinted glasses, magnetic target, and hard case.

This suits layout-heavy interior work — drop ceilings, cabinets, partition walls — where you read the beam directly instead of chasing a detector. It trades away automation and grading: the vertical plane levels manually, not automatically, and there is no dial-in dual-axis slope. The Huepar RL200HVG above costs $270 less and adds remote dual-slope, though Johnson's power options and mounts are more complete.

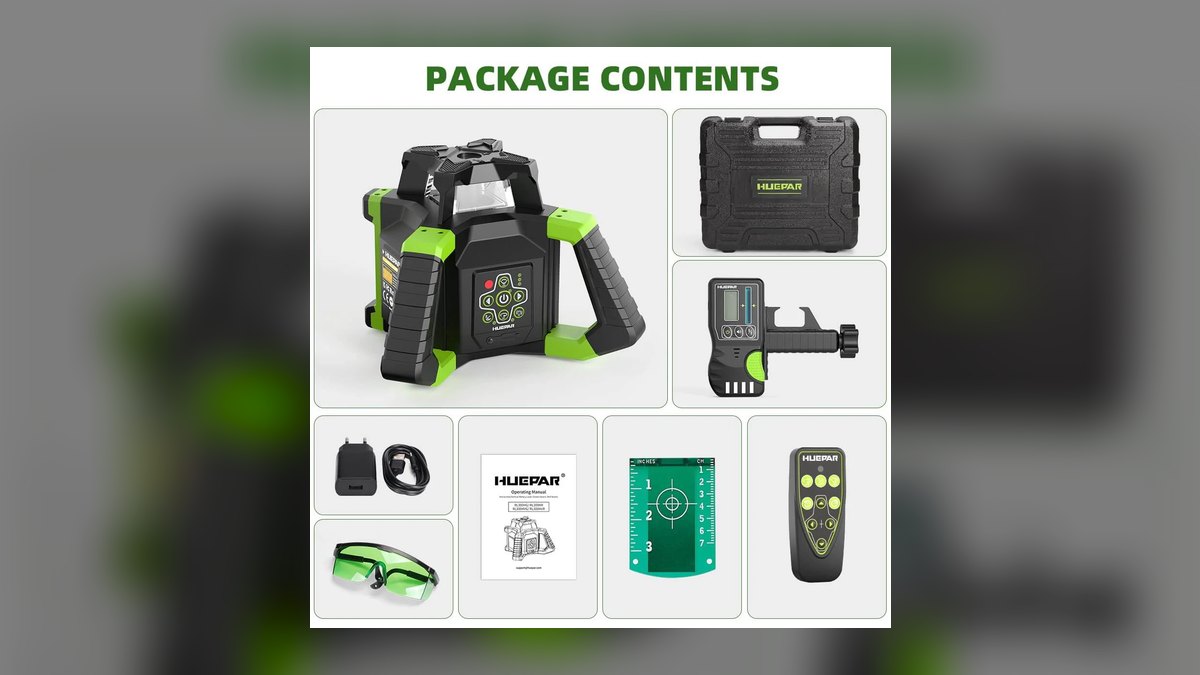

9. Huepar RL300HVG

It ranks ninth overall but wins Best Value on dollars-per-foot: $330 buys a green-beam horizontal and vertical rotary with a 2,624 ft working diameter using the included detector and plus or minus 1/8 in at 100 ft accuracy. It self-levels electronically, supports slope modes for basic grading, and ships with the receiver, glasses, and hard case, so it grades outdoors the day it arrives. No other pick here approaches that range per dollar.

This is for buyers who need real detector range without a four-figure invoice — deck builders, landscapers, and serious DIYers. It trades away durability and support: it lacks the IP66 to IP68 sealing of the Topcon RL-H5A and Bosch picks, and the calibration network is limited. Compared with the Huepar RL200HVG above, it drops remote dual-axis slope to save $100.

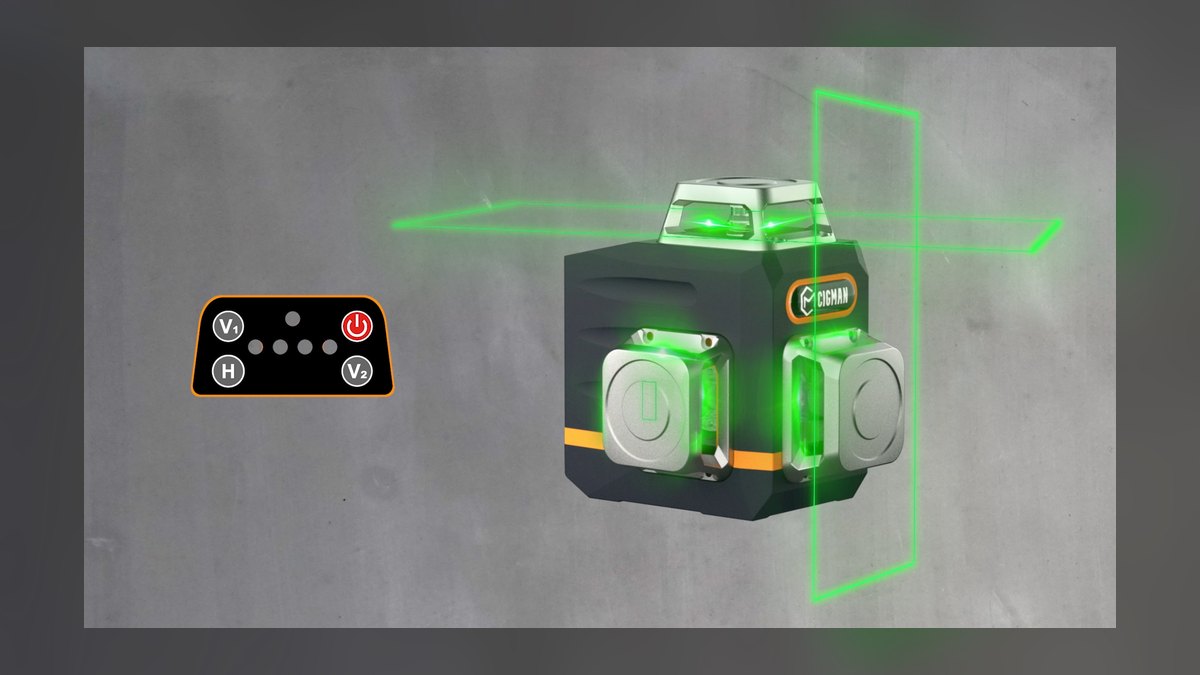

10. CIGMAN CM-801

It ranks tenth because it is an interior tool rather than a grading tool, but at $130 it is the cheapest self-leveling green rotary here by a wide margin. It levels within about plus or minus 4 degrees, and the green beam runs roughly 4X brighter than red for eye visibility out to about 100 ft indoors. The kit includes a magnetic L-bracket, remote, and dual rechargeable batteries, with an IP54 splash rating.

This is for DIYers and remodelers setting tile lines, cabinets, drop ceilings, and chair rails where no detector is needed. It trades away everything outdoor: roughly 100 ft of usable range with no long-throw detector, and IP54 sealing that is not built for dust or weather on an open site. The Huepar RL300HVG above costs $200 more and multiplies usable range by more than twenty.

How we ranked these

We scored ten rotary lasers on published specifications, hands-on review reporting, and contractor forum feedback. Range and accuracy carried the most weight at 25 percent, followed by beam visibility and detector quality at 20 percent. Grade and dual-axis slope capability took 15 percent, as did self-leveling behavior and IP durability, and mounting and battery life. Price-to-performance closed the rubric at 10 percent.

We deliberately ignored unaided eye range as a headline number, because no rotary beam survives a sunny site without a detector. We ignored beam color as a ranking factor for outdoor work for the same reason. Amazon star averages, bundled freebies, and marketing claims about brightness multiples were set aside unless a spec sheet or tested review backed them with a measurable figure.

What to look for

Start with the job, not the brand. If you are setting elevations and leveling, a horizontal self-leveling laser like the Topcon RL-H5A at $615 is enough. If you are cutting a driveway, drain, or ramp, you need dial-in slope on two axes, which means the Leica Rugby 680, the Bosch REVOLVE4000, or the budget Huepar RL200HVG at $430. Decide that first; everything else is secondary.

The common mistake is paying for a green beam to solve an outdoor problem. Green reads roughly four times brighter to the eye, which helps indoors, but outdoors you read the beam with a detector regardless of color. The spec that decides your day is working diameter with the receiver, plus an IP66 or better housing. Buyers also skip the tripod and grade rod, then buy them twice.

Related questions

What is the difference between a rotary laser and a line laser?

A line laser projects fixed lines onto walls for interior layout, usually under 100 feet. A rotary spins a single dot into a continuous 360 degree plane, and pairs with a detector that reads the beam far past what your eye can see. That is why rotaries reach 2,600 feet outdoors while line lasers stay indoors.

How far can a rotary laser level actually reach outdoors?

With the naked eye, maybe 100 to 250 feet, and only in dim conditions. With a receiver, the Topcon RL-H5A covers a 2,600 foot working diameter and the Bosch REVOLVE4000 reaches 4,000 feet. Always read the working diameter spec with the detector, since that is the number that governs real jobsite range.

Can a rotary laser level grade a driveway slope?

Yes, if it has dial-in slope. The Leica Rugby 680 sets grade on two axes up to 8 percent, the Bosch REVOLVE4000 offers dual dial-in slope, and the Huepar RL200HVG does electronic dual-slope to 5 degrees by remote. A horizontal-only tool such as the Spectra LL300N handles single-axis manual grade only.

Do rotary laser levels need calibration?

Yes. Bumps, truck rides, and temperature swings drift a laser out of spec, so check it against a known benchmark periodically. The Bosch REVOLVE4000 includes uCAL onboard user calibration, and Leica backs the Rugby 680 with lifetime PROTECT service. Budget tools generally require shipping the unit out, which is worth pricing before you buy.

What tripod and grade rod do I need with a rotary laser?

An elevating tripod with a 5/8 by 11 thread is standard, paired with a grade rod that carries the receiver clamp. The Bosch GRL800-20HVK ships with both, which is part of its value at $399. Buying a tripod and rod separately typically adds $120 to $250, so check kit contents before comparing prices.

Is a red-beam rotary laser obsolete in 2027?

No. Every survey-grade laser here that reaches past 2,600 feet — the Topcon RL-H5A, the Leica Rugby 680, the Spectra LL300N — uses red. Outdoors you read the beam with a receiver, so color is irrelevant to range. Red also draws less power, which is how the RL-H5A runs about 100 hours on D-cells.

What does IP66 mean on a jobsite laser?

The first digit rates dust, the second water. IP66 means dust-tight and resistant to powerful water jets, which covers open dirt sites and rain. IP67 and IP68, on the Leica Rugby 680 and Bosch REVOLVE4000, add immersion resistance. IP54 on the CIGMAN CM-801 is splash-only and belongs indoors.

FAQ

Do I need a detector for a rotary laser level?

For outdoor or long-range work, yes. No rotary beam, red or green, stays visible by eye across a bright open site, so the receiver is what reads the plane and delivers usable range out to 2,600 feet or more. Indoors at short distance you can usually work directly to the beam without one.

Is a green beam worth the extra money?

Green reads roughly four times brighter to the eye and clearly wins for interior layout in lit rooms. Outdoors the advantage mostly disappears, because you use a detector either way. Treat green as a comfort upgrade for indoor work, not a range upgrade, and do not pay a four-figure premium if you mostly grade.

What is dual-grade or dual-slope, and do I need it?

Dual-grade lets you dial a deliberate slope on two axes at once, which is what driveways, drainage runs, ramps, and pads require. The Leica Rugby 680 goes to 8 percent, the Huepar RL200HVG to 5 degrees. If you only level floors and set elevations, a horizontal tool like the Topcon RL-H5A is plenty.

How accurate does a rotary laser need to be?

For grading and elevation work, target plus or minus 1/16 inch at 100 feet, which the Topcon RL-H5A, Bosch REVOLVE4000, and Leica Rugby 680 all hold. General interior layout is fine at plus or minus 1/8 inch. Tighter accuracy matters most over long distances, where a small angular error compounds into inches.

What IP rating should I look for outdoors?

Look for IP66 or better on dusty, wet jobsites. The Topcon RL-H5A is IP66, the Leica Rugby 680 and DEWALT DW079LG are IP67, and the Bosch REVOLVE4000 is IP68. An IP54 splash rating, like the CIGMAN CM-801 carries, is an interior spec and will not survive open grading work.

Can I use one rotary laser for both interior and exterior work?

Yes. A horizontal and vertical self-leveling rotary with an included detector covers both, and the Bosch GRL800-20HVK at $399 is the clearest example: 800 foot working diameter, vertical beam, 90 degree point, and a full kit. If your outdoor work runs longer than that, step up to the Huepar RL300HVG for 2,624 feet.

How long do rotary laser batteries last on a jobsite?

It depends on the power source. The Topcon RL-H5A runs about 100 hours on alkaline D-cells, which is why crews keep it on site for weeks. The Leica Rugby 680 delivers up to 40 hours per Li-Ion charge. Platform tools like the DEWALT DW079LG trade runtime for batteries you already own.

What is the cheapest rotary laser actually worth buying?

The Huepar RL300HVG at $330 is the cheapest tool here that still does real outdoor work, thanks to a 2,624 foot detector range and an included receiver. Below that, the CIGMAN CM-801 at $130 is an interior tool only. If you need to grade outside, $330 is roughly the honest floor.

Why is the Topcon RL-H5A best overall over pricier options?

Because it wins the jobs most buyers actually have. At $615 it delivers plus or minus 1/16 inch at 100 feet, a 2,600 foot detector range, IP66 sealing, and roughly 100 hours of runtime. The pricier Leica and Bosch units add dual-axis slope and green beam, which matter only if you grade two directions.
