Top 10 Dovetail Jigs — Best Overall + Best Value in 2027

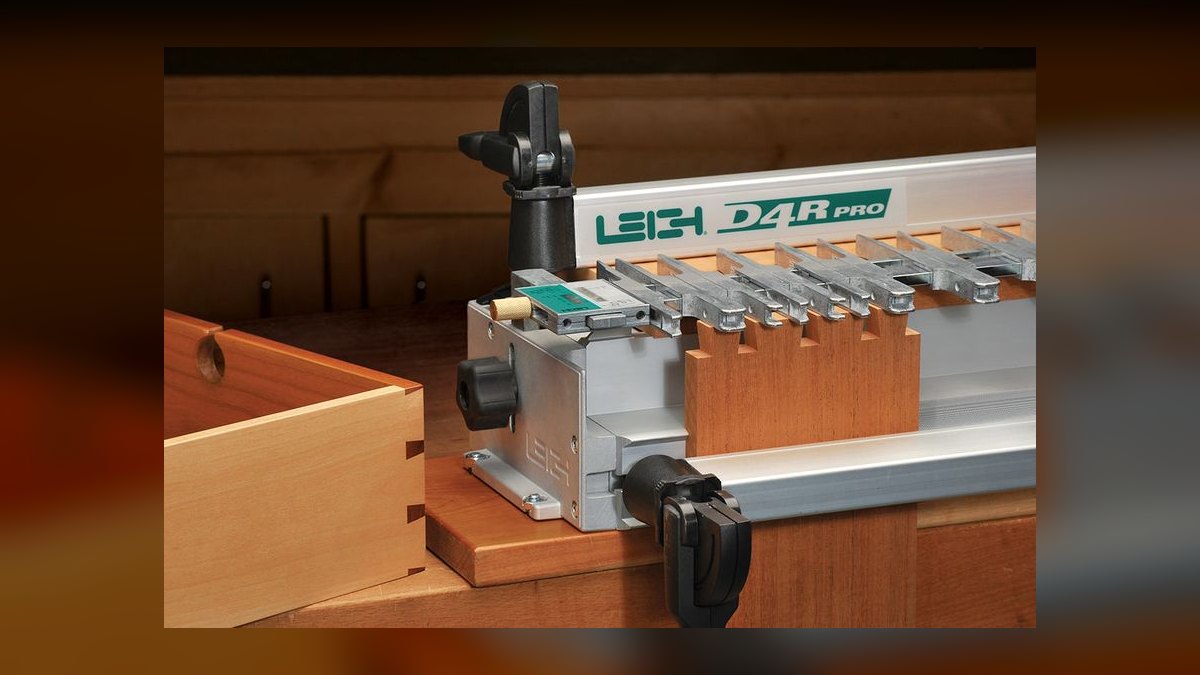

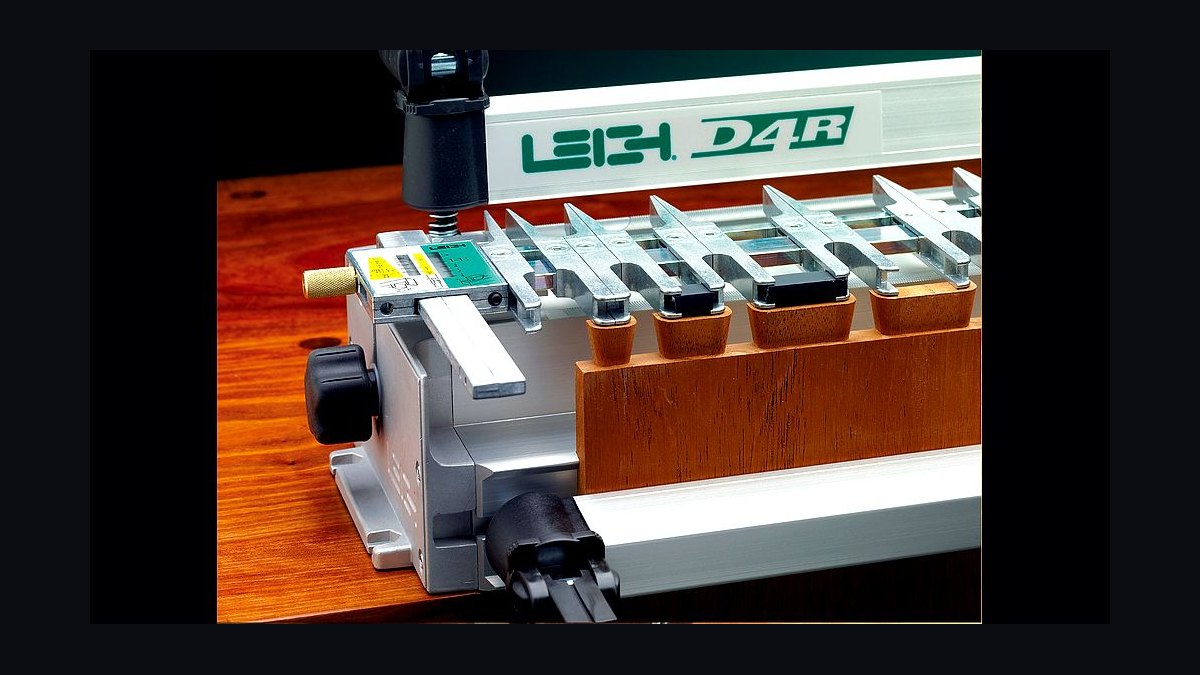

1. Leigh D4R Pro

It ranks first because no other jig combines fully variable spacing with this joint range: through dovetails, half-blind dovetails, sliding dovetails, and box joints on boards up to 24 inches wide, at $799. Reversible guide fingers and the e-Bushing system let you dial joint fit precisely rather than accepting a template's fixed result. Cast support brackets hold wide stock flat. Leigh's manual is the best written in the category.

This is for furniture makers and cabinet shops cutting joinery as a visible design element, where pin and tail placement matters. What it trades away is money and time — $799 buys a real learning curve, and setup takes longer than any fixed-template jig here. The Leigh Super 12 at $399 offers the same adjustability philosophy but caps at 12 inches and drops sliding dovetails, making the D4R Pro the choice when board width matters.

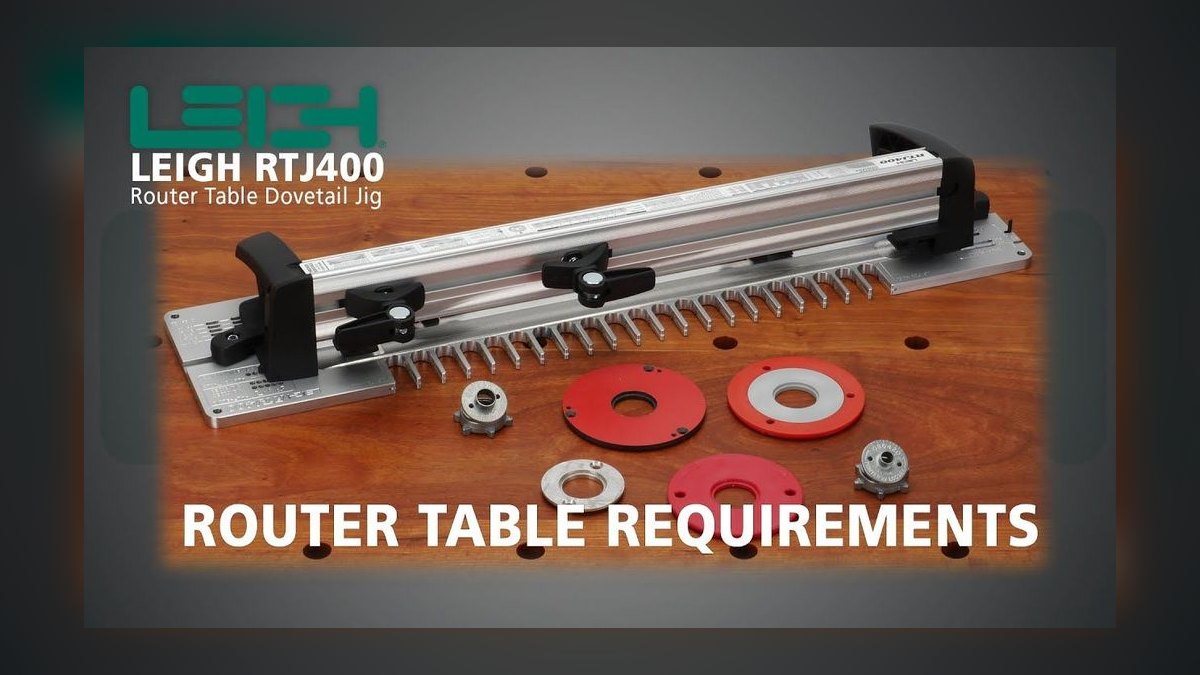

2. Leigh RTJ400

It ranks second because it delivers genuine Leigh variable spacing for $199 — roughly a quarter of the D4R Pro's price. It cuts 9 sizes of through dovetails, 3 sizes of half-blind dovetails, and 4 box joint sizes on stock up to about 16 inches wide. The aluminum build is solid, and running work over a table-mounted bit is steadier than balancing a router on a board edge.

This suits woodworkers who already own a router table with a lift and want custom pin spacing without the flagship outlay. The tradeoff is the router table itself: without one, add several hundred dollars before this jig cuts anything. Capacity also drops from the D4R Pro's 24 inches to about 16, and there are no sliding dovetails. For table-based shops, it is the cheapest route to variable spacing.

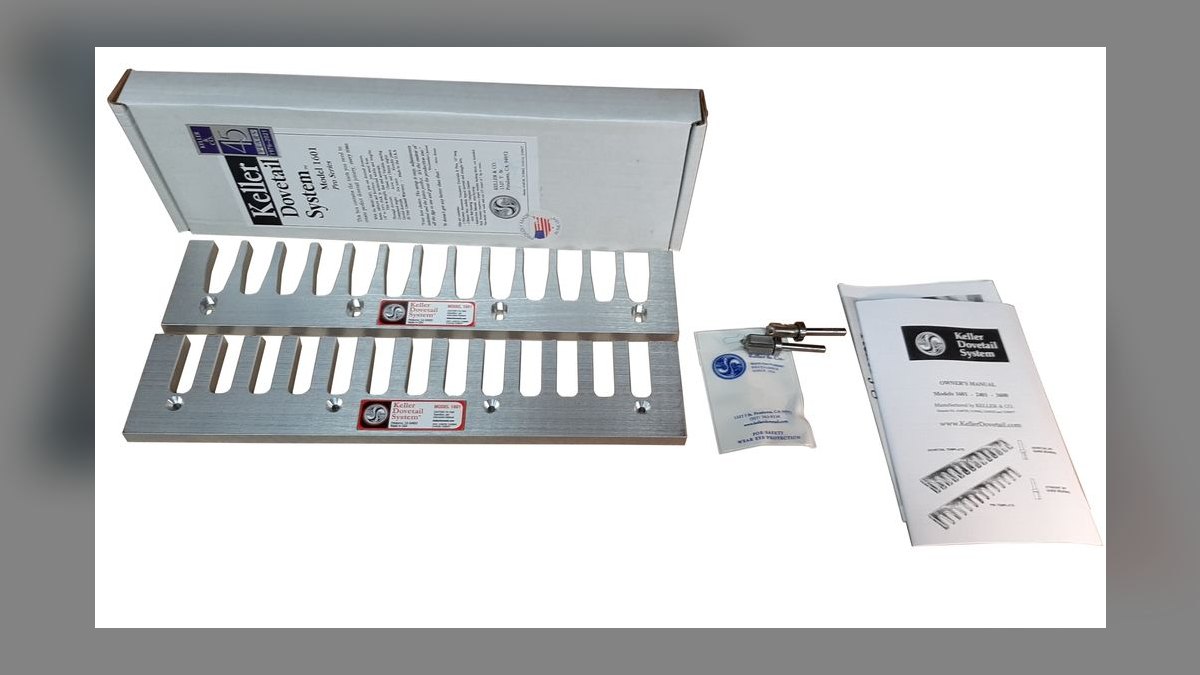

3. Keller 1601 Pro

It ranks third on speed and repeatability: fixed-spacing aluminum templates index across boards of effectively unlimited width, so a 30-inch case side is just a repeated setup. At $259 there are no test cuts and no adjustment fiddling — the two-template pin-and-tail system produces the same joint every time. Carbide bits and guide bushings are included, and Keller backs the templates with a lifetime warranty.

Production shops cutting many through dovetails at consistent thickness get the most from it. The tradeoff is narrow scope: it cuts no half-blind dovetails at all, so drawer fronts need a second jig or a different design. Fixed spacing also rules out custom layouts that the $199 Leigh RTJ400 handles. Buy this for width and throughput, not versatility.

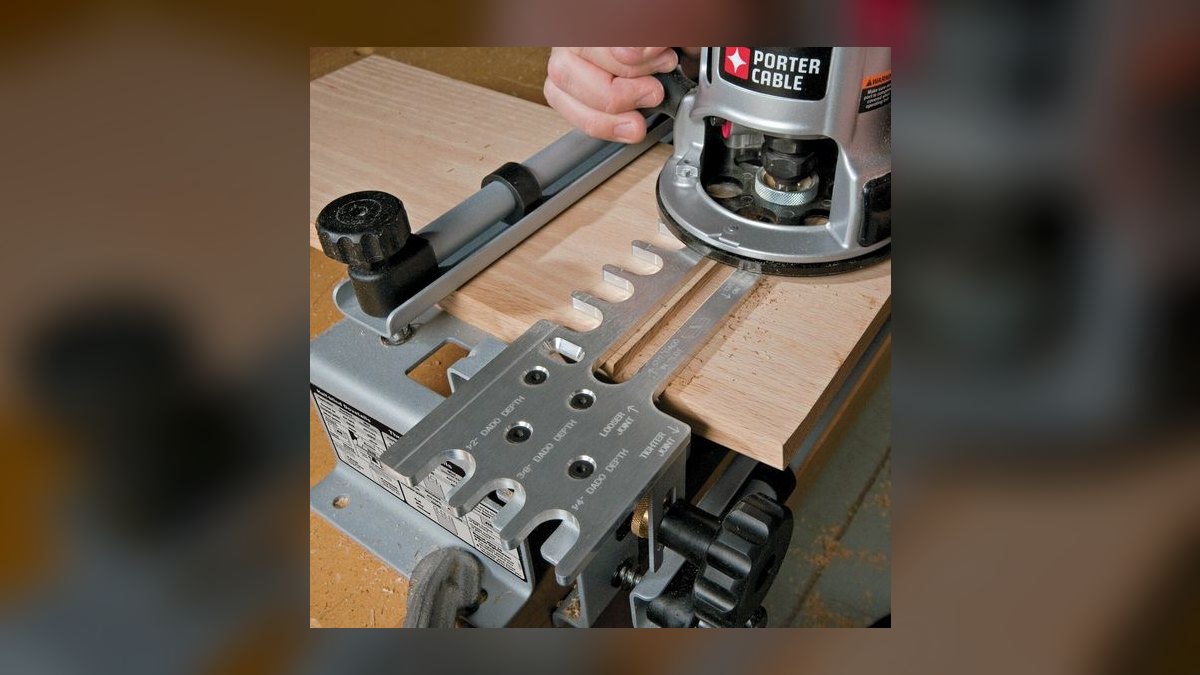

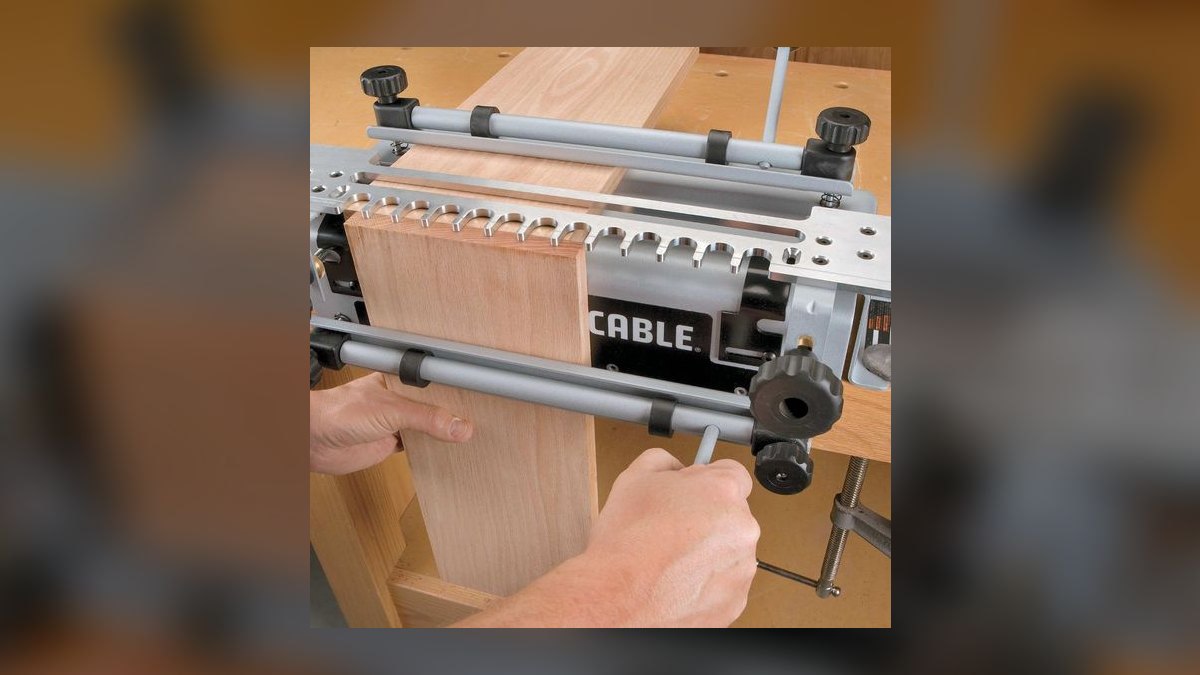

4. Porter-Cable 4216

It ranks fourth as the broadest fixed-template kit at $209. Three aluminum templates cover half-blind and sliding dovetails, through dovetails and box joints, and miniature dovetails and box joints, on stock 12 inches wide and 1/4 to 1-1/8 inches thick. The single-piece steel base needs no assembly, and cam clamps with sandpaper-backed bars grip firmly. Four router bits, four template guides, lock nuts, and a wrench ship in the box.

This fits hobbyists whose projects mix joinery styles and who would rather swap templates than own several jigs. What it gives up is spacing freedom and time — template changes are not quick, and every joint lands on preset centers. Against the Keller 1601 Pro it covers far more joint types but caps at 12 inches instead of indexing to unlimited width.

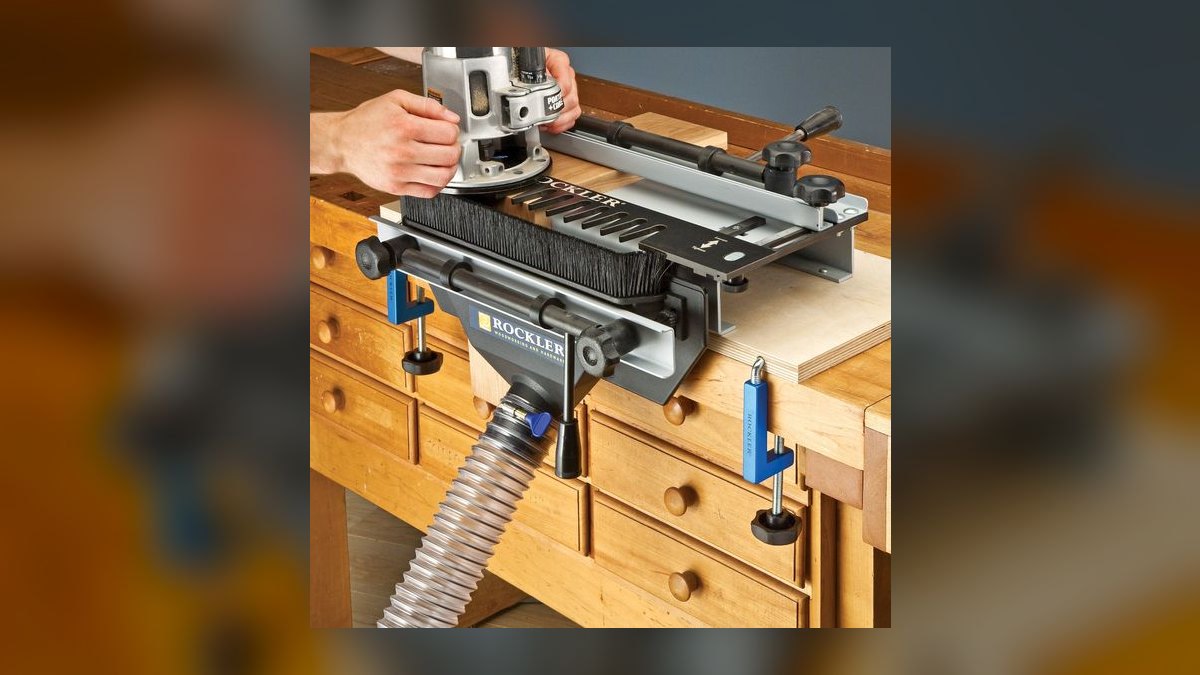

5. Rockler Complete Dovetail Jig

It ranks fifth as the most beginner-friendly complete kit at $240. It cuts half-blind dovetails in stock 1/2 to 1-1/8 inches thick and through dovetails 3/8 to 3/4 inch thick, on boards up to 11 inches wide, and includes two templates plus three carbide-tipped router bits. The built-in dust-collection port matters more than it sounds: keeping the cut line visible prevents most first-timer mistakes.

Newcomers who want one box that covers both common dovetail types should start here. The tradeoffs are capacity and price — 11 inches is the narrowest ceiling on this list, and $240 is more than the Porter-Cable 4216 asks for wider stock and three templates. Choose the Rockler for the dust hood and gentler setup; choose the 4216 for joint variety and 12-inch capacity.

6. Porter-Cable 4210

It ranks sixth because $159 buys the same rugged steel base and cam-clamp system as the 4216 with one CNC-machined aluminum template instead of three. That template cuts half-blind dovetails, dovetail dadoes, box joints, and miniature dovetails on stock up to 12 inches wide. Half-blind joints are the drawer workhorse, and this produces them repeatably without the $50 premium for templates you may rarely mount.

Drawer-heavy shops and cabinet builders are the real audience. What it drops is through dovetails entirely, so visible box corners and case sides need another solution. Compared with the 4216 directly above, you save $50 and lose two templates; compared with the $92 WoodRiver below, you gain box joints, dadoes, and a heavier base for the extra money.

7. General Tools 861 EZ Pro Dovetailer 2

It ranks seventh because $110 covers half-blind dovetails, through dovetails, and box joints in a single aluminum jig — joint variety no other pick under $130 matches. It handles stock up to 12 inches wide with either a handheld or table-mounted router, includes a 1/2-inch dovetail bit, and uses integrated clamps so setup is quick. The small footprint suits benches with limited clamping space.

Occasional builders who want to try several joint types without committing $200 are the fit. It trades away mass and documentation: construction is lighter than the Porter-Cable units, and the terse manual demands patience on the first setup. Against the 4210 above, it adds through dovetails but gives up the heavy steel base and clearer instructions that make repeat setups fast.

8. WoodRiver 12-1/2" Deluxe Dovetail Jig

It ranks eighth on rank but first on value: $92 buys accurate half-blind dovetails on material up to 12-1/2 inches wide and 1/2 to 1 inch thick. A CNC-machined steel template mounts on a rigid steel body with molded resin end caps — steel rather than the stamped parts common at this price. Sawmill Creek users consistently report joint accuracy that outperforms the cost by a wide margin.

First-time dovetailers and drawer builders get the most here. The tradeoffs are real: fixed spacing only, half-blind focus, and the through-dovetail template is a separate purchase that erodes the price advantage. Against the General Tools 861 above, you lose through dovetails and box joints but gain a stiffer steel body and simpler, more forgiving setup for the joint most people actually cut.

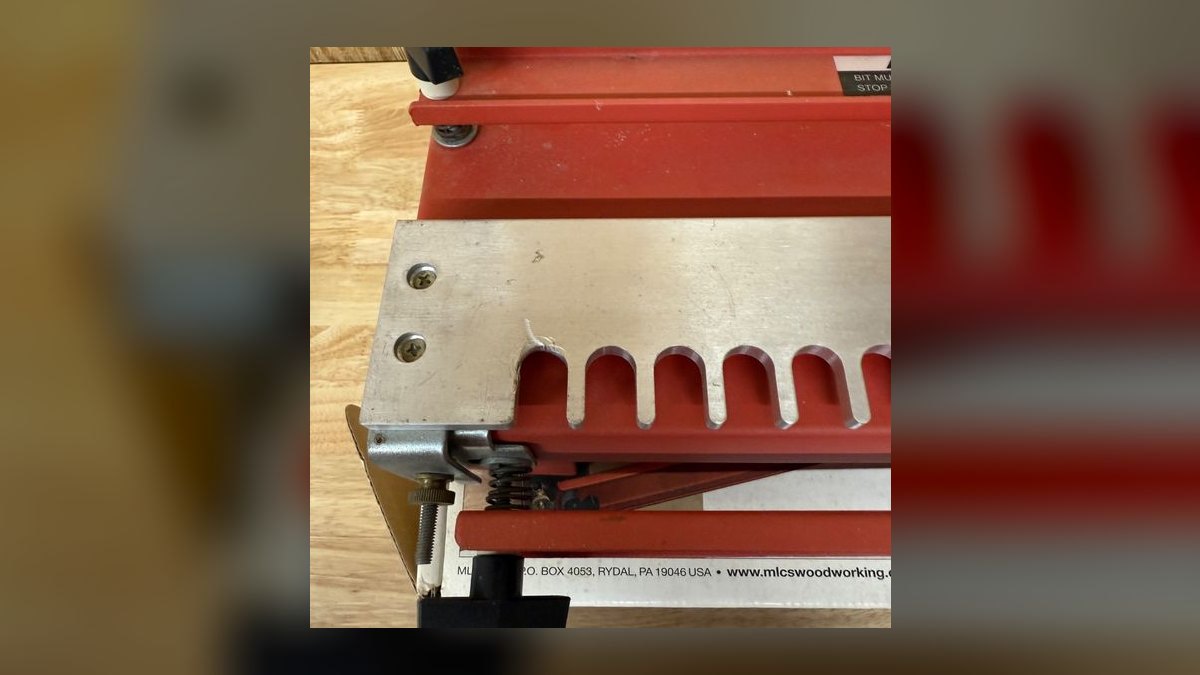

9. MLCS Pins and Tails Templates

It ranks ninth because $130 buys CNC-machined solid-aluminum templates and a matched bushing and bit set that produce through dovetails resembling hand-cut work. It handles drawer sides 1/2 to 1 inch thick and fronts up to 12 inches wide, with steel beams clamping both workpieces at once. A 14-degree dovetail bit is included, and the system comes in large and small dovetail versions.

Budget builders who want the hand-cut look on visible box and drawer-front corners should consider it. The limits are strict: through dovetails only, no half-blind capability, and a 12-inch width ceiling. Against the Keller 1601 Pro, it costs $129 less and looks more hand-cut, but Keller indexes to unlimited width and cuts faster in production runs.

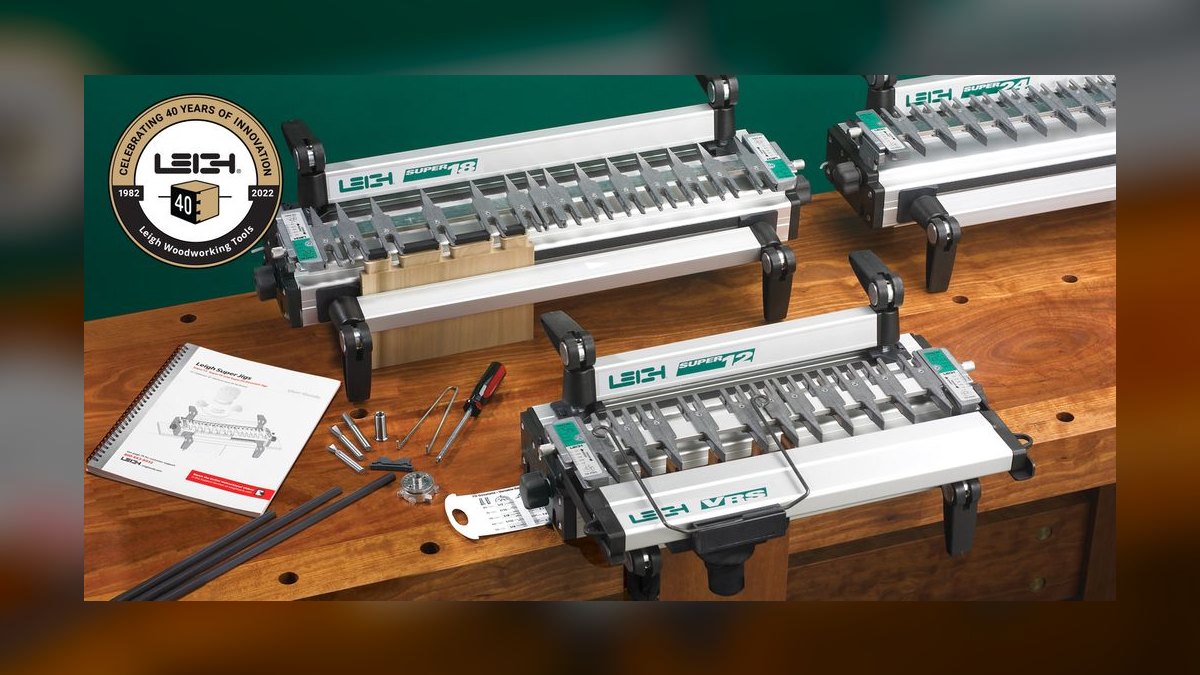

10. Leigh Super 12 Dovetail Jig

It ranks tenth because its $399 price sits well above every fixed-template jig here while capacity stops at 12 inches. What that money buys is genuine variable spacing — adjustable guide fingers for through and half-blind dovetails laid out wherever you want them — plus three router bits and Leigh's fit-adjustment approach. An optional accessory kit extends the joint range if projects grow.

Small shops that want custom pin and tail layouts but never cut wide panels are the audience. The tradeoff is stark on price: the Porter-Cable 4216 covers more joint types for $209, and the RTJ400 delivers variable spacing for $199 if you own a router table. Choose the Super 12 only if handheld-router variable spacing without a table is the requirement.

How we ranked these

We scored ten jigs on the joints they actually cut — through, half-blind, sliding dovetails, box joints — weighted at 25%, then spacing flexibility at 20%, maximum board width at 15%, setup and repeatability at 15%, build quality plus included bits and bushings at 15%, and price-to-performance at 10%. Pricing reflects typical 2027 US street prices from Woodcraft, Rockler, Acme Tools, and Amazon, cross-checked against Leigh, Porter-Cable, Keller, and MLCS spec sheets.

We deliberately ignored brand heritage, dust-port marketing claims, and unboxing polish, because none of them changes joint fit. We also declined to reward variable spacing on principle alone — it carries a real learning curve, and fixed-template jigs cut strong, attractive joints for decades. Bundled bit counts were weighted by quality, not quantity. Forum sentiment from LumberJocks and Sawmill Creek informed durability notes but never overrode measured capacity and spec differences.

What to look for

Start with the joint, not the jig. If you build drawers, half-blind dovetails are the workhorse and a $92 WoodRiver Deluxe cuts them accurately up to 12-1/2 inches. If you build boxes and casework where end grain shows, through dovetails matter and the Keller 1601 Pro indexes to unlimited width with no test cuts. Board capacity is the second filter: most budget jigs stop near 12 inches, the Leigh D4R Pro reaches 24.

The common mistake is buying variable spacing you will never use. A $799 D4R Pro is genuinely the reference standard, but its adjustable guide fingers only pay off if you lay out pins and tails by eye. Buyers who cut the same drawer joint repeatedly get faster, cleaner results from a fixed template. The second mistake: budgeting for the jig and forgetting the dovetail bit and guide bushing, which some jigs assume you already own.

Related questions

What is the difference between a half-blind and a through dovetail?

A half-blind dovetail hides the joint from the front face, which is why it is standard on drawer fronts where you want a clean, unbroken surface. A through dovetail shows end grain on both faces and is used on boxes, blanket chests, and case sides where the joinery is meant to be seen. Many jigs specialize in one or the other.

Can a dovetail jig cut box joints as well?

Yes, several here do. The Leigh D4R Pro and RTJ400, the Porter-Cable 4216 and 4210, and the General Tools 861 all cut box joints alongside dovetails. If your projects mix joinery styles — drawers, boxes, and utility casework — a combo kit saves you from buying a separate box-joint jig later. Confirm the finger widths available before committing.

Do I need a router table to use a dovetail jig?

Most jigs here are handheld-router jigs: the jig clamps the workpiece and you run the router over the template. The Leigh RTJ400 is the exception — it is built for a router table, where the work rides over a table-mounted bit. Beginners often find the table workflow steadier than balancing a router on a narrow board edge.

How wide a board can these jigs handle?

Capacity varies widely. The Leigh D4R Pro reaches 24 inches. The Keller 1601 Pro uses fixed templates you index and repeat, so board width is effectively unlimited. Porter-Cable's 4216 and 4210 handle 12 inches, the WoodRiver 12-1/2 inches, and the Rockler Complete tops out at 11 inches. Match capacity to your widest planned drawer side.

Are router bits and guide bushings included with these jigs?

Sometimes, but never assume. The Porter-Cable 4216 ships with four router bits and four template guides. The Rockler Complete includes two templates and three carbide-tipped bits. The MLCS Pins and Tails set includes a matched 14-degree dovetail bit. The Leigh D4R Pro includes guide bushings, but most owners add their own quality dovetail and straight bits.

Is variable spacing worth the extra cost?

Only if you will use it. Variable spacing lets you place pins and tails anywhere, producing the irregular look of hand-cut joinery — genuinely beautiful on show pieces. But it demands setup patience and test cuts. If you cut the same drawer joint over and over, a fixed template indexes and repeats in seconds and costs a fraction as much.

What thickness of stock do dovetail jigs accept?

Typical ranges run 1/4 to 1-1/8 inches. The Porter-Cable 4216 covers 1/4 to 1-1/8 inches. The Rockler Complete cuts half-blind dovetails in 1/2 to 1-1/8 inch stock and through dovetails in 3/8 to 3/4 inch stock. The MLCS system handles 1/2 to 1 inch drawer sides. Check the spec against your usual lumber.

Should I learn to cut dovetails by hand instead?

Hand-cutting gives you total freedom of layout and needs no jig, bit, or bushing — but the learning curve is long and consistency takes real practice. A jig delivers repeatable, tight joints from the first few test cuts. Many woodworkers do both: a jig for production drawer work, hand tools for one-off show pieces where the layout matters.

FAQ

Which dovetail jig is best overall in 2027?

The Leigh D4R Pro at $799. Nothing else combines variably spaced through and half-blind dovetails, sliding dovetails, and box joints on stock up to 24 inches wide. Reversible guide fingers, a dual scale, and the e-Bushing system let you dial joint fit precisely, and cast support brackets keep wide stock flat. The manual is the best in the category.

Which dovetail jig is the best value?

The WoodRiver 12-1/2 inch Deluxe at $92. It cuts clean half-blind dovetails on stock up to 12-1/2 inches wide and 1/2 to 1 inch thick, using a CNC-machined steel template on a rigid steel body. Sawmill Creek users consistently note how much accurate joint you get under a hundred dollars. The through-dovetail template is a separate purchase.

What is the easiest dovetail jig for a complete beginner?

The WoodRiver Deluxe and the Rockler Complete are the friendliest starts. Both use fixed templates with simple setup and no test-cut fiddling. The Rockler adds a dust-collection port that keeps the cut line visible, which genuinely helps when you are still learning to read the joint as the router passes over the template.

Which jig handles the widest boards?

The Keller 1601 Pro, in practical terms. Its fixed-spacing aluminum templates let you index and repeat along a board of virtually unlimited width. Among single-setup jigs, the Leigh D4R Pro leads at 24 inches. The Leigh Super 12 and most budget jigs cap near 12 inches, so plan around your widest case side.

What is the cheapest way to get true variable spacing?

The Leigh RTJ400 at $199. It brings Leigh's variable-spacing approach to a router table, cutting nine sizes of through dovetails, three sizes of half-blind dovetails, and four box-joint sizes on stock up to about 16 inches. You need a router table and lift, but it is the least expensive genuine variable-spacing system here.

Which jig is best if I only build drawers?

The Porter-Cable 4210 at $159 or the WoodRiver Deluxe at $92. Drawers live on half-blind dovetails, and both specialize there. The 4210 adds dovetail dadoes, box joints, and miniature dovetails from one CNC-machined aluminum template, sharing the rugged steel base and cam clamps of the pricier 4216 without the extra templates you may rarely touch.

Does the Keller 1601 Pro cut half-blind dovetails?

No. It is a through-dovetail specialist, built around a two-template pin-and-tail system that needs no test cuts. That focus is exactly why it is fast in production and why it carries a lifetime warranty on templates that hold accuracy for years. If you need half-blind drawer joints, pair it with another jig or choose a combo kit.

Is the Leigh Super 12 worth $399 over the D4R Pro?

It depends on capacity. The Super 12 gives you Leigh's variable spacing, through and half-blind dovetails, and three router bits in a compact 12-inch package for half the flagship's price. If your work never exceeds 12 inches, it is the smarter buy. An optional accessory kit extends its range if your projects grow later.

How many joint types does the Porter-Cable 4216 cut?

Its three aluminum templates cover half-blind and sliding dovetails, through dovetails and box joints, and miniature dovetails and box joints, on stock 12 inches wide and 1/4 to 1-1/8 inches thick. It ships with four router bits, four template guides, lock nuts, and a wrench. Spacing is fixed and template swaps take time, but the range is unusually broad.

What should I look for in jig build quality?

Steel or CNC-machined aluminum templates and firm cam clamps. Flimsy clamping is what causes gaps and blowout — the workpiece shifts mid-pass and the joint never closes. The Porter-Cable jigs use a single-piece steel base with sandpaper-backed clamp bars; the WoodRiver uses a rigid steel body. Lighter aluminum jigs like the General Tools 861 suit occasional use.
