Top 10 Car Battery Testers — Best Overall + Best Value in 2027

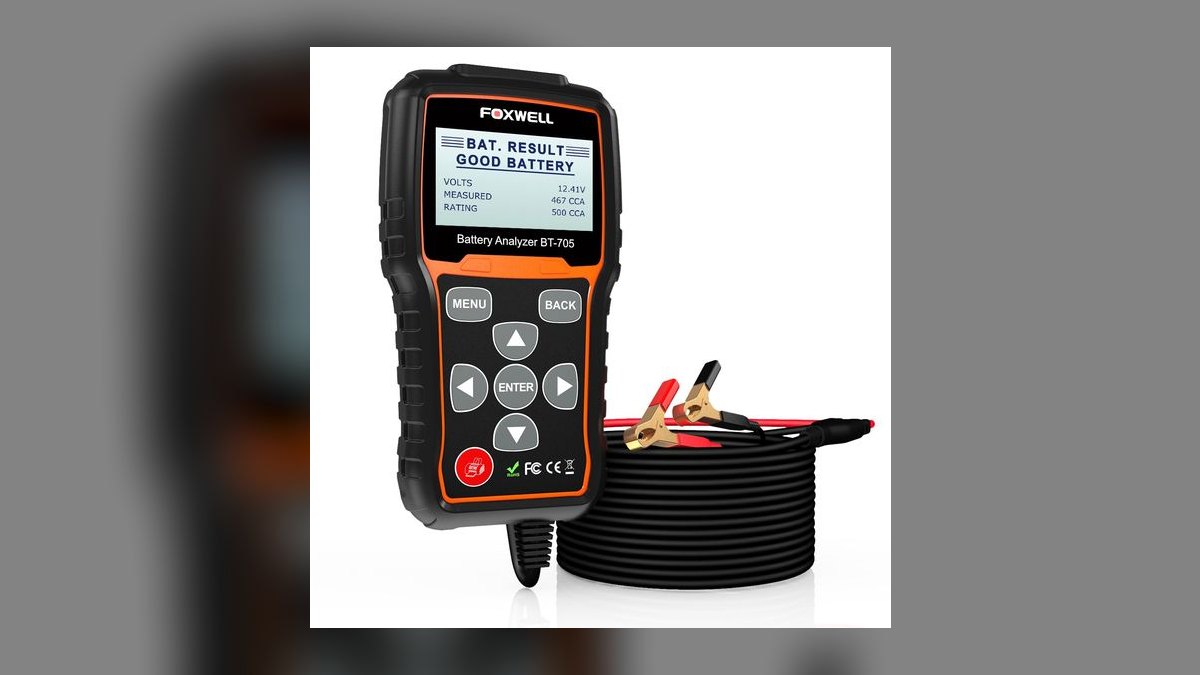

1. FOXWELL BT705

This tops the list because it is the only tester here that combines 6V/12V battery testing with 12V and 24V starting and charging-system diagnostics at $99. It covers 100–2000 CCA across regular flooded, AGM flat-plate, AGM spiral, EFB, and gel chemistries. The three-part workflow runs battery health, a cranking test, and a charging-system test. Premium copper clamps and thick leads hold connection on corroded terminals.

Built for mobile techs and small shops that want pro depth without a carbon-pile load bank taking up bench space. It trades away pocketability and costs roughly four times the KONNWEI KW208, and it has no native lithium LiFePO4 profile. Wireless thermal printer support produces paper records the cheaper handhelds cannot, which is the practical reason Garage Journal techs pick it over pricier rigs.

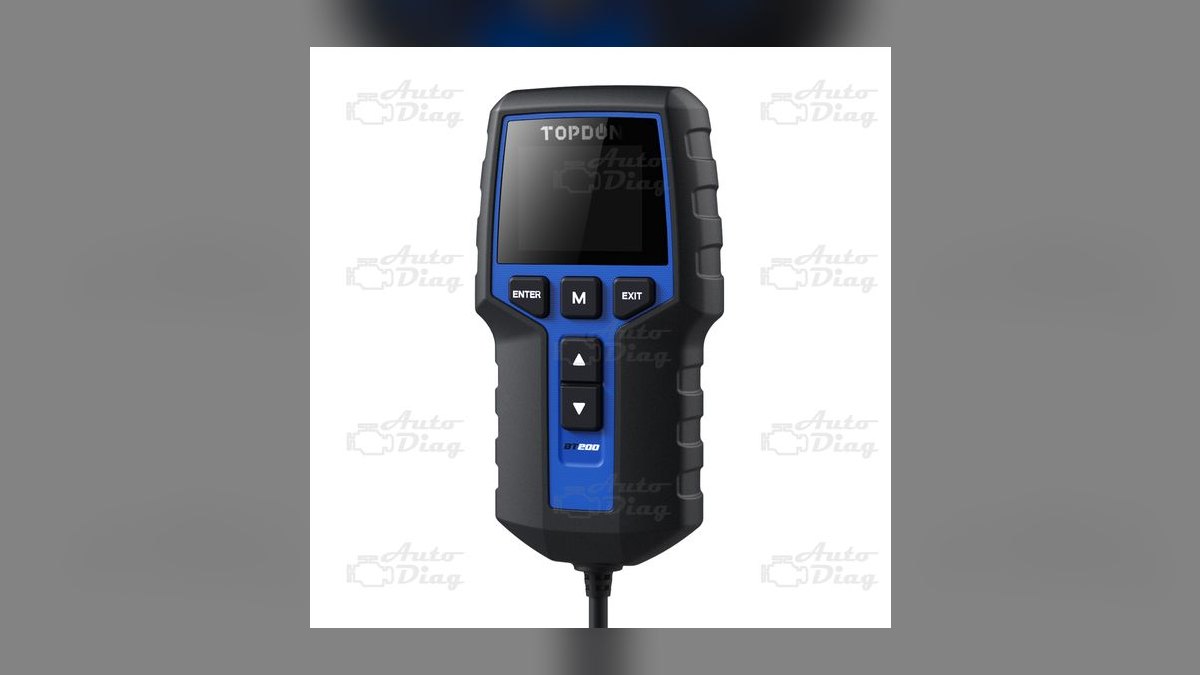

2. TOPDON BT200

Second place goes to the best accuracy-per-dollar in a color-screen unit: $50 for a 12V/24V digital-conductance tester rated 100–2000 CCA. The 2.4-inch color LCD stays readable in a dim bay where monochrome units wash out. It tests battery health, cranking, and charging systems across flooded, EFB, AGM flat-plate, AGM spiral, and gel batteries. Mechanic Base rates its conductance engine more precise than simpler units.

Aimed at serious DIYers who service more than one vehicle and want 24V coverage without paying shop prices. It gives up Bluetooth, printer output, and any lithium profile. Against the FOXWELL BT705 above it, you lose 6V support, printing, and heavy copper clamps, but you keep 24V trucks and RVs for half the money in a glove-friendly body.

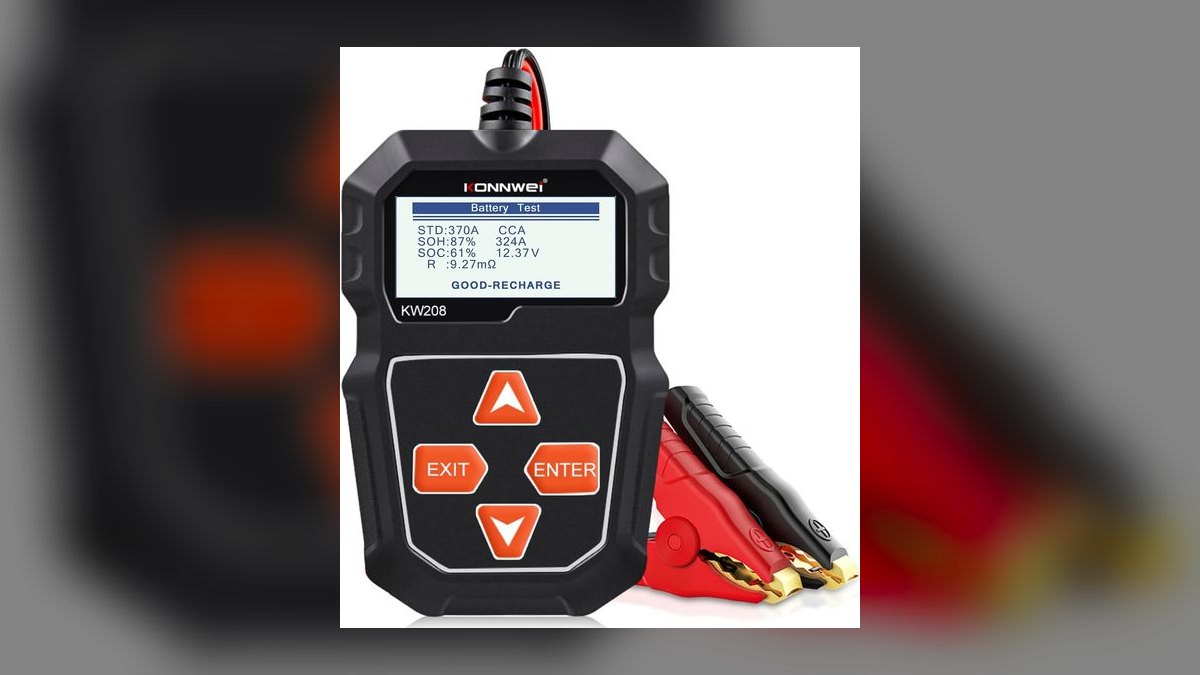

3. KONNWEI KW208

This ranks third on price-to-capability alone: $26 buys a real 12V digital-conductance tester covering 100–2000 CCA, not a voltage reader. It claims over 99.5% test accuracy in milliseconds across regular flooded, AGM flat-plate, AGM spiral, and gel batteries. It graphs real-time voltage as a waveform alongside text results, a feature absent on units three times the price. Cranking and charging-system checks are both included.

This is the pick for a budget DIY owner checking one or two vehicles in a home garage. It drops to 12V only, so no 6V powersports batteries and no 24V trucks, and the plastic clamps are adequate rather than pro-grade. Compared with the TOPDON BT200 above, you lose the color screen and 24V range but save twenty-four dollars on comparable conductance accuracy.

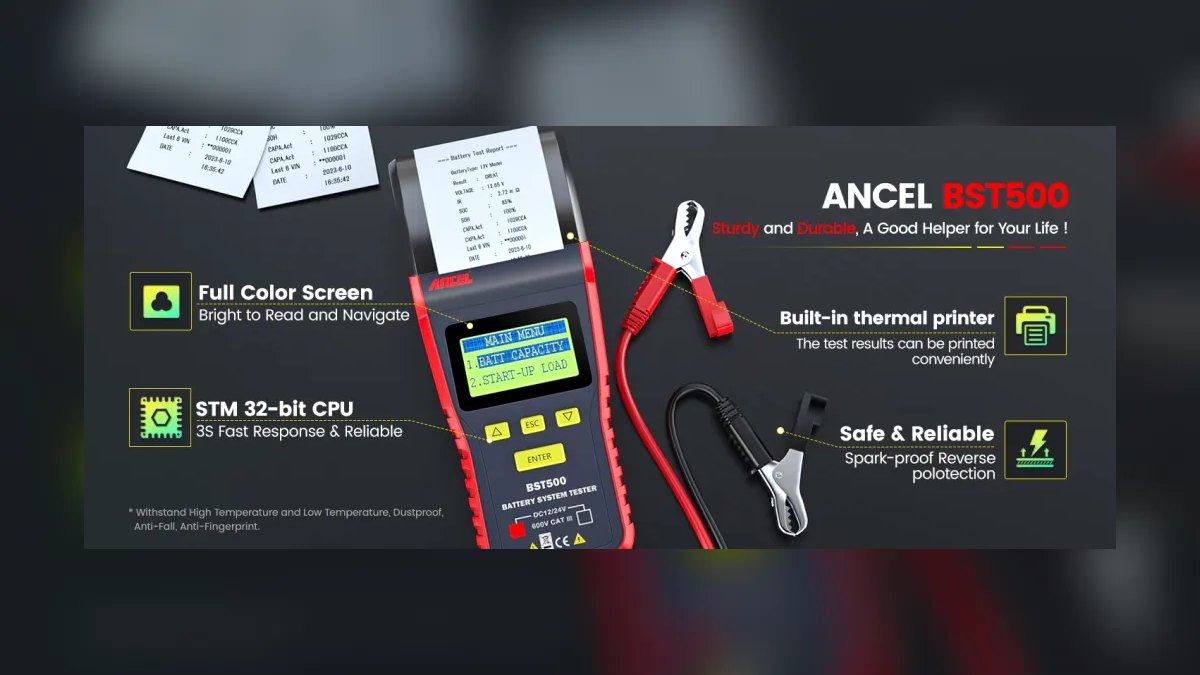

4. ANCEL BST500

Fourth position reflects the built-in thermal printer at $160 — cheaper documentation than any load bank on this list. It is a 6V/12V/24V professional digital-conductance analyzer spanning 100–2000 CCA across flooded, AGM, EFB, and gel batteries. Test depth extends past the norm to include ripple testing alongside battery, cranking, and charging-system checks. The large color display and guided menus shorten training time for new hires.

The buyer is a shop tech who hands customers a paper result on every job and wants a big touchscreen. It costs $61 more than the FOXWELL BT705 and carries a larger footprint than any pocket unit. The BT705 prints only to a separate wireless thermal printer, so the BST500's integrated printer is the reason to accept the extra bulk and cost.

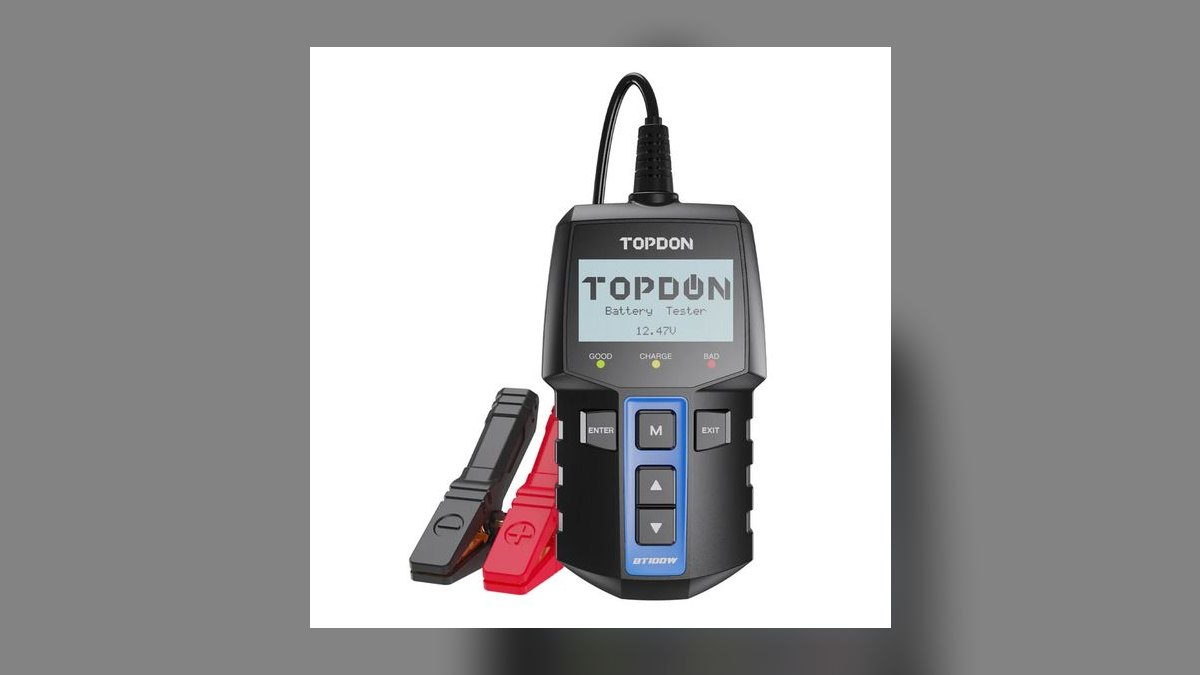

5. TOPDON BT100W

Fifth because the Bluetooth link adds stored history and shareable reports for a small upcharge over the $42.99 wired BT100. The $50 unit pairs with the TOPDON app on iPhone or Android and covers 100–2000 CCA across flooded, AGM flat-plate, AGM spiral, EFB, and gel chemistries. It runs battery health, cranking-voltage and cranking-time, and charging-output tests. App history lets you track one battery's decline over months.

For app-driven DIYers who want to email an alternator result rather than photograph a screen. It is 12V only, ruling out 24V trucks, and the app polish lags behind the hardware. At the same $50 as the TOPDON BT200 above, you trade the BT200's color screen and 24V range for phone reports and logged test history.

6. Solar 1876 Carbon-Pile Load Tester

Sixth for capability rather than convenience: it is a 6V/12V/24V variable carbon-pile load tester rated to a 1000-amp load and batteries up to 2000 CCA. It applies a real resistive load instead of estimating from internal resistance, assessing battery capacity, alternator output, and starting-system capacity directly. The rugged, repairable build outlasts handhelds by years. At $300 it is the most expensive tool here.

Built for high-volume bays that want certainty on whether a battery actually holds up under load. It gives up everything electronic — no display, no memory, no connectivity — and it is heavy and runs very hot during testing. Against the conductance analyzers ranked above it, it answers the definitive capacity question they only estimate, which is why master techs keep one as a tiebreaker.

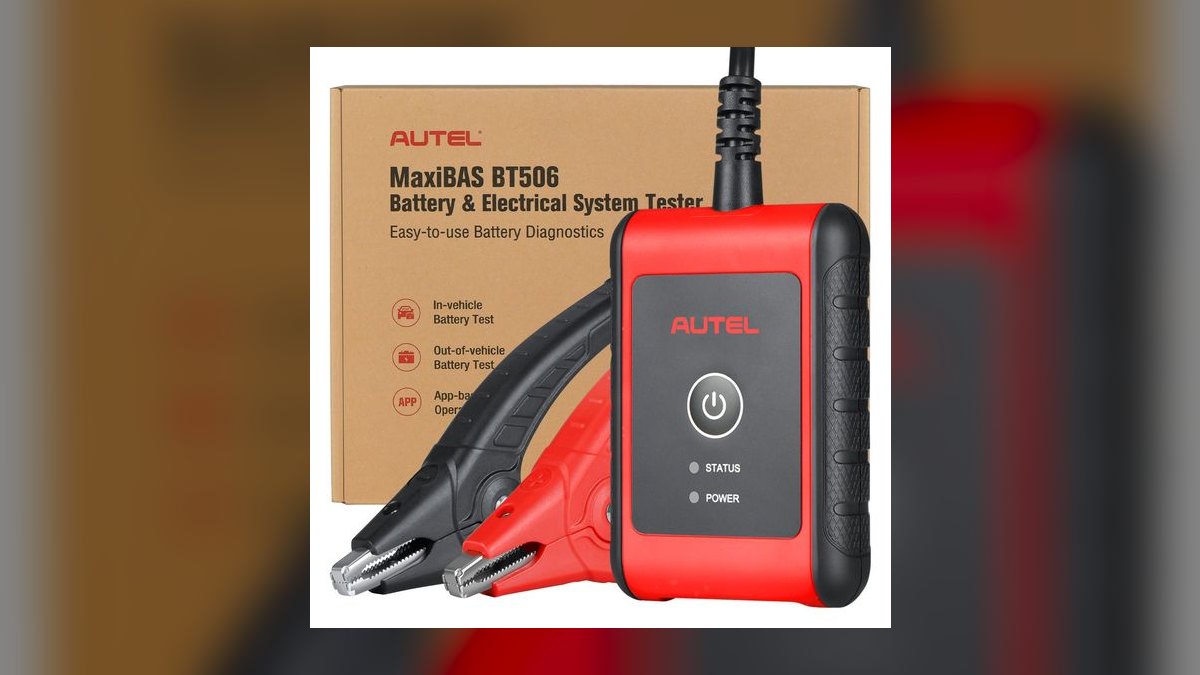

7. Autel BT506

Seventh because its $120 value depends heavily on owning other Autel gear. It is a 6V/12V digital-conductance analyzer pairing adaptive conductance with electrical-system diagnostics, covering roughly 100–2000 CCA across flooded, AGM, EFB, and gel batteries. Past battery health, cranking, and charging tests, it flows data into Autel's diagnostic ecosystem. The color screen, guided prompts, and pro-grade build match the brand's reputation.

The natural buyer already runs Autel scan tablets and wants battery data in the same workflow. It stops at 6V/12V, so no 24V trucks or buses, and standalone it costs $21 more than the FOXWELL BT705 while doing less. Outside the Autel ecosystem the BT705 or ANCEL BST500 deliver more coverage per dollar; inside it, the integration justifies the position.

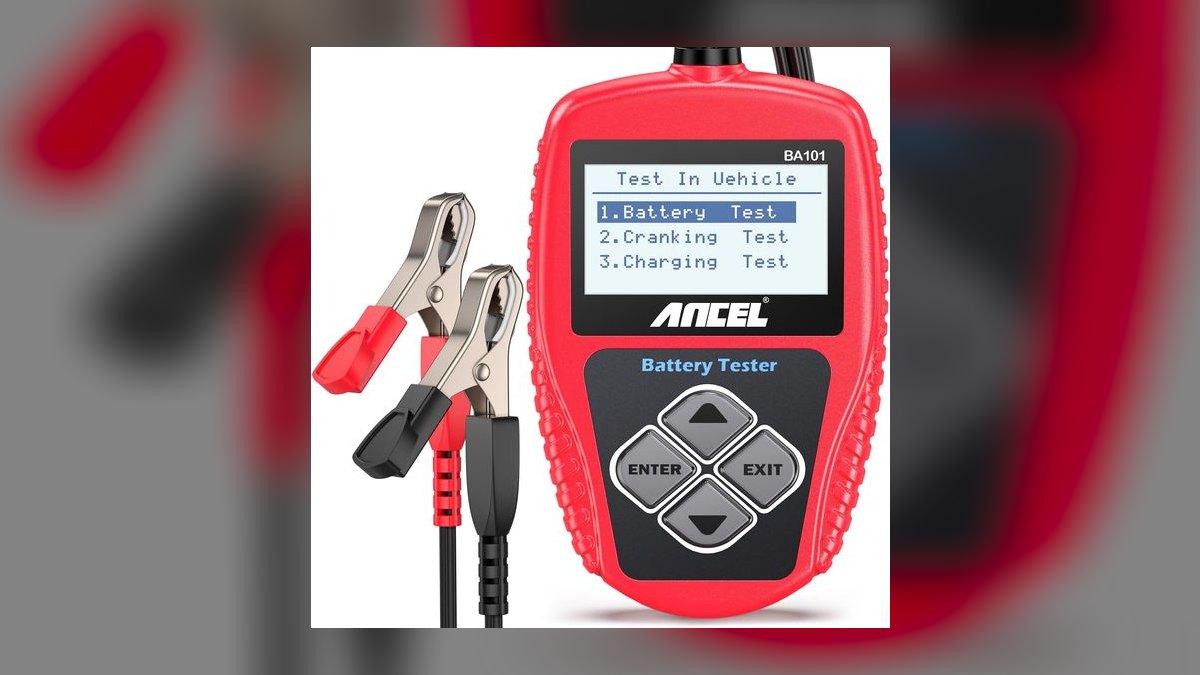

8. ANCEL BA101

Eighth on safety features rather than raw capability: reverse-polarity and spark-proof protection shields make this $40 tester forgiving for a first-timer. It is a 12V digital-conductance unit reviewers credit with roughly 99.6% accuracy, covering 100–2000 CCA across wet-cell, AGM, and gel batteries on a clear backlit LCD. Cranking and charging-system checks are included. It works on cars, trucks, motorcycles, boats, and lawn equipment.

Aimed at a first-time DIY owner who wants results without risking a spark at the terminals. There is no Bluetooth, no printer, no 24V, and no EFB profile. It costs $14 more than the KONNWEI KW208 ranked above and offers no extra test depth for the money — the built-in safety shields and powersports compatibility are what you are paying the difference for.

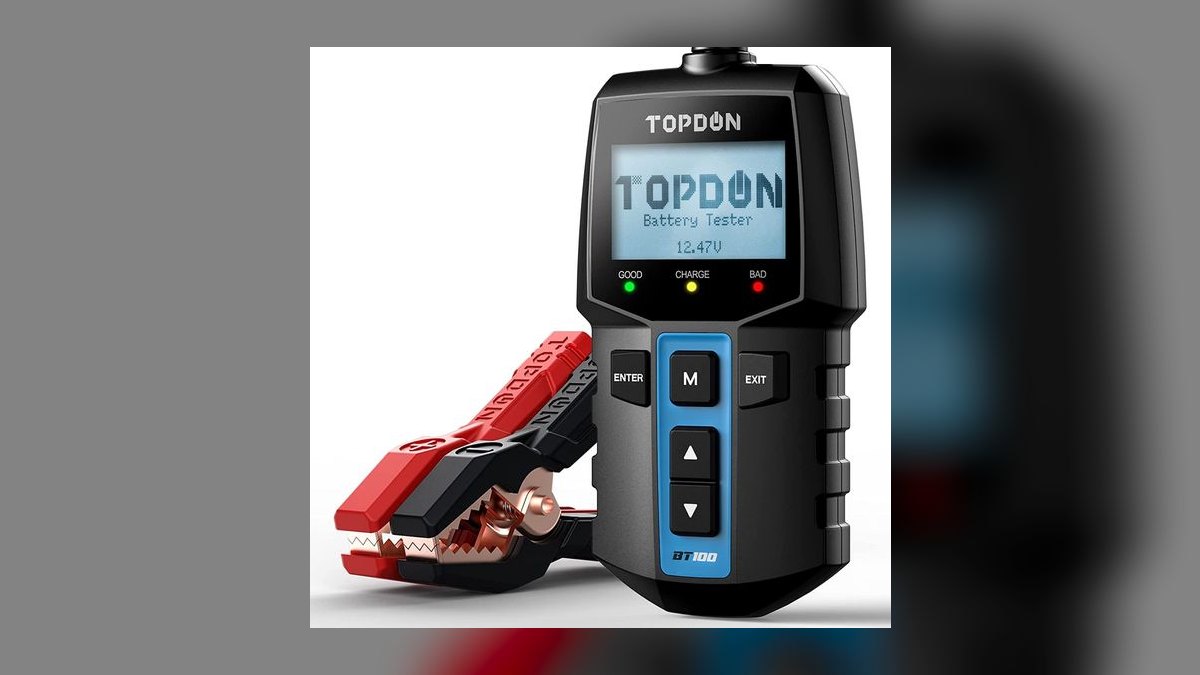

9. TOPDON BT100

Ninth because it is the BT100W minus Bluetooth at $42.99, so it lands behind its own wireless sibling. The wired 12V digital-conductance engine is identical, covering 100–2000 CCA across flooded, AGM flat-plate, AGM spiral, EFB, and gel batteries. It reports state of health, state of charge, voltage, and rating, then runs cranking-voltage, cranking-time, and charging-output tests on its own screen. NAPA stocks it.

The buyer is a no-frills DIYer who would rather read results on the device than pair a phone. It gives up app history, shareable reports, printing, and 24V coverage entirely. Against the BT100W at $50, the $7 saving costs you Bluetooth and logged history — worth it only if you genuinely never want the app in the loop.

10. Schumacher PST-500

Tenth because its load-testing capability is real but narrow: 500 amps for 6V and 12V batteries up to 1000 CCA, half the Solar 1876's ceiling. It applies a 50-amp load on 6V and a 100-amp load on 12V through a heavy analog meter. The baked-enamel steel case, top-mounted rocker switch, super-grip color-coded clamps, and rubber-insulated handle make it a durable bench staple at $130.

For a budget shop that wants a genuine resistive-load verdict without the Solar 1876's $300 outlay. It is analog only — you read a needle, with no display, memory, or connectivity — and 2000 CCA batteries and 24V systems are out of range. Against the Solar 1876 above it, you halve the price and lose half the amperage, the 24V coverage, and the higher CCA ceiling.

How we ranked these

We weighted accuracy and test depth first at 25 percent, because a tester that only reads resting voltage tells you nothing about cranking or alternator health. CCA range and chemistry coverage took 20 percent, conductance-versus-carbon-pile capability 15 percent, connectivity such as Bluetooth or thermal printing 15 percent, build quality and clamp grip 15 percent, and price-to-performance the final 10 percent across a $26 to $300 spread.

We deliberately ignored screen size, color graphics, and app polish as ranking factors, because a vivid display does not improve a conductance measurement. We also ignored lithium marketing claims unless a dedicated LiFePO4 profile was documented, skipped bundled accessory counts, and discounted retailer star ratings, which conflate shipping speed with diagnostic accuracy. Brand prestige earned no points; the Solar 1876 has no screen and still ranks.

What to look for

Decide conductance or carbon-pile before comparing prices. Conductance units like the FOXWELL BT705 and KONNWEI KW208 are fast, cool, and safe, estimating health from internal resistance. A carbon-pile tester such as the Solar 1876 or Schumacher PST-500 applies a real resistive load for a definitive capacity verdict, but weighs more, runs hot, and offers no memory or printing for customer records.

The common mistake is paying for a color screen instead of test depth. A $26 KONNWEI running true conductance plus cranking and charging tests out-diagnoses a prettier voltmeter. The second mistake is assuming 24V coverage; the KW208, ANCEL BA101, and both TOPDON BT100 variants are 12V only, so heavy trucks and large RVs need the BT705, BST500, BT200, or Solar 1876.

Related questions

What is the difference between conductance and carbon-pile testing?

A conductance tester sends a small AC signal through the battery and calculates health from internal resistance, returning a result in seconds without heat. A carbon-pile tester applies a real resistive load — 500 amps on the Schumacher PST-500, up to 1000 on the Solar 1876 — and watches voltage sag. Conductance estimates capacity; carbon-pile measures it directly under genuine draw.

Why does CCA range matter when choosing a tester?

Cold cranking amps describe how much current a battery delivers at 0°F, and the tester must span your battery's rating to score it. Every unit on this list covers 100 to 2000 CCA except the Schumacher PST-500, which caps at 1000 CCA on 12V. Enter the printed rating from the case label, not a guess, or the health percentage will be meaningless.

Do I need a printer or Bluetooth on a battery tester?

Only if you hand results to someone. Shops charging for a battery replacement benefit from the ANCEL BST500 internal thermal printer or the FOXWELL BT705 wireless printer as documentation. DIY owners tracking one vehicle over years get more from the TOPDON BT100W app history, which stores readings on a phone. Neither feature improves the underlying measurement accuracy at all.

Can these testers handle lithium LiFePO4 batteries?

Mostly no. Every pick here supports flooded, AGM flat-plate, AGM spiral, EFB, and gel chemistries, but lithium iron phosphate uses a different voltage curve and internal resistance profile that conductance algorithms built for lead-acid misread. Confirm an explicit LiFePO4 mode before clamping onto a lithium pack, and treat any health percentage from a lead-acid profile as unreliable.

Is a cranking test different from a charging-system test?

Yes. The cranking test watches voltage while the starter turns the engine, revealing whether the battery holds up under peak load and how long it takes to fire. The charging test then measures alternator output with the engine running, including ripple on units like the ANCEL BST500. A weak alternator kills good batteries, so run both before condemning either.

How much should a DIY owner actually spend?

About $26 for the KONNWEI KW208 covers one or two 12V vehicles with genuine conductance accuracy, cranking and charging tests, and AGM support. Stepping to $43 buys the TOPDON BT100 build quality, $50 adds a color screen or phone reports. Above $99 you are buying 24V coverage, printing, or shop documentation that a home garage rarely needs.

Why do heavy copper clamps matter more than they sound?

Corroded terminals add resistance, and conductance testing measures resistance, so a poor bite skews the reading low and condemns a healthy battery. The FOXWELL BT705 ships premium copper clamps on thick leads for exactly this reason. Cheaper plastic-bodied clamps work fine on clean posts but need a wire brush first. Always clamp bare lead, never through paint or grease.

Can a tester find a parasitic drain?

No. Every unit here evaluates battery condition, cranking performance, and charging output at a single moment. A parasitic draw is a small current pulled while the vehicle sits, and finding it needs a multimeter in series with the negative cable plus systematic fuse pulling. If a healthy battery keeps dying overnight, the tester has already done its job.

Do these work on motorcycles, boats, and lawn equipment?

Generally yes for 12V applications. The ANCEL BA101 explicitly covers cars, trucks, motorcycles, boats, and lawn equipment, and its reverse-polarity and spark-proof shields make small-battery work forgiving. For 6V garden tractors or antique vehicles you need the FOXWELL BT705, ANCEL BST500, Autel BT506, Solar 1876, or Schumacher PST-500, since 12V-only units cannot score them.

FAQ

Which car battery tester is best overall in 2027?

The FOXWELL BT705 at $99. It tests 6V and 12V batteries plus 12V and 24V starting and charging systems, spans 100 to 2000 CCA across flooded, AGM flat-plate, AGM spiral, EFB, and gel chemistries, and runs a full battery, cranking, and charging workflow. Wireless thermal printing turns each test into a customer record without stepping up to a load bank.

Which battery tester is the best value?

The KONNWEI KW208 at $26. It is a 12V digital-conductance tester covering 100 to 2000 CCA with AGM flat-plate, AGM spiral, gel, and flooded support, claiming better than 99.5 percent accuracy in milliseconds. It graphs voltage as a live waveform alongside text results and runs cranking and charging checks — real diagnostics, not a dressed-up voltmeter.

Is a conductance tester as accurate as a carbon-pile tester?

For most batteries, yes. Quality conductance units claim well over 99 percent accuracy and are faster, cooler, and safer to operate. A carbon-pile tester like the Solar 1876 still gives the most definitive verdict because it loads the battery for real, which is why some master techs keep one on the bench purely as a tiebreaker.

Do I really need 24V capability?

Only for heavy trucks, buses, and large RVs or boats running 24V systems. The FOXWELL BT705, ANCEL BST500, TOPDON BT200, and Solar 1876 handle 24V. The KONNWEI KW208, ANCEL BA101, TOPDON BT100, BT100W, and Autel BT506 do not. Paying for 24V you never use is the most common overspend on this list.

Can I test a battery while it is still in the car?

Yes, and you should. Every tester here clamps directly to the terminals for an in-vehicle read. The cranking and charging tests specifically require the battery installed, the starter engaged, and the alternator spinning — you cannot run them on a bench. Just make sure the posts are clean so the clamps get honest metal contact.

What does the Autel BT506 add over cheaper testers?

Adaptive conductance plus electrical-system analysis, and integration with Autel's diagnostic tablets. At $120 it covers 6V and 12V, roughly 100 to 2000 CCA, across flooded, AGM, EFB, and gel batteries with battery, cranking, and charging tests on a color screen. Its real advantage appears inside the Autel ecosystem; outside it, cheaper units measure just as capably.

Is the Schumacher PST-500 enough load tester for a small shop?

For most 6V and 12V work, yes. It applies a genuine 500-amp carbon pile — 50 amps on 6V, 100 amps on 12V — through an analog meter, housed in a baked-enamel steel case with grip clamps. The limits are 1000 CCA maximum, no 24V, and no display or memory. At $130 it is the cheapest honest load verdict here.

Why choose the TOPDON BT100 over the BT100W?

Same 12V conductance engine, no Bluetooth, and about seven dollars cheaper at $42.99. Pick the wired BT100 if you would rather read state of health, state of charge, voltage, cranking time, and charging output on the device itself. Pick the BT100W if you want stored history, emailed reports, and phone-based records. Neither changes measurement accuracy.

How often should I test a car battery?

Twice a year is a reasonable rhythm — once before winter, when cold cuts available cranking amps, and once before a hot summer, since heat drives the chemical wear that actually kills batteries. Test immediately after any slow crank, jump start, or extended sitting. A three-year-old battery scoring below roughly 60 percent health deserves replacement before it strands you.

Does a failing alternator show up on these testers?

Yes, through the charging-system test, which measures voltage output with the engine running. The ANCEL BST500 adds ripple testing that catches failing diodes inside the alternator, a fault that quietly cooks batteries while output voltage still looks normal. If a replacement battery fails within months, run the charging test before buying another one.
