Top 10 Engine Hoists — Best Overall + Best Value in 2027

1. OTC 1820 Fold-Away Shop Crane

It ranks first because it pairs a full 2-ton (4,400 lb) rating with a 2-speed hydraulic hand pump that rapid-cycles the ram unloaded and then shifts to high-force mode under a heavy block. The telescoping boom carries four rated positions, stepping from 4,400 lb retracted down to roughly 1,100 lb at full extension. Adjustable leg spread pulls the legs in for close-in work, and six casters track a loaded long-block straight.

This is for pro shops and serious DIYers pulling engines weekly, where ram speed compounds across repeat lifts. It trades away affordability — roughly $250 more than the Sunex 5222 — and ships without a load leveler, so budget separately for one. The all-steel frame folds flat but weighs over 200 lb, making solo repositioning a chore. Buy the Sunex instead if you lift a few times a year rather than every week.

2. Sunex 5222 Folding Engine Crane

It ranks second on ram speed: dual pump pistons reach maximum height roughly 25% faster than single-pump designs, the closest thing to the OTC's 2-speed advantage at $649. The rating is a full 2 tons (4,400 lb), with a four-position boom covering 0.5-ton through 2-ton depending on extension. The heavy-gauge steel frame draws repeat praise on Garage Journal for rigidity under load, and it folds for compact storage between jobs.

This suits busy home shops that want near-pro speed and build without spending OTC money. It gives up the 1820's adjustable leg spread and costs about $250 less, but the load leveler is still sold separately. At heavier gauge than budget cranes, it is harder to fold and move than the sub-$300 cherry pickers below it. Step down to the Strongway if a bundled leveler matters more than frame rigidity.

3. Strongway 46219 2-Ton Engine Hoist

It ranks third because it is the only crane near $369.99 that includes a universal load leveler in the box — itself ASME PALD 2009 rated with a swivel handle for fine engine-angle adjustment. The 2-ton crane covers a lift range of 1 inch to 82 5/8 inches and meets ASME PASE 2019 standards. Its large-diameter hydraulic steel cylinder runs lower oil pressure to move a given load, which Strongway argues reduces wear and extends ram life.

This is for DIYers who want the leveler bundled rather than bought separately after the fact. Build rigidity sits a clear step below the Sunex 5222 above it, and the crane is heavy and awkward to fold solo. There is no dual-piston or 2-speed pump, so lifts take more strokes. Against the JEGS 81045K below, it trades roughly ten inches of lift ceiling for the included leveler.

4. JEGS 81045K Automotive Shop Crane

It ranks fourth on reach: a total lift range of 0 to 92 7/8 inches is among the tallest ceilings here, with a boom operating range of 41 3/8 to 62 1/2 inches. The 2-ton yellow-steel frame rides on six casters for stable straight-line movement of a loaded drivetrain, and the four-position boom holds the full 2-ton rating retracted. It folds for storage and sells for $359.98.

This is for performance builders pulling engine-and-transmission combos that must clear a tall front clip. Finish and weld quality rank below OTC and Sunex, and no leveler is included — unlike the Strongway just above it at a nearly identical price. Choose it over the Strongway only if lift height and the six-caster chassis outweigh a bundled leveler. Budget separately for the leveler you will likely want.

5. Torin Big Red T32002 Shop Crane

It ranks fifth on capacity per dollar: a 3-ton headline rating with 4,000 lb effective, a strengthened four-position adjustable boom, and a hydraulic long-ram jack for $329. An engine leveler comes in the box, which is unusual at this price and saves a separate purchase. It folds for storage and rides on multiple casters, making it a workable all-rounder for anyone who occasionally lifts something heavier than a small-block.

This fits owners who want headroom on capacity plus a free leveler without crossing $350. Steel gauge is lighter than the OTC or Sunex, and the ram frequently needs bleeding out of the box before the first lift. Against the JEGS 81045K above, it trades weld quality and lift ceiling for the bundled leveler and higher rating. Build is decent rather than pro-grade.

6. Dragway Tools LD-3012 Engine Hoist

It ranks sixth for its air-over-hydraulic ram, the cheapest route to powered lifting at $341.99 — pull a trigger instead of pumping by hand if you have shop air. The boom is rated 4,000 lb closed with a maximum height of 48 inches retracted, stepping across four positions down to roughly 1,000 lb fully extended. It folds flat for storage and can still be pumped manually when the compressor is off.

This is for garages that already run a compressor and make repeat lifts, where air assist genuinely saves effort. Without shop air the feature is dead weight and the crane is simply a budget 2-ton at a mid-tier price. Casters and welds are budget grade, below the Torin above it. Skip it for the VEVOR below if you would rather have a leveler and telescoping legs than air assist.

7. VEVOR 2-Ton Folding Engine Crane

It ranks seventh on features per dollar: $259 buys a 4,400 lb folding cherry picker with a telescopic boom, telescoping legs, and an included engine leveler with lever adjustment. The four-position boom spans 0.5 ton fully extended to the full 2 tons retracted. The heavy-duty steel frame folds down for storage in a single-bay garage. Telescoping legs and a leveler normally cost extra at this price point.

This is for budget DIYers doing an occasional home swap who still want adjustable close-in width. Quality control varies unit to unit, and the hardware and instructions are rough enough to demand a full bolt-torque check before the first lift. Against the Dragway above, it swaps air assist for a leveler and telescoping legs at roughly $80 less. Fit and finish are workable, not refined.

8. Pittsburgh Automotive 2-Ton Shop Crane

It ranks eighth overall but wins Best Value: roughly $189.99 with coupon is the lowest real price for a capable 4,000 lb folding crane. The redesigned Harbor Freight unit adds an internal load-limiting device to prevent overloading and now complies with ASME PASE standards, closing the main gap in earlier versions. ToolGuyd and Rare Car Network both reviewed it as a legitimate home-shop crane. It folds flat and rides on six casters.

This is for one-time and occasional DIY pulls on the tightest budget, where spending the least matters more than long-run durability. Steel and welds are budget grade, and no leveler is included — the VEVOR above bundles one for about $70 more. The four-position boom steps capacity down sharply as it extends, so plan the lift accordingly. Nothing else matches this price.

9. Goplus 2-Ton Folding Engine Hoist

It ranks ninth because at $219 it costs more than the Pittsburgh without adding anything: a 4,400 lb cherry picker with a four-position adjustable boom and a hand-pumped hydraulic ram. The folding action is genuinely tidy for a single-car garage, and it rides on swivel casters. The steel frame is adequate for occasional small-block and four-cylinder work. There is no air assist and no bundled leveler at this price.

This is for occasional users who want a simple no-frills folder and are not shopping Harbor Freight coupons. It trades away the load leveler that the VEVOR includes for $40 more and the ASME PASE load-limiting device the Pittsburgh carries for $30 less. Steel is lighter-duty than the mid-tier cranes above it. Clean and reliable, but outclassed on value from both directions.

10. OTC 1819 Fold-Away Floor Crane

It ranks tenth on capacity-for-price: $549 buys only a 1-ton (2,200 lb) rating on a list dominated by 2-ton machines that cost half as much. The build is genuine OTC — the same pro-grade steel and fold-away storage as the flagship 1820 — in a lighter, easier-to-move chassis. That lower rating is a hard ceiling, not a soft one, especially once boom extension cuts the working figure further.

This is for light work: four-cylinder engines, transmissions, differentials, and shop components where two tons is genuinely overkill. It trades capacity for portability and finish quality that is a tier above any budget hoist here. Against the Pittsburgh at $189.99, you pay nearly three times as much for half the rating and much better steel. Most buyers should size up to a 2-ton crane instead.

How we ranked these

Rated capacity was scored at full boom extension rather than the retracted headline number, then weighted at 25%, alongside build and stability (20%), folding and storage (15%), hydraulic ram quality (15%), load leveler and accessories (15%), and price-to-performance (10%). Manufacturer spec sheets from OTC, Sunex, Strongway, and Torin were cross-referenced against hands-on reviews and long-term owner reports. Caster count, leg spread, and total lift range were logged per unit.

Deliberately ignored: the headline tonnage stamped on the boom, since a 3-ton budget crane often holds barely 1,000 lb at full reach. Also ignored were star-rating averages, unverifiable seller claims, discontinued models, and fixed-leg shop cranes, which are rigid but consume floor space permanently. Marketing language like heavy-duty was discarded unless a published spec, standard compliance, or steel gauge backed it up.

What to look for

The number that decides your purchase is the boom's lowest rated position, not the closed rating. Most long-blocks run 400 to 700 lb, and you lift them with the boom out over a fender, where a 4,400 lb crane may be rated near 1,100 lb. After that, judge ram type: a 2-speed pump or dual pistons saves real minutes, and air-over-hydraulic saves your shoulder entirely.

The common mistake is buying tonnage instead of reach and then discovering the crane cannot clear a tall front clip. Measure your hood height and the distance from bumper to bellhousing before ordering. Second mistake: skipping the load leveler, then fighting the engine angle at the bellhousing for an hour. Bundled levelers on the Strongway, Torin, and VEVOR are worth roughly what they cost separately.

Related questions

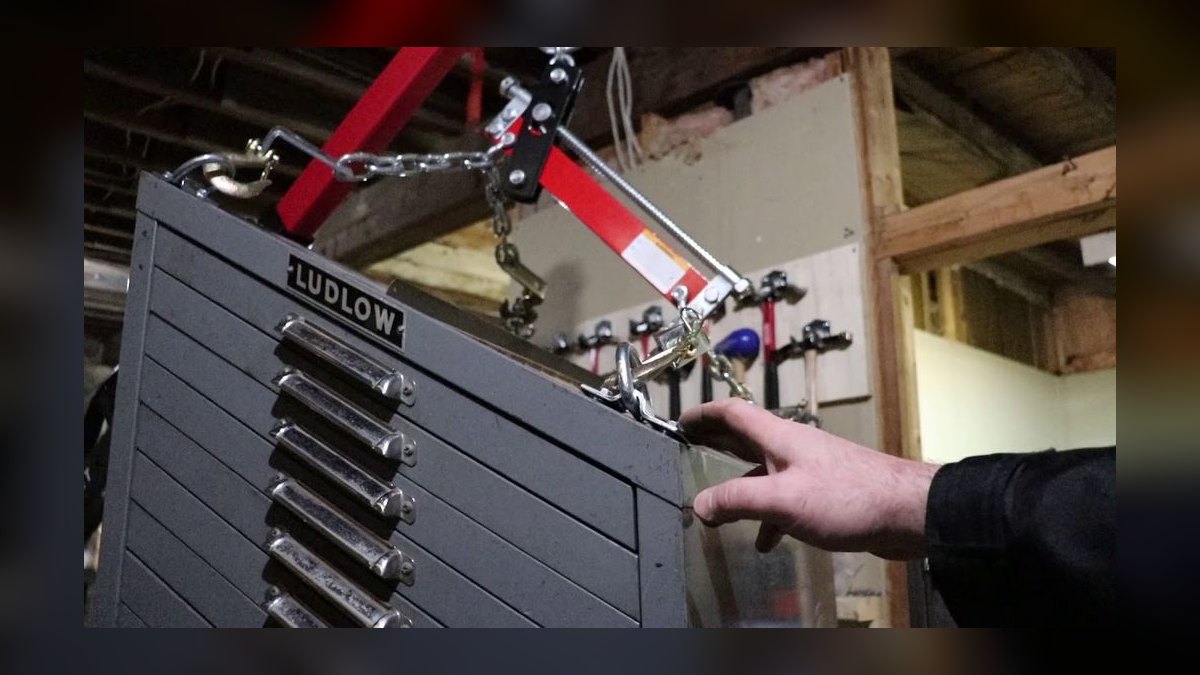

What does an engine hoist load leveler actually do?

A leveler hangs between the hook and the engine and lets you tilt the block fore and aft with a screw handle while it is suspended. That angle change is what clears the bellhousing and transmission input shaft during removal and reinstallation. Without one you shim, re-chain, and wrestle the load by hand, which is slow and genuinely unsafe.

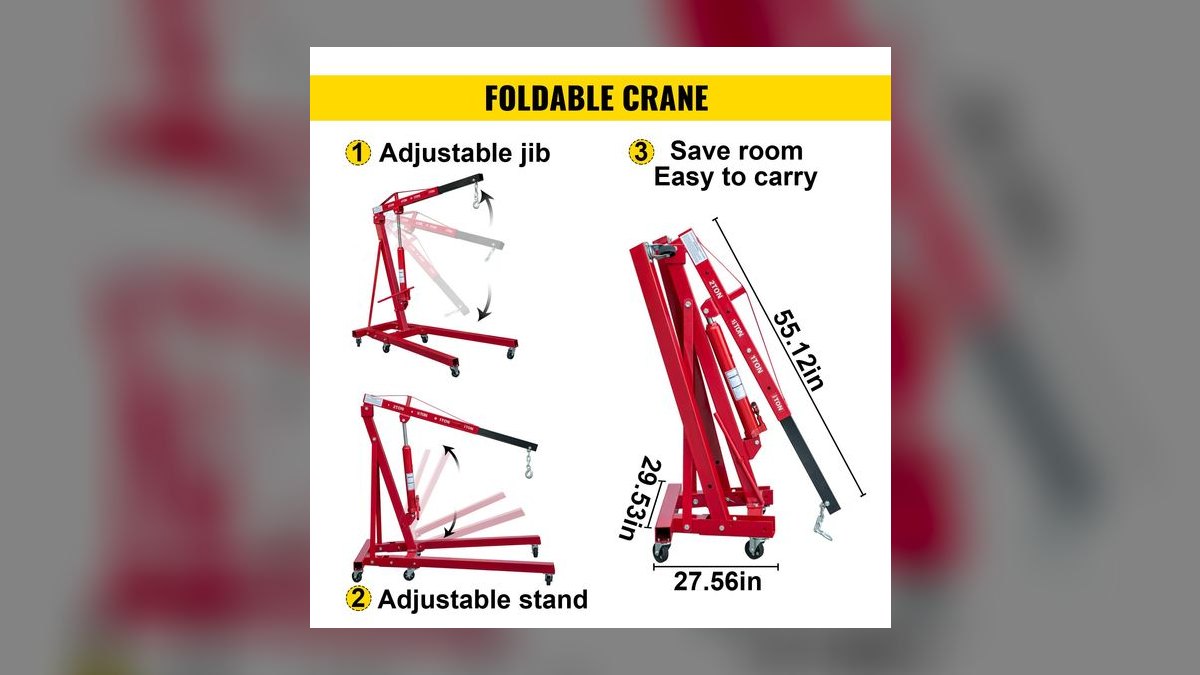

How much floor space does a folding engine hoist need?

Folded, most 2-ton cranes stand roughly two feet wide and lean against a wall in a single-car garage. In use, plan on eight to ten feet of clear length for the legs and boom, plus room to roll the vehicle back. Fixed-leg cranes never fold, so they occupy that footprint permanently.

Can one person safely use an engine hoist alone?

Yes, for a routine pull on level concrete, provided the load is chained to the block at rated lift points and the boom stays at a position rated above the engine weight. A second person helps guide the load and watch clearances. Never work under a suspended engine, and never move a loaded crane across cracks or thresholds.

What is the difference between an engine hoist and an engine stand?

The hoist lifts the engine out of the bay and moves it; the stand holds it afterward so you can rotate it while working. They are complementary, not alternatives. A typical swap uses the crane for maybe twenty minutes total and the stand for weeks. Budget for both if you plan a rebuild rather than a straight replacement.

Do you need shop air for an air-over-hydraulic hoist?

No. Units like the Dragway LD-3012 still pump manually when the compressor is off, so the air line is a convenience rather than a requirement. With air connected, one trigger raises the load without repetitive pumping, which matters most when you are cycling the ram several times in a session to clear obstructions.

Why does bleeding the hydraulic ram matter on a new crane?

Budget cranes ship with air trapped in the cylinder, which makes the ram feel spongy, stall partway, or settle under load. Bleeding purges that air so the ram holds position predictably. Do it before the first lift, along with torquing every frame bolt, then test-cycle the empty boom through its full travel.

Can an engine hoist lift a transmission or rear axle?

Yes, and it is one of the better uses for a 1-ton crane like the OTC 1819. Transmissions run 100 to 250 lb and differentials less, well inside any of these ratings even at full extension. Strap the case at balanced points; a transmission jack is still better for reinstalling under a raised vehicle.

How long does a folding shop crane last in a home garage?

The frame outlives the owner if it is stored dry; the failure points are the hydraulic seals and the casters. A pro-grade ram from OTC or Sunex handles years of weekly use. Budget rams may weep after a few seasons, though replacement long-ram jacks are inexpensive and swap out with basic hand tools.

FAQ

How many tons of engine hoist do I need?

A 2-ton (4,400 lb) crane suits nearly every passenger-car and light-truck engine. Most long-blocks weigh 400 to 700 lb, and you lift with the boom partly extended, where rated capacity drops sharply. A 1-ton crane is adequate only for four-cylinders, transmissions, differentials, and shop components, not big-block V8 work.

Does the boom rating really drop as it extends?

Yes, and it is the single most misunderstood spec. A boom rated 4,000 lb retracted typically falls to roughly 1,000 to 1,100 lb at its fourth, fully extended position. Each of the four pin holes carries its own rating, usually printed on a decal. Plan the lift around the position you will actually use.

Should I buy a folding or fixed engine hoist?

Buy folding unless you run a dedicated shop with floor space to spare. A folding crane collapses flat and stows against a wall between jobs, which is the difference between owning one and borrowing one. Fixed-leg cranes are marginally more rigid, but that rigidity rarely matters at typical engine weights.

Is the Harbor Freight engine hoist actually safe?

The current Pittsburgh Automotive 2-ton unit added an internal load-limiting device and meets ASME PASE standards, which addressed the main historical complaint. ToolGuyd and Rare Car Network both reviewed it as a legitimate home-shop crane. Welds and steel are budget grade, so inspect the assembly, torque every bolt, and respect the boom position ratings.

What does ASME PASE compliance mean on a shop crane?

PASE is the American Society of Mechanical Engineers standard covering portable automotive service equipment, including engine cranes. Compliance means the design met defined structural and overload requirements rather than just a manufacturer's claim. It is the clearest third-party signal a budget crane is engineered honestly, which is why the newer Pittsburgh and Strongway listings advertise it.

How high does an engine hoist need to lift?

Aim for a maximum lift near 80 inches or more if you pull engines from trucks or anything with a tall front clip. The JEGS 81045K reaches roughly 92 inches and the Strongway about 82 inches. Measure hood height plus engine length plus chain and leveler height before assuming a shorter crane clears.

Can I use an engine hoist on gravel or asphalt?

Not safely. Casters need level concrete; on gravel they dig in and on hot asphalt they sink, both of which can tip a loaded crane. If you must work outside, lay down thick plywood or steel plate under the full leg footprint and never roll the crane while a load hangs from the boom.

How do I store a folding engine hoist?

Fold the legs and boom per the manual, retract the ram fully so the piston rod stays protected, and stand the frame against a wall with a strap or wheel chock. Store it dry; surface rust on the ram rod is what kills seals. Most folded 2-ton cranes still weigh over 150 lb, so plan the move.

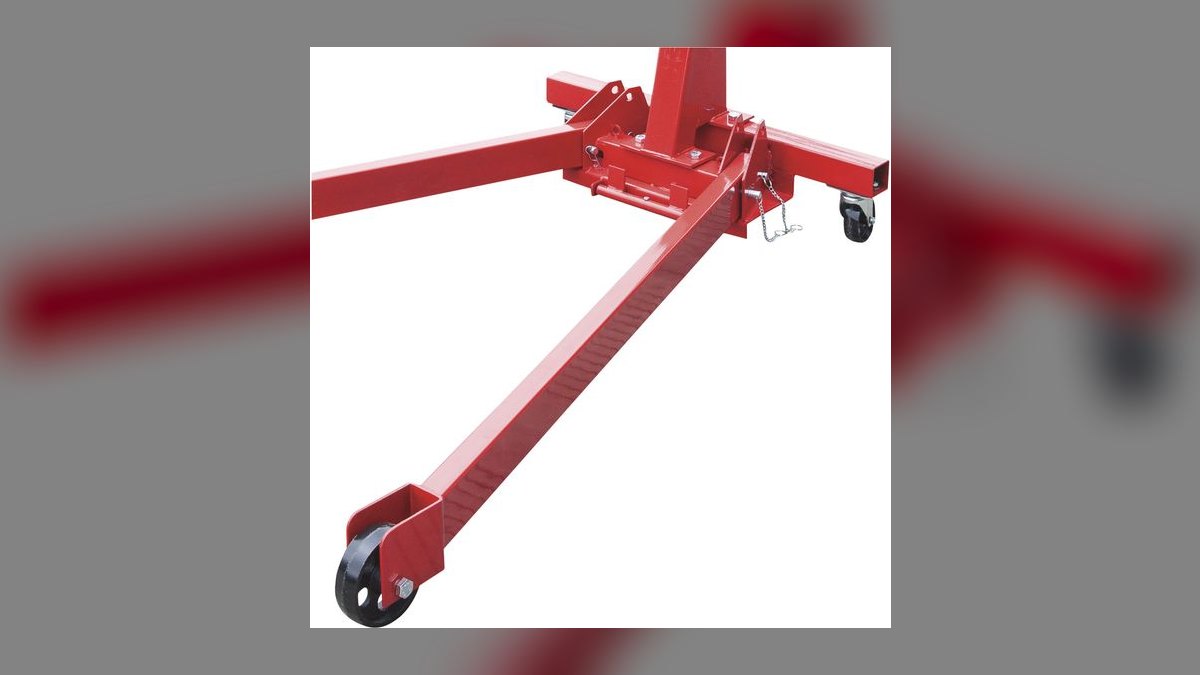

Do I need six casters or are four enough?

Six casters track a loaded drivetrain noticeably straighter and reduce the tendency to swing when you change direction. Four work fine for occasional pulls on smooth concrete. The JEGS and Pittsburgh units ride on six, and the OTC 1820 uses six as well, which is part of why it feels stable under a full long-block.

Is a 3-ton hoist better than a 2-ton?

Usually not, because the headline number is measured retracted. A budget 3-ton crane that holds 1,000 lb at full reach offers no real advantage over a well-built 2-ton with a heavier frame and better ram. Compare the fully extended rating and the steel gauge instead of the number printed on the boom.
