Top 10 Transmission Jacks — Best Overall + Best Value in 2027

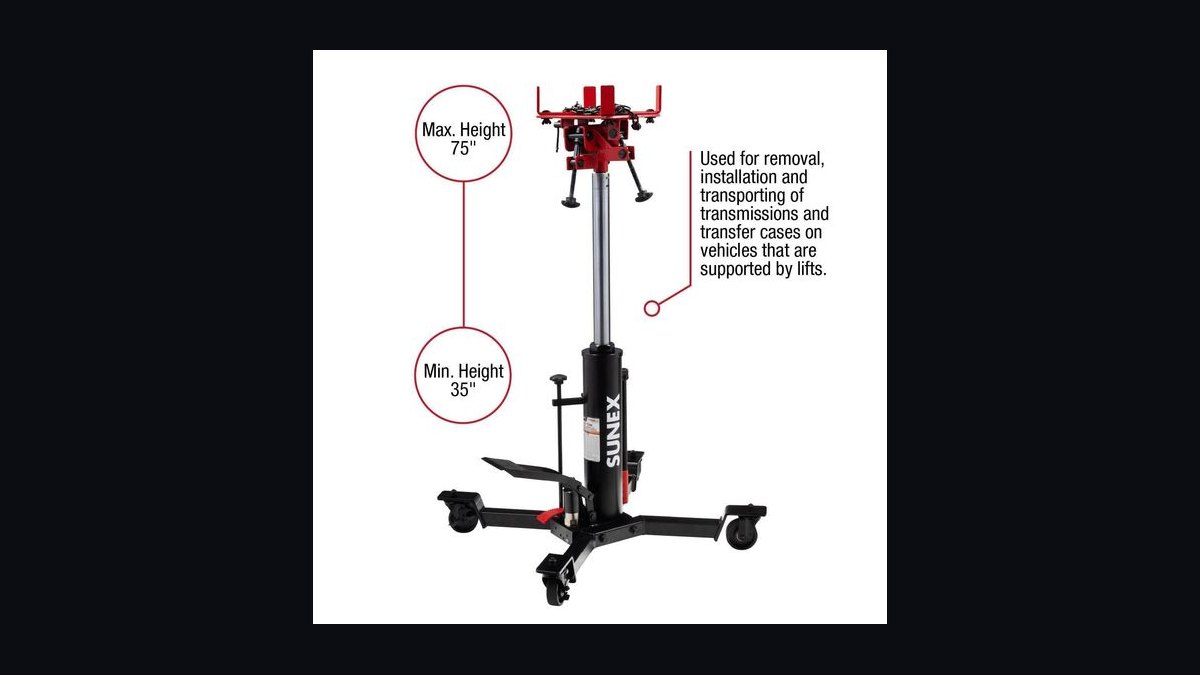

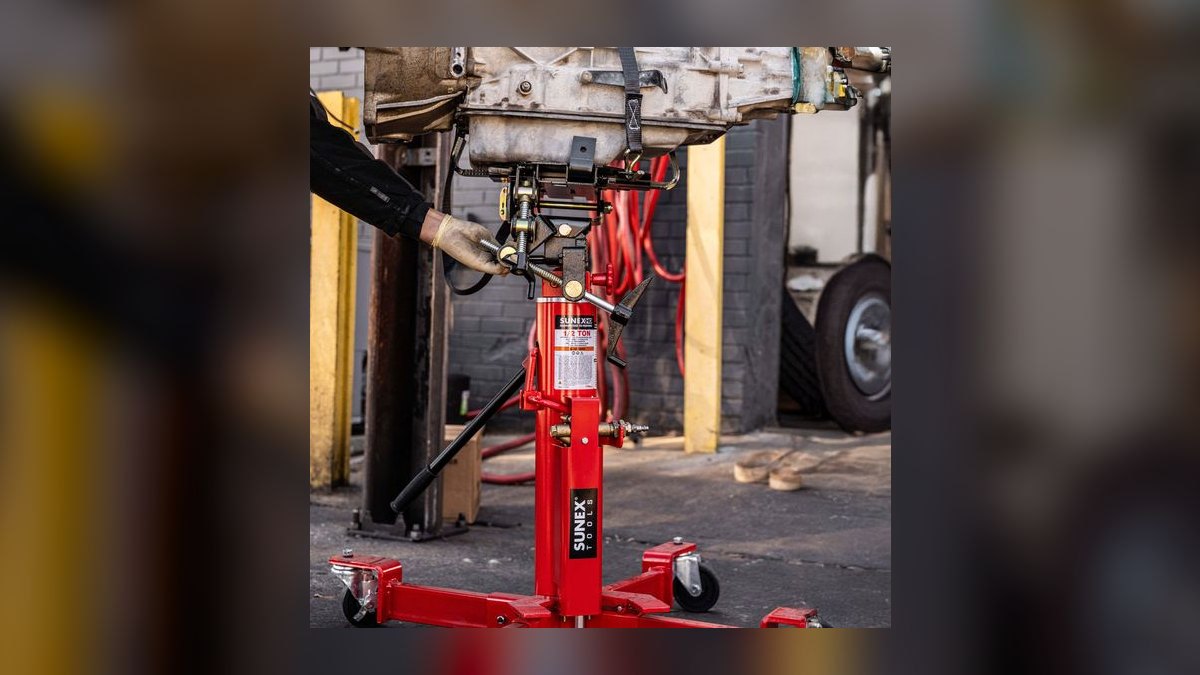

1. Sunex 7793B Telescopic Transmission Jack

This ranks first because its two-stage telescoping ram spans 35.5 inches collapsed to 74 inches raised, the widest usable range on this list at roughly $430. A foot-activated pump pedal raises the rams hands-free, leaving both hands free to steady a wet transaxle during alignment. The four-arm padded saddle tilts to match angled pans, and a safety chain straps the unit down. At about 167 lb, the wide caster base stays planted under load.

This is the jack for a working shop pulling units off a two-post lift and lowering them to a work table. It trades portability for stability — 167 lb is genuinely awkward to move between bays, and the manual pump is slower than the air-assist Sunex 7796 above it in price. Against the OTC 1521A below, the 7793B buys 44 more inches of top reach; against the 7796, you save $130 and give up air assist.

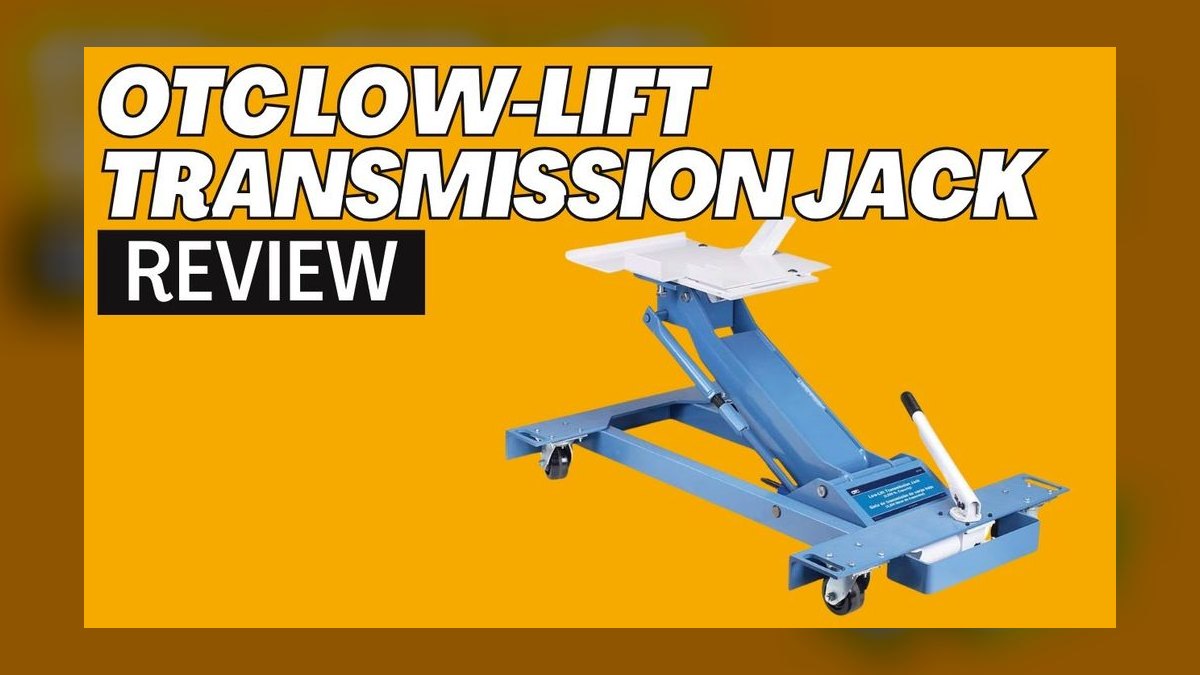

2. OTC 1521A Low-Lift Transmission Jack

Second place goes to the reference-grade low-lift floor jack: 1,000 lb capacity across a 6.5-to-29.5-inch height range for about $300. The 6.5-inch minimum slides under a transmission on a vehicle already raised, and a 360-degree rotating pump handle lets you work the hydraulics from any angle in a cramped bay. Adjustable saddle brackets and safety chains cradle the pan. Roughly 139 lb keeps the center of gravity low.

Buy this if your cars live on a two-post or four-post lift and you need a steady low platform, not reach. It gives up the under-hoist capability entirely — 29.5 inches tops out well short of a lifted truck, which is exactly what the Sunex 7793B above it does. Against the cheaper Strongway further down, the OTC buys durability and seven more inches of lift for double the money.

3. Ranger RTJ-1100 Telescoping Transmission Jack

Third because it delivers 1,100 lb of telescoping capacity in the most maneuverable upright package here, around $350. The single-stage hydraulic ram sits on a compact 24-inch base that stays stable without eating floor space, and built-in overload protection stops you exceeding the rating. The adjustable saddle matches pan angle. BendPak's fit and finish shows in the frame welds and caster quality, and Garage Journal owner threads run long and favorable.

This suits shops doing car and light-truck work rather than heavy diesel pulls, where floor congestion matters more than maximum reach. The single-stage ram is the real trade — it cannot match the 74-inch top height of the two-stage Sunex 7793B above. It also costs more than import telescoping jacks like the VEVOR, which buys you build quality rather than capability.

4. Sunex 7796 Air/Hydraulic Transmission Jack

Fourth on price rather than performance: at roughly $560 this is the most expensive jack here, but the air-assist hydraulics are the fastest. Connect it to shop air and the two-stage rams rise from 35 inches to 73.5 inches without a single pedal stroke. It carries the same tilting four-arm saddle, safety chain, and wide caster base as the manual 7793B, so the load handling is identical — you are paying purely for the air circuit.

This makes sense for a bay pulling several transmissions a week, where saved knee work and cycle time compound. Against the 7793B ranked first, you spend $130 more and gain nothing in reach or saddle control — only speed. It also requires a shop air supply, so a home garage without a compressor should take the 7793B and keep the difference.

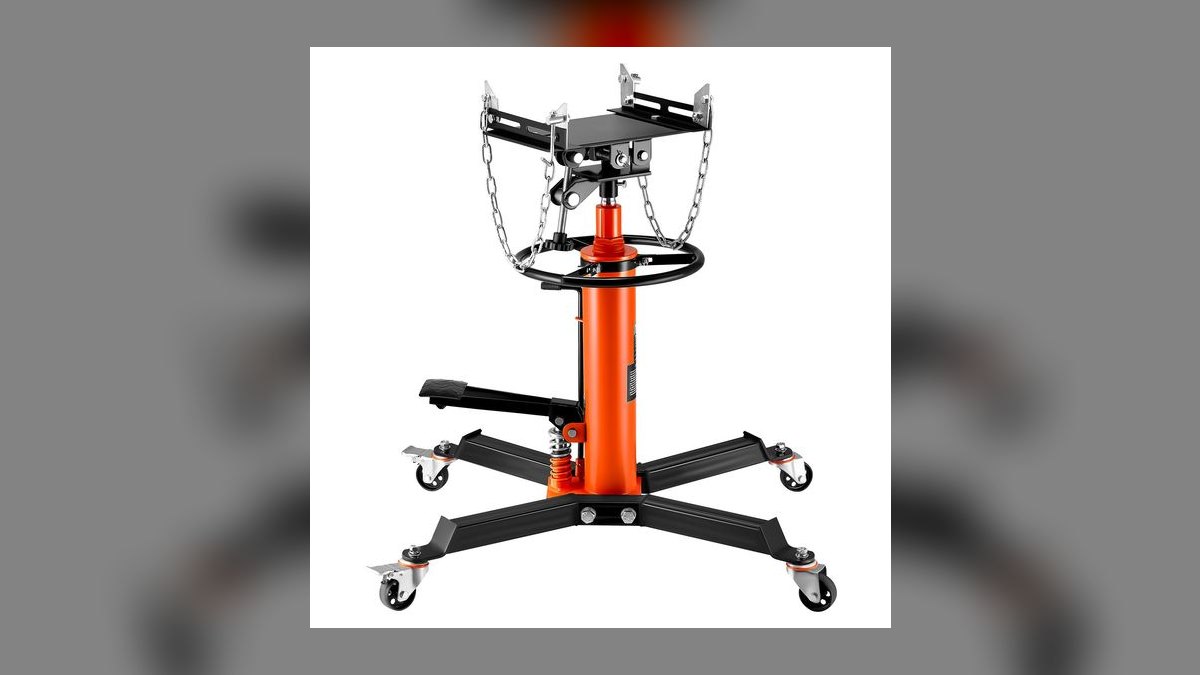

5. VEVOR 1,100 lb Telescopic Transmission Jack

Fifth overall and the clear value pick: about $130 buys a two-stage telescopic ram with a 33.5-to-67-inch lift range and 1,100 lb capacity. The saddle tilts 30 degrees for pan alignment, a foot-operated pedal frees your hands, and four 360-degree swivel casters make positioning easy. The 13.8-by-9.8-inch tray fits most car and light-truck pans, and the whole unit weighs roughly 96 lb.

This is for the home garage doing occasional transmission or transfer-case work who still needs real under-hoist reach. The hydraulics are the compromise — import quality that needs occasional bleeding, and no pro-duty rating for sustained use. Against the Sunex 7793B, you lose seven inches of top height and refinement while saving $300; against the Torin below, you gain reach for $30 less.

6. Torin Big Red TRA4055 Transmission Jack

Sixth because it delivers telescoping capability at about $160 with less refinement than the VEVOR just above it. The 1,000 lb half-ton rating covers car and light-truck units, and the foot pedal handles both pump and release so your hands stay on the load. An adjustable saddle with safety chain cradles the pan through the drop. Torin is a long-running Amazon staple with a broad, documented owner history.

This fits the weekend mechanic doing a once-a-year clutch or transmission job. The frame is lighter-duty than OTC or Sunex, and the hydraulics can seep over time, so it is not a tool to leave loaded overnight. Compared with the VEVOR, you pay $30 more for less lift range — the Torin's advantage is availability and a longer track record.

7. JEGS 79026 Low-Profile Transmission Jack

Seventh on the strength of capacity: 2,000 lb, double most jacks on this list, for around $280. That one-ton rating handles a loaded truck automatic or a performance build with genuine margin, where 1,000 lb units run at their limit. The low-profile design rolls under a lifted vehicle on a wide base, with an adjustable load saddle, safety straps, and a long pump handle for leverage.

Choose this when your heaviest unit makes a half-ton jack uncomfortable. The floor-style design is the trade — top height is limited, so it cannot pull a unit from a truck high on a two-post lift the way the telescoping Sunex models can. Against the OTC 1522A further down, the JEGS saves $240 at the cost of pro-shop durability and daily-use service life.

8. Strongway Low-Profile Transmission Jack

Eighth because it is the most affordable stable floor option at roughly $150, with a 1,000 lb rating and an 8.5-to-22.25-inch lift range. The high-grade steel base measures 19.1 inches wide by 16.1 inches long, which keeps it planted on a garage floor. A 360-degree rotating handle positions the load from any angle, and the saddle adjusts to pan shape. Northern Tool and Amazon both carry a long owner record.

This is the driveway mechanic's jack — for work on jack stands, not a lift. The 22.25-inch top height is the hard limit, roughly seven inches shorter than the OTC 1521A and nowhere near the telescoping picks. It also uses a manual pump with no foot pedal, so one hand stays occupied while the transmission comes down.

9. OTC 1522A 2,000 lb Transmission Jack

Ninth because the $520 price is hard to justify unless you pull heavy units daily. The 2,000 lb one-ton rating covers heavy truck transmissions and transfer cases that exceed a half-ton jack, and OTC's chassis brings safety chains, adjustable saddle brackets, and a wide stable base. The hydraulic pump is tuned for controlled lifting and lowering, which matters more than speed with 1,800 lb overhead.

This is for the pro shop where a tool has to survive years of daily use. Against the JEGS 79026 at $280, the extra $240 buys fewer failure points and longer service life at identical capacity — a bad trade for a home garage, a good one for a bay. It is also heavy and large enough that storage becomes a real consideration.

10. Sunex 7800A Low-Profile Transmission Jack

Tenth because its 800 lb rating is the lowest here, which narrows what it can safely lift, at about $240. That capacity suits front-wheel-drive transaxles and lighter car transmissions rather than truck automatics. In exchange you get a slim low-profile chassis that slides into bays where bigger jacks will not fit, plus Sunex's ratcheting saddle arms that adjust to the pan and tilt for alignment, and a safety chain.

This is a specialist's tool for a shop working mostly compact and FWD cars, where speed of positioning beats raw capacity. The 800 lb limit rules out heavy truck work outright, and floor-style reach means no under-hoist drops. Against the Strongway below it on price-per-pound, the Sunex costs $90 more but brings ratcheting saddle arms and a genuinely narrower body.

How we ranked these

We scored every jack on the work it actually does in a bay: rated capacity against realistic transmission weights, minimum and maximum lift height, saddle tilt and ratchet adjustment, base width and caster stability, and hydraulic control under load. Capacity and lift range carried 25%, saddle behavior 20%, build and stability 20%, hydraulic finesse 15%, low-profile versus telescoping fit 10%, and price-to-performance 10%.

We deliberately ignored star averages, sponsored placements, and peak lift speed. Aggregate ratings on jacks skew toward buyers who never loaded one past 400 pounds, so they measure shipping condition rather than durability. Paint quality and marketing capacity claims got no weight either, since a jack rated at exactly your transmission's weight is the wrong jack regardless of finish. Only manufacturer specs and published hands-on reporting counted.

What to look for

The single decision that matters is where the vehicle sits. If it is on a two-post lift, you need telescoping under-hoist reach — 67 to 74 inches — and a floor jack topping out at 22 inches is useless no matter how well built. If you work on jack stands in a driveway, a low-profile unit at 8.5 inches minimum is the only thing that fits. Capacity is the second filter, not the first.

The common mistake is buying at the capacity line. A loaded truck automatic with a torque converter full of fluid runs 250 to 350 pounds, but transfer cases, bellhousings, and residual fluid add up fast. A 1,000 lb jack under a 950 lb assembly has no margin for the shift that happens when the unit tips. Step to one ton for truck work and stop worrying about it.

Related questions

How much does a transmission actually weigh?

A typical front-wheel-drive transaxle runs 100 to 200 pounds dry. A cast-iron truck automatic with the torque converter attached and fluid still inside can reach 250 to 350 pounds. Heavy-duty diesel units and transmissions bolted to a transfer case push past 400. Weigh your worst case, then buy a jack rated well above it rather than at it.

Can I use a regular floor jack instead of a transmission jack?

No. A floor jack has a small round saddle designed to lift a chassis point, not to cradle an angled pan. It cannot tilt to match the transmission, has no chain or strap to bind the unit down, and offers no adjustment as the assembly shifts during removal. The unit will slide off. Use the right tool.

What is the difference between a two-stage and a single-stage telescoping ram?

A single-stage ram extends once, giving a moderate lift range like the Ranger RTJ-1100. A two-stage ram nests a second cylinder inside the first, so the Sunex 7793B travels from 35.5 inches all the way to 74. Two-stage matters when you need to reach a truck high on a lift and then lower the unit to a bench.

Do transmission jacks need hydraulic fluid maintenance?

Yes. Import hydraulics in particular trap air during shipping and need bleeding before first use, then occasionally afterward. Symptoms are spongy pedal feel, a ram that creeps down under load, or refusal to reach full height. Keep the reservoir topped with the specified hydraulic jack oil, never brake fluid or motor oil, which swell and destroy the seals.

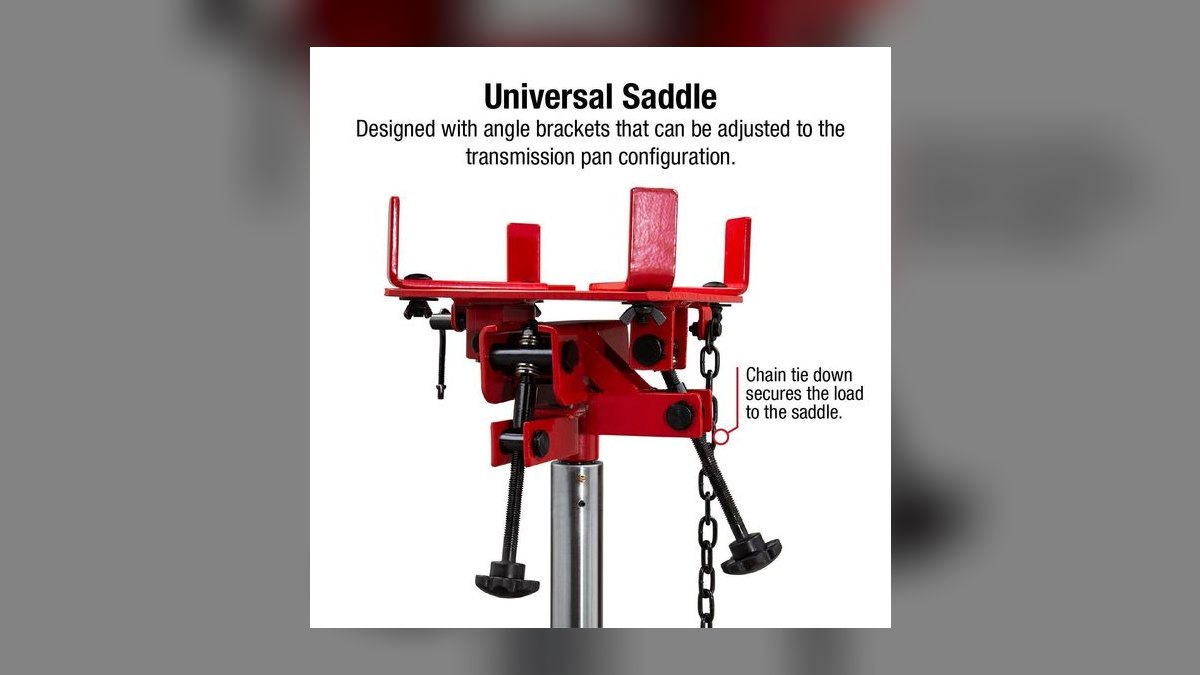

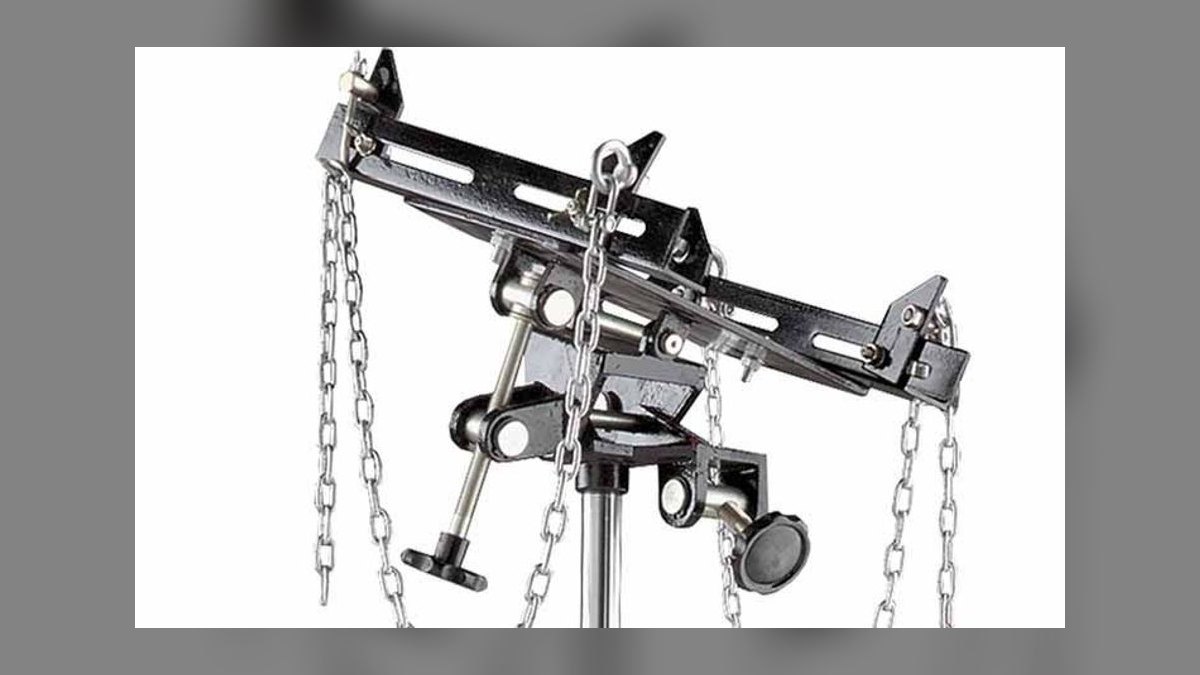

How do I keep a transmission from sliding off the saddle?

Set the saddle tilt to match the pan angle before you take the weight, then adjust the arms or brackets so they contact the case rather than the thin stamped pan. Run the safety chain or strap over the top of the housing and cinch it tight. Recheck the strap after the last bellhousing bolt comes out, when the balance changes.

Is an air-assisted transmission jack worth the premium?

For a shop pulling several units a week, yes. The Sunex 7796 costs roughly $130 more than the manual 7793B, but the air line does the lifting so your knee is not pumping a pedal a hundred times a day. For a home garage doing one transmission a year, that money is better spent elsewhere, and the manual foot pump works fine.

Why do low-lift jacks have a rotating pump handle?

Because in a working bay you rarely get to stand where the handle wants you. The OTC 1521A rotates its handle a full 360 degrees so you can pump from beside the jack, from the rear, or from wherever the lift arms and exhaust are not in the way. It is a small feature that saves real frustration under a vehicle.

Should I buy one-ton capacity even for car work?

Not necessarily. A one-ton jack like the JEGS 79026 or OTC 1522A is heavier, bulkier, and slower to position. If your work is front-wheel-drive transaxles and light car transmissions, a half-ton unit gives adequate margin and moves around the shop far more easily. Buy the capacity your heaviest realistic job needs, not the biggest number available.

FAQ

What is the difference between a low-profile and a telescoping transmission jack?

A low-profile floor jack stays low and rolls under a vehicle already raised on a lift or stands, topping out around 22 to 30 inches. A telescoping under-hoist jack uses a two-stage ram to reach 67 to 74 inches, so it pulls a unit from a vehicle high on a two-post lift and then lowers it to a work table.

What capacity transmission jack do I need?

For most front-wheel-drive transaxles and car transmissions, a 1,000 lb half-ton jack has adequate margin. For heavy truck automatics, transfer cases, or performance builds, step up to a 2,000 lb one-ton jack like the JEGS 79026 or OTC 1522A so you are not operating at the rated limit with a shifting load.

Do I really need a saddle that tilts?

Yes. Transmission pans sit at an angle in the vehicle, and a tilting adjustable saddle lets you match that angle so the unit does not slide as you break it loose. It is arguably the most important feature on the jack, ahead of a few extra pounds of rated capacity or a faster pump.

Is a foot pedal or air assist worth the extra money?

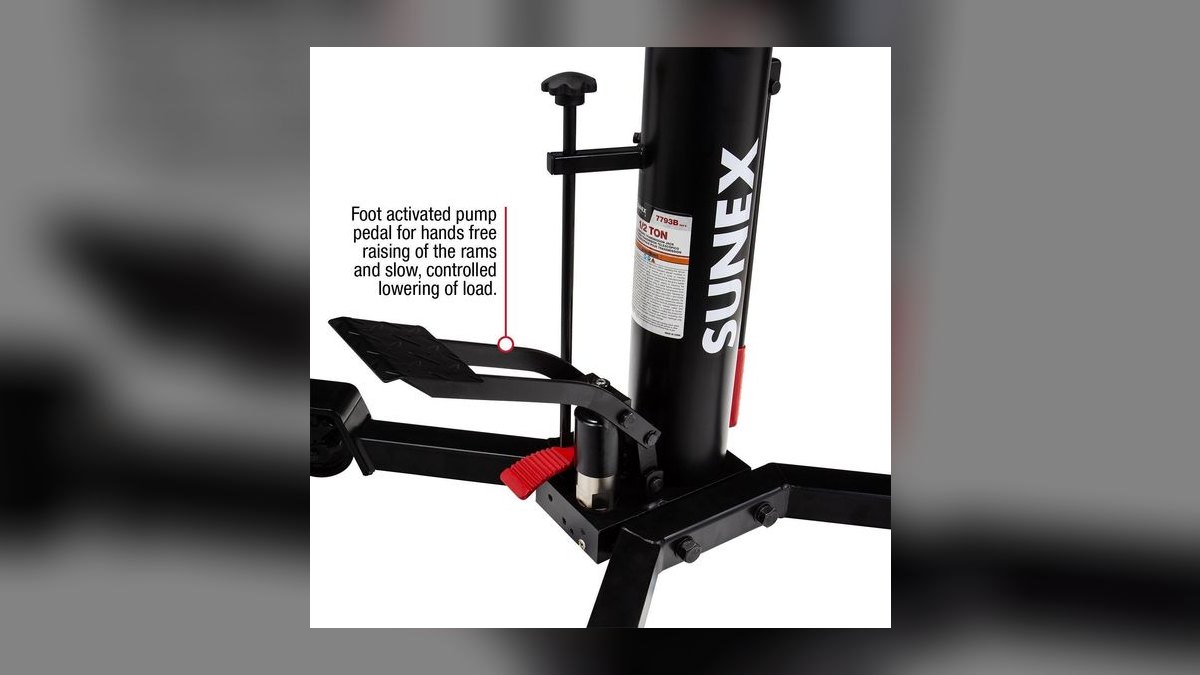

If you pull transmissions often, yes. A foot pump like the Sunex 7793B or air assist like the 7796 raises the rams without tying up your hands, so you can steady and align the unit while it lifts. For once-a-year driveway jobs, a manual handle is perfectly adequate and cheaper.

What is the best transmission jack for a home garage?

The VEVOR 1,100 lb two-stage telescopic at around $130 gives genuine 33.5-to-67-inch telescoping reach and a 30-degree tilting saddle for a fraction of pro money. If you work on jack stands rather than a lift, the Strongway half-ton low-profile at $150 is the better fit because it stays low and stable.

How low does a transmission jack need to go?

Depends on your setup. Driveway work on jack stands needs a minimum height near 8.5 inches, like the Strongway. Working under a car already on a lift, the OTC 1521A drops to 6.5 inches to slide beneath a low-hanging unit. Telescoping under-hoist jacks start much higher, around 33 to 35 inches, by design.

Are safety chains and straps really necessary?

Yes, always. The saddle holds the transmission's weight but nothing stops it from rotating or sliding when the balance shifts as the last bolts come out. A chain or strap binding the case to the saddle is the difference between an awkward moment and a transmission on the floor with you underneath it.

Can a transmission jack lift an engine?

No. Transmission jacks are designed for a load sitting on a saddle beneath it, not for a hanging load, and their capacity and geometry are wrong for an engine. Use an engine hoist or leveler. Attempting to balance an engine block on a transmission saddle is unstable regardless of how the capacity numbers compare.

Why is the Sunex 7793B rated Best Overall over the cheaper options?

Its 35.5-to-74-inch two-stage range covers both lift work and lowering to a bench, the foot pump frees both hands during alignment, and the four-arm tilting saddle holds odd-shaped pans level. At 167 pounds the base stays planted under load. That combination of reach, saddle control, and proven durability is what a working bay needs daily.

How much should I expect to spend on a transmission jack?

Import telescoping units start around $130. Solid mid-tier floor jacks land between $150 and $300. Professional-grade units from OTC, Sunex, and Ranger run $300 to $560, with air-assisted models at the top. Spend more for daily shop use, where hydraulic refinement and a chassis that survives years of abuse pay for themselves.
