How do I install a leveling kit on a 2027 F-150 in 2027?

Strut spacers versus replacement coilovers

Every leveling decision on a 2027 F‑150 comes down to two paths, and they behave very differently once the truck is back on the ground.

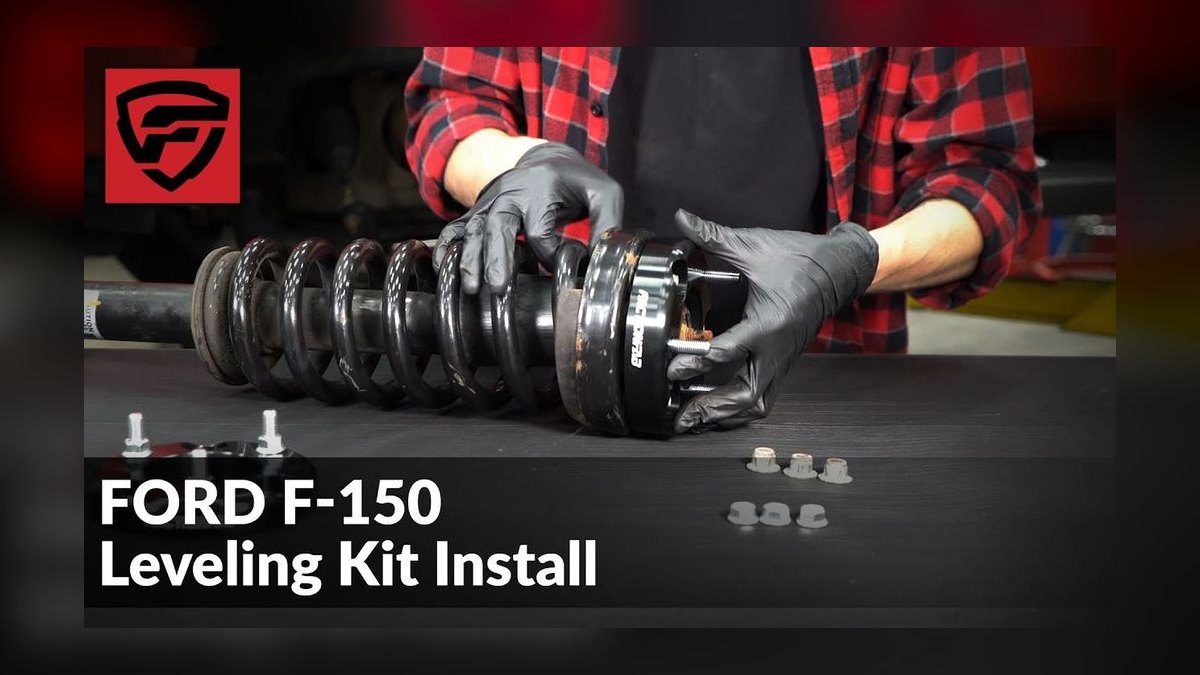

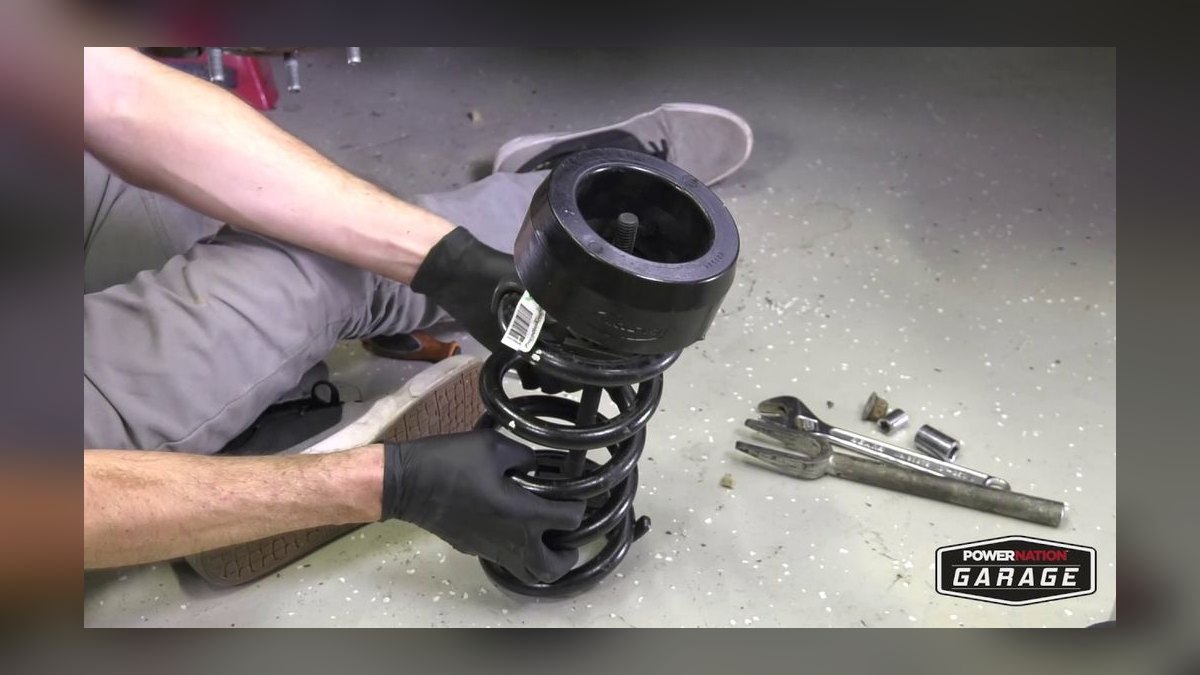

Path one: the strut-top spacer. This is a machined billet aluminum or steel puck, typically 1.5 to 2.5 inches thick, that bolts between the top hat of the factory coilover and the strut tower on the frame. Three studs pass through it. The factory strut, spring, and top mount stay exactly as they came from the assembly plant. The spacer pushes the whole strut assembly downward relative to the body, which extends the front end and raises ride height by very close to the spacer thickness — usually within a quarter inch.

The appeal is cost and reversibility. A spacer kit is the cheapest way to level a truck, the parts are simple enough that failure modes are obvious, and you can pull it back out in an afternoon and be at stock height. You are not changing spring rate, so the truck rides essentially the same as it did stock. If you liked the factory ride quality, a spacer preserves it.

The cost is geometry and travel. A spacer does not give the suspension any more downtravel — it consumes it. The strut still has the same stroke it always had, but you have shifted where in that stroke the truck sits at rest. At full droop the lower control arm now hangs at a steeper angle than Ford designed for, which means the CV axle on a 4x4 runs at a steeper angle too, and the upper ball joint sits closer to the edge of its articulation range. On a truck that spends its life on pavement this rarely matters. On a truck that gets airborne on washboard roads or drops a front wheel into a rut, it matters a great deal.

Path two: preassembled replacement coilovers or struts. Here you throw away the factory strut assembly entirely and bolt in a complete new unit — new shock body, new spring, new top mount, assembled and ready to install. The lift comes from a taller spring, a longer shock body, or an adjustable perch you can dial in. Reputable performance shock manufacturers all sell versions for the F‑150 platform, and most give you 0 to 2.5 or 0 to 3 inches of adjustment range in one part number.

The upside is that you are engineering the lift rather than shimming it. A properly specified replacement coilover has a spring rate matched to the new ride height, valving matched to that spring, and a shock body long enough that you still have real downtravel at the new height. Trucks running heavier front-end loads — a plow prep package, a winch bumper, a steel skid plate — genuinely need the extra rate. A stock spring compressed under a 150-pound bumper will sag right back out of level within a month, and a spacer does nothing to fix that because the spring is unchanged.

The downside is price and complexity. A quality coilover set costs multiples of a spacer kit. Adjustable versions need setup: you dial in preload, measure, adjust again, remeasure. And you have changed the ride, which is not always for the better — a stiffer spring on an unloaded truck can make the front end skip on expansion joints.

A third variant worth naming: the strut-mounted coil spacer, which sits between the spring and the lower perch rather than on top of the assembly. It requires disassembling the strut with a spring compressor. It is more work than a top-hat spacer for the same result and carries real injury risk if the compressor slips. Unless a specific kit demands it, skip it.

Choosing the right path for your truck

The decision hinges on four things: how much lift you actually want, whether you carry weight up front, what tire you plan to run, and how much the truck sees off pavement.

Start with lift amount. A 2027 F‑150 leaves the factory with roughly 1.5 to 2 inches of rake — the rear sits higher than the front so the truck squats level under load. Leveling means erasing that rake, not exceeding it. If you install a 2.5-inch spacer on a truck that only had 1.75 inches of rake, you have not leveled it — you have lifted the nose, and now the truck noses up, headlights point at treetops, and rain sheets toward the cowl instead of away. Measure your truck's actual rake before ordering anything.

Second, weight. If the front is stock, a spacer is a rational choice. If you have already added or plan to add a steel bumper, winch, or plow prep, a spring that can carry that load is not optional.

Third, tire size. Leveling on the F‑150 is usually a means to fit larger tires, and the constraint is not vertical clearance at ride height — it is what the tire hits at full lock and full compression. The forward inner fender liner, the lower control arm, and the sway bar end link are the usual contact points. Trimming the plastic liner and installing a set of cab-mount bushings or a cab-mount "chop" are common, and no leveling kit alone changes those clearances meaningfully.

Fourth, off-pavement use. If the truck sees washboard, whoops, or high-speed dirt, the downtravel a spacer eats becomes the limiting factor, and a longer-body replacement coilover is worth its price.

mermaid flowchart TD A["Measure all four corners, record"] --> B["Chock rear, lift by frame, stands"] B --> C["Remove front wheels"] C --> D["Disconnect sway bar link, ABS wire, damper plug"] D --> E["Support lower arm on jack"] E --> F["Remove lower strut bolt, then 3 tower nuts"] F --> G["Extract strut, photograph clocking"] G --> H["Bolt spacer to strut top hat"] H --> I["Reinstall, hand start all fasteners first"] I --> J["Jack lower arm to align lower bolt"] J --> K["Torque to spec, arm bolts at ride height"] K --> L["Wheels on, lower truck, settle, remeasure"] L --> M["Alignment same day"] M --> N["Recheck torque and measure at 100 miles"] </parameter> </invoke>

For replacement coilovers, the sequence is nearly identical through step G. The difference is that instead of adding a spacer you simply install the new preassembled unit in place of the old one, and if the coilover is height-adjustable you set the perch to the manufacturer's starting position before installation rather than trying to adjust it in the truck. Install, measure, and if you are off target, pull it back out and adjust. This is why people who have done it before set both sides to the same measured perch position on the bench with a caliper.

What not to do. Do not disassemble a factory strut without a proper spring compressor and do not improvise one — a compressed truck spring stores enough energy to cause serious injury. Do not reuse a stretched or corroded strut tower nut; replace hardware the kit tells you to replace. Do not skip the diff drop bracket if the kit includes one. And do not drive it to the alignment shop forty miles away — get aligned locally and soon.

After the install. Recheck every fastener you touched at around a hundred miles. Look at the CV boots and the brake lines at full lock both directions to confirm nothing is rubbing or stretched. Turn the wheel lock to lock on a lift or with the front raised and watch the tire against the fender liner and the upper control arm. Any contact you can see when the suspension is unloaded will be worse when it compresses.

Related questions

Does a leveling kit void the factory warranty?

It does not void the whole warranty. A manufacturer can decline a claim on a component if it can show the modification caused the failure — a worn CV joint after a lift, for instance. Unrelated failures remain covered. Dealer interpretation varies, so keep your receipts and documentation.

Do I need new upper control arms with a 2-inch level?

Often yes, if you want a correct alignment. At 2 inches, camber frequently exceeds the factory adjustment range on the F‑150 platform. Aftermarket upper arms with corrected geometry bring it back into spec and add ball joint articulation. Some trucks align fine without them — measure before buying.

Will a leveling kit let me fit 34 or 35-inch tires?

Not by itself. Leveling raises the body but does not change what the tire contacts at full steering lock and full compression. Fitting larger tires on the F‑150 usually also requires trimming the forward inner fender liner and, at larger sizes, addressing the cab mount.

Should I add a rear block to keep some rake?

Only if you carry weight. Factory rake exists so the truck sits level under load. If you tow or haul regularly, leaving some rake is smart. If the bed is empty most of the time, a pure level looks and drives better.

How long does a leveling kit last?

The spacer itself is a solid billet part with no wear items and effectively lasts indefinitely. What wears is everything downstream — CV joints, ball joints, and tie rod ends all run at less favorable angles and may need replacement sooner than on a stock truck.

FAQ

Can I install a leveling kit myself without a lift?

Yes. A spacer kit is one of the more approachable suspension jobs and is regularly done on jack stands in a driveway. What you need is a good floor jack, jack stands rated well above the truck's front axle weight, a torque wrench that covers the high values suspension fasteners use, a breaker bar, and penetrating oil. The genuinely difficult part is not the procedure — it is corroded fasteners. If the truck has lived through several salted winters, budget extra time and have a plan for a seized strut tower nut before you start rather than after.

How much lift do I actually get from a 2-inch spacer?

Usually close to the nominal number but not exactly. A 2-inch spacer typically produces somewhere around 1.75 to 2 inches of measured gain at the fender, because the suspension geometry does not translate spacer thickness one-for-one and because the truck settles over the first few hundred miles. Heavier front-end trucks gain slightly less. This is why the before-and-after measurement matters: it tells you what your specific truck did, rather than what the box claimed.

Do I have to get an alignment after installing a leveling kit?

Yes, and treat it as part of the job rather than an optional follow-up. Raising the front end changes camber and toe immediately and significantly. An unaligned leveled truck will destroy the inside or outside shoulder of a front tire within a few hundred miles of highway driving. Schedule the alignment for the same day you finish the install and drive as little as possible in between.

Does leveling hurt ride quality?

A spacer leaves spring rate and damping unchanged, so ride quality stays close to stock at normal ride height. What changes is behavior at the extremes — because the spacer consumes downtravel, the front end tops out sooner over dips and unloads differently. Replacement coilovers change ride quality more directly since you have new springs and new valving. Whether that is better depends entirely on how well the rate matches the weight the truck actually carries.

Will the driver assistance systems still work after leveling?

Possibly, but do not assume. Forward radar and camera systems on a modern F‑150 are aimed relative to the vehicle's attitude, and changing that attitude can move their aim point. Some systems tolerate a small change; others require a recalibration procedure. Check the specific requirements for your truck, and if adaptive cruise or collision warning throws a fault after the install, treat it as a calibration issue first.

Is a leveling kit reversible?

A strut-top spacer is fully reversible — remove it, reinstall the factory strut, and get an alignment back to stock specs. Replacement coilovers are reversible only if you kept the original strut assemblies, which most people do not. If you think you might sell the truck and want it stock, keep the factory parts and label them. Note that reversal requires the same alignment step as installation.
