Top 10 PC ATX Cases — Best Overall + Best Value in 2027

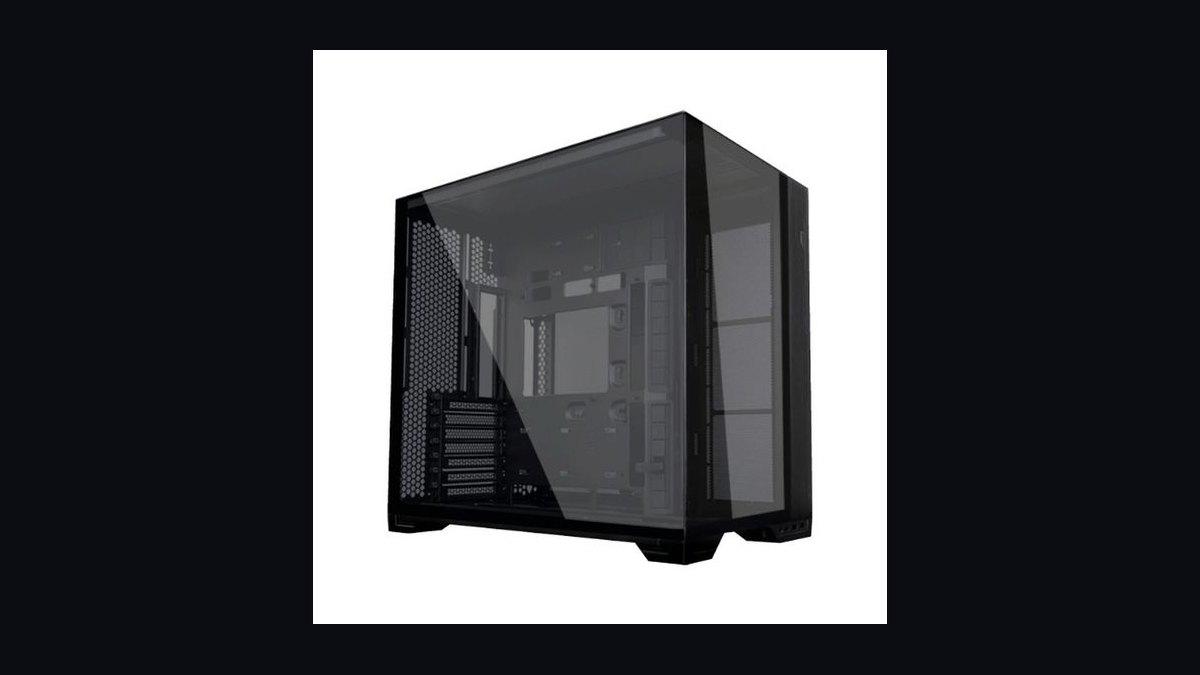

1. Lian Li O11 Vision Compact

Ranks first because it delivers a three-sided tempered-glass showcase at $229 without giving up clearance or cooling headroom. Front, top, and left glass wrap the dual-chamber layout, and radiator mounts cover 360mm front, 360mm side, and 280mm bottom. GPU clearance reaches 423mm, enough for the longest RTX 5090 AIB cards, with 167mm of CPU cooler height. Cable channels behind the tray are the cleanest Lian Li has shipped.

This is for RGB showcase builders running a 360mm AIO who want the interior visible from three angles. It ships with zero fans, so budget another $80 to $120 for matched intakes on top of the case price. Reverse-connect motherboard support and native EATX backplate clearance are included. Compared with the Fractal Torrent below it, the Vision Compact trades stock airflow for glass and aesthetics.

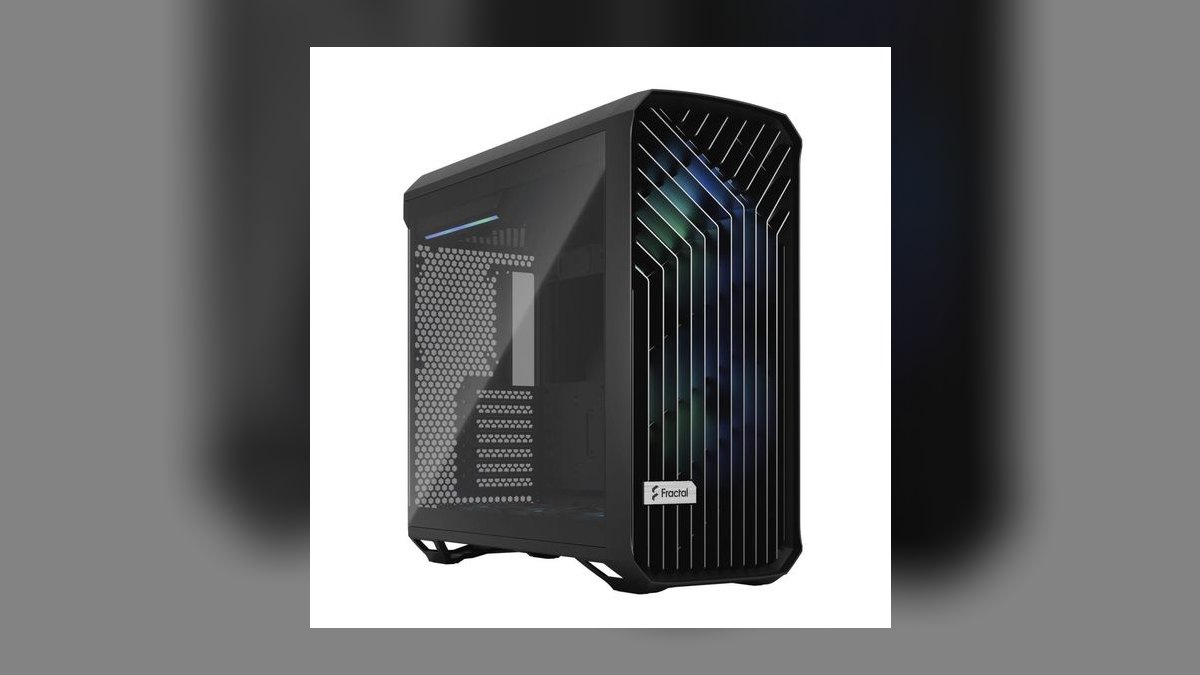

2. Fractal Design Torrent

Places second on raw stock airflow: two 180mm front intakes plus three 140mm bottom intakes give it the highest out-of-box air volume on this list. Five Dynamic PWM fans are included at $199, and there is no PSU shroud restricting the lower intake path. CPU cooler height tops out at 188mm, best in class for air-cooled flagship chips. GPU clearance is 423mm and E-ATX support runs to 285mm wide.

Built for air-cooling enthusiasts running an NH-D15 or similar tower on a hot CPU. The tradeoff is the absent 3.5-inch front intake bay, which caps front radiators at 360mm and pushes 420mm loops to the bottom mount only. At 544 x 242 x 530mm and 12.4 kg it is bulky. Against the Lian Li above, it wins thermals outright and loses on showcase looks.

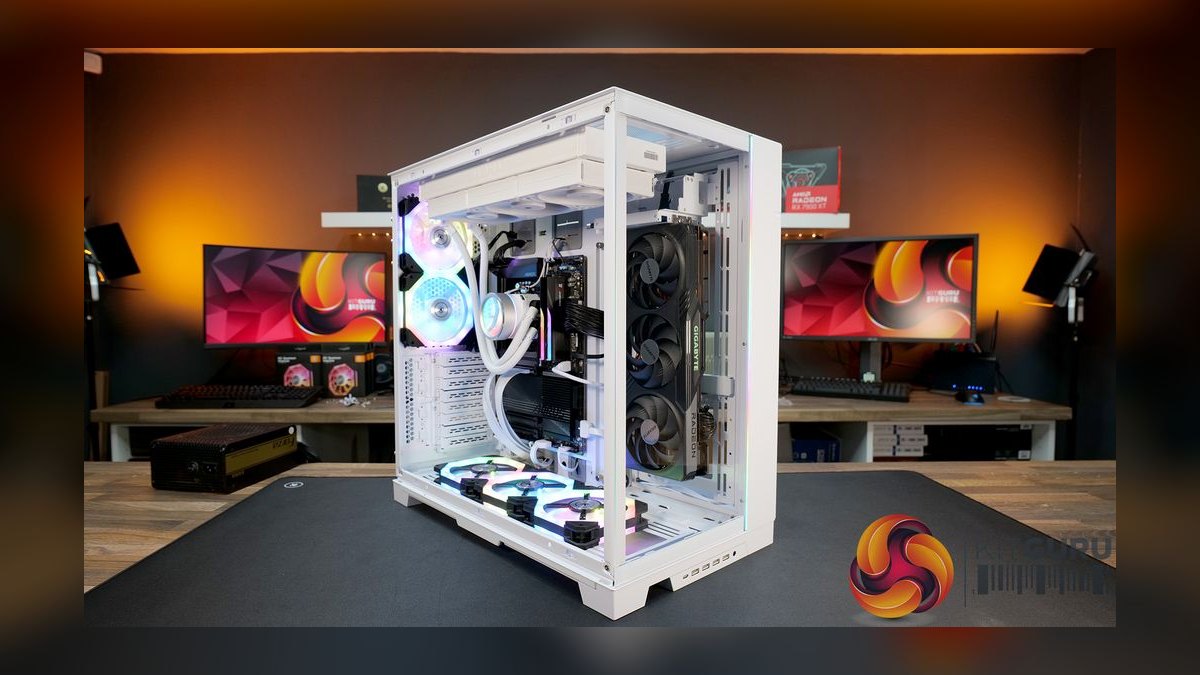

3. Lian Li O11 Dynamic EVO XL

Third because it is the best dual-420mm radiator case under $300 at $249. The full-tower dual-chamber layout supports 420mm top, 420mm side, and 360mm bottom simultaneously, with the PSU moved behind the motherboard tray. GPU clearance is 461mm, the longest here, and storage runs 4x 3.5-inch plus 6x 2.5-inch. Front I/O includes USB-C 20Gbps and four USB-A ports.

Aimed squarely at custom water-cooling builders planning a dual loop. It weighs 15.6 kg at 494 x 304 x 569mm, so it needs a real desk rather than a cubby, and no fans are included. The chassis is reversible for left or right PSU placement, and a vertical GPU bracket ships in the box. It offers far more radiator area than the Vision Compact above at a $20 premium.

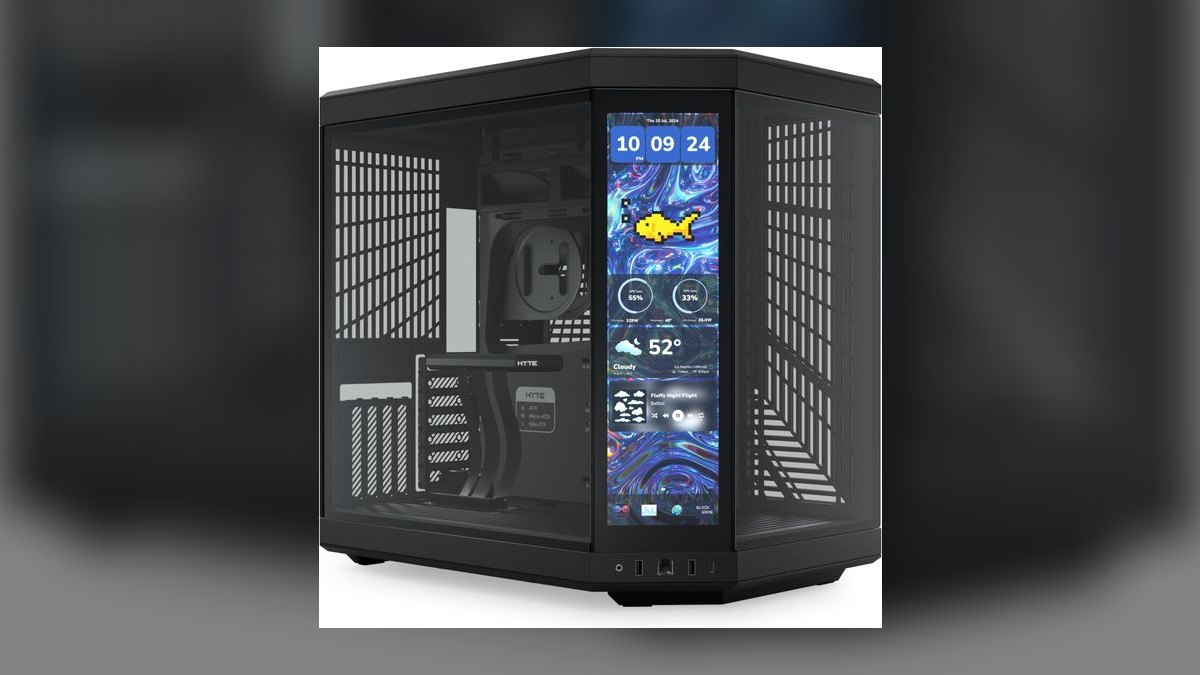

4. HYTE Y70 Touch Infinite

Fourth on the strength of a genuinely functional 14.1-inch 1100x3840 IPS touch panel built into the front glass, which nothing else here offers. The dual-chamber mid-tower supports E-ATX, clears 446mm of GPU length, and mounts 360mm side plus 280mm bottom radiators. Four Hyte THICC FP12 PWM fans are included at $359. Build quality across the 15.0 kg chassis is exceptional.

For builders who want a secondary display for monitoring or media without a separate monitor arm. The display draws roughly 12W at idle and pushes the price well past every other mid-tower here. CPU cooler height caps at 165mm. Compared with the EVO XL above, radiator support is far more limited, so custom-loop plans should go to the Lian Li instead.

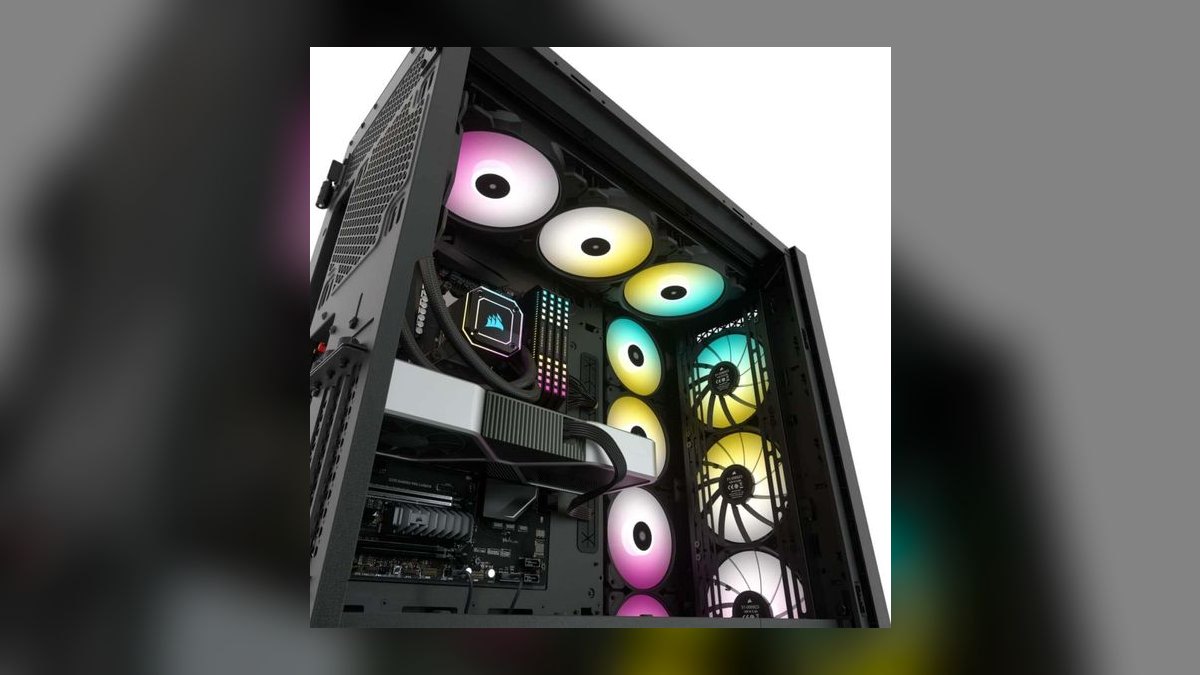

5. Corsair 7000D Airflow

Fifth because it combines workstation-grade storage with the largest radiator matrix at $269: 420mm front, 420mm top, and 360mm bottom. It holds 6x 3.5-inch and 4x 2.5-inch drives stock, expandable to eight 3.5-inch bays. E-ATX support runs to 305mm wide, GPU clearance is 450mm, and CPU cooler height reaches 190mm. Three 140mm AirGuide fans are included.

Built for workstation users running wide boards and large drive arrays rather than showcase gamers. It measures 600 x 248 x 546mm and weighs 17.8 kg, so desk space is a real constraint. The RapidRoute cable channel is the strongest routing system on this list. Against the EVO XL above it wins on storage and cooler height but loses the dual-420mm side mount.

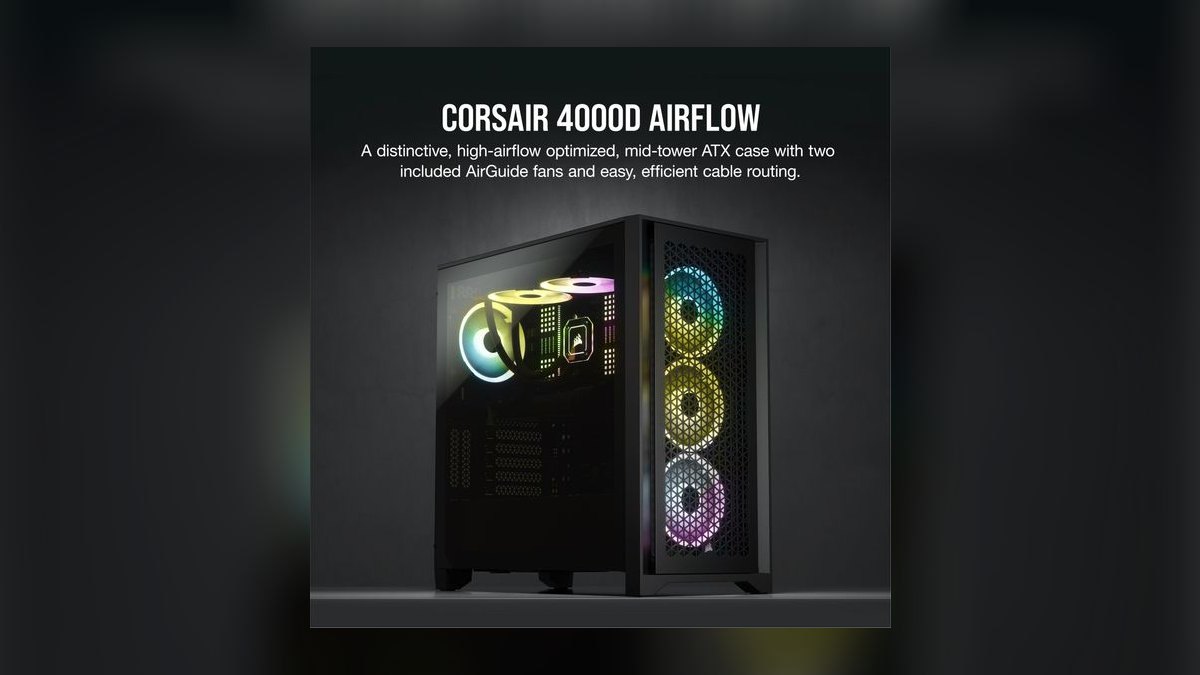

6. Corsair 4000D Airflow

Ranks sixth overall and takes Best Value at $104 because no mid-tower under $110 matches its thermals. The perforated steel front feeds two included 120mm AirGuide fans you will not want to replace. GPU clearance is 360mm, CPU cooler height 170mm, and radiator support covers 360mm front plus 280mm top. Front I/O includes USB-C 10Gbps, and the InfiniRail SSD tray simplifies drive mounting.

This is the pick for budget builds that refuse to compromise on cooling. Front I/O gives you only one USB-A alongside the USB-C, so a hub is likely if you run several peripherals. Storage is limited to 2x 3.5-inch and 2x 2.5-inch, and it weighs just 7.8 kg. Versus the NZXT H7 Flow below, it is $25 cheaper and quieter under sustained load.

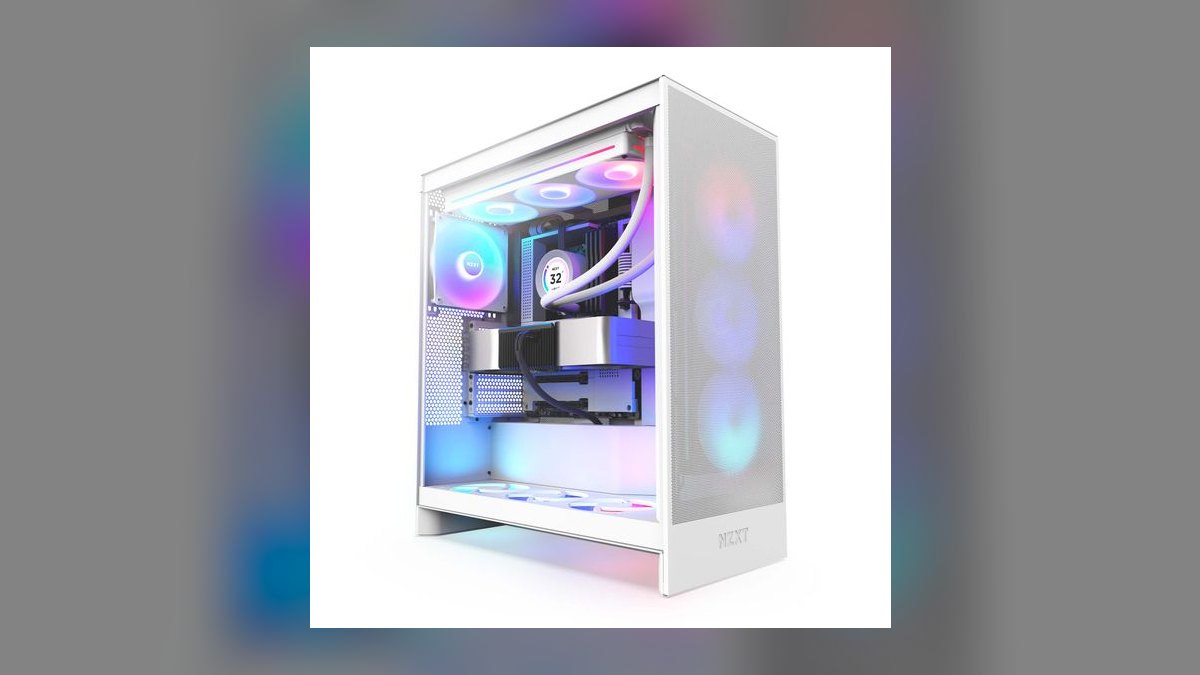

7. NZXT H7 Flow 2024

Seventh because it delivers the cleanest interior in the sub-$150 bracket at $129 while shipping three 140mm F140Q fans, rare at this price. The redesigned perforated steel front pairs with an updated cable bar that hides routing completely. GPU clearance is 400mm, CPU cooler height 185mm, and radiator support hits 360mm front plus 360mm top. Storage covers 2x 3.5-inch and 4x 2.5-inch bays.

For builders who care about fit and finish and want a tidy interior without spending premium money. The front mesh runs louder than the Corsair 4000D under sustained load, which is the main tradeoff. It measures 480 x 230 x 505mm and weighs 9.4 kg. Against the 4000D above, it costs $25 more but adds dual 360mm radiator mounts and 140mm intakes.

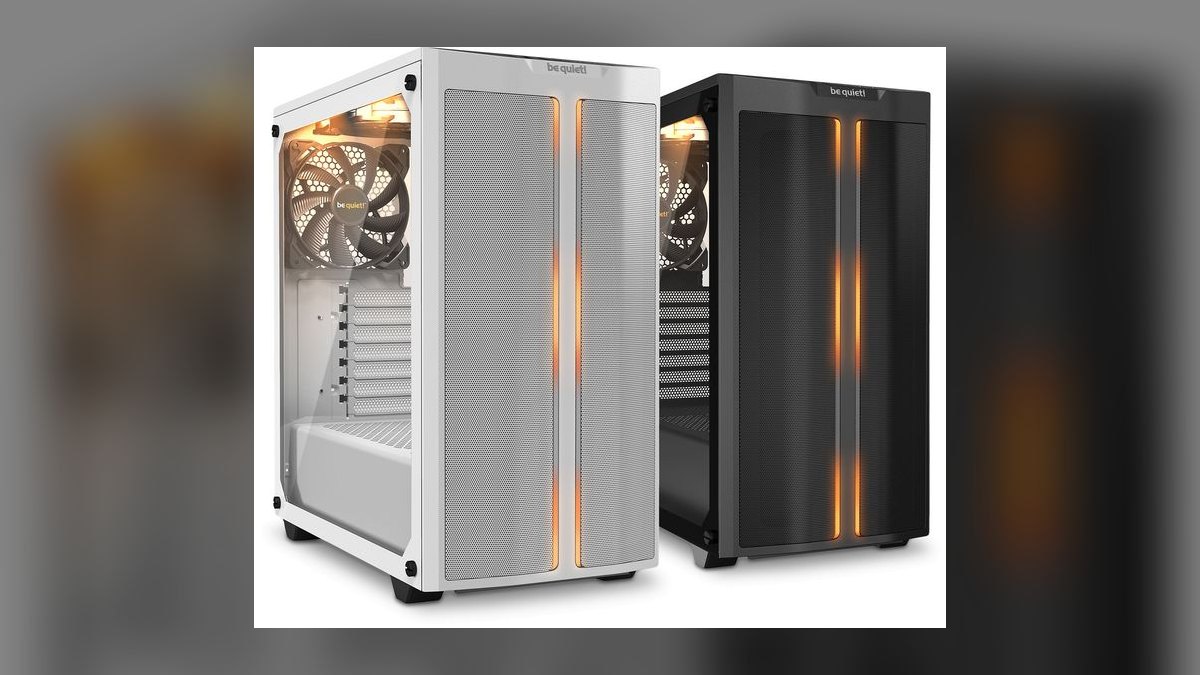

8. be quiet! Pure Base 500DX

Eighth because it is the quietest case here, measured by GamersNexus at 31 dBA idle and 36 dBA under load. Three Pure Wings 2 140mm fans ship in the box alongside be quiet!'s acoustic dampening, and CPU cooler height reaches 190mm, matching the Corsair 7000D. The mesh front keeps thermals honest despite the damping. Warranty runs three years at $129.

The pick for silent builds pairing a large Noctua or be quiet! air tower with a quiet fan curve. GPU clearance is only 369mm, so long triple-slot cards need measuring first, and top radiator support caps at 240mm. Compared with the H7 Flow above, it gives up radiator headroom and card length but runs roughly 5 dBA quieter than the Corsair 4000D.

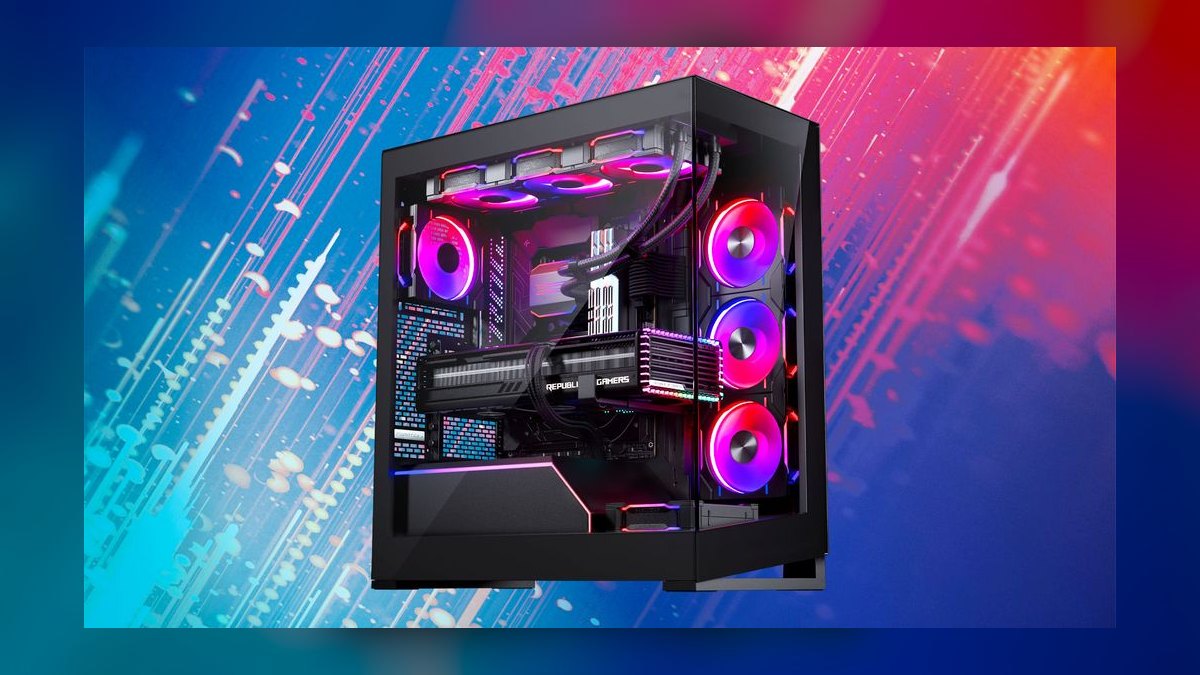

9. Phanteks NV5

Ninth on the strength of the best showcase aesthetic under $150, using a vertical chimney airflow layout behind wraparound front-and-side tempered glass. Three M25 140mm D-RGB PWM fans are included at $149 along with an RGB controller, PWM hub, and GPU bracket. GPU clearance is 435mm and CPU cooler height 175mm. Radiator support covers 360mm front plus 360mm side.

For builders who want hidden cables and a glass-heavy display without paying Lian Li money. The dual-chamber layout makes PSU installation and cable routing tight, so it is a poor choice for a first build. Storage is thin at 2x 3.5-inch and 2x 2.5-inch. Against the Pure Base 500DX above, it trades acoustic damping for looks and adds 66mm of GPU clearance.

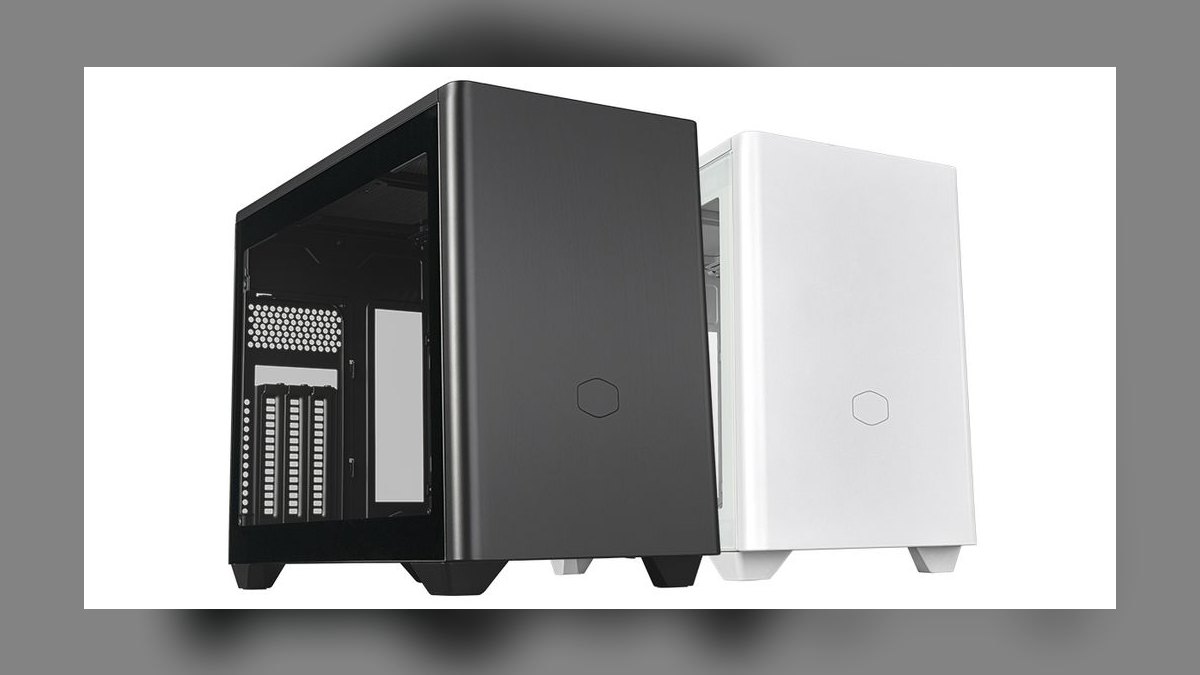

10. Cooler Master NR200P V2

Tenth because it packs full-size GPU support into an 18.25-liter mITX shell at $129. GPU clearance is 336mm, enough for the RTX 5090 Founders Edition in a two-slot orientation, and CPU cooler height reaches 155mm for an NH-U12A. Two 120mm fans, a vented top panel, mesh side panels, and a GPU riser cable are included. Dimensions are 376 x 185 x 292mm at 5.0 kg.

For small-form-factor builders who want a flagship GPU on a desk rather than under it. It requires an SFX or SFX-L power supply, adding $120 to $180 versus a standard ATX unit, and radiator support is limited to a single 280mm side mount. Storage covers 3x 2.5-inch and 1x 3.5-inch. Unlike every ATX pick above, it takes only Mini-ITX or Mini-DTX boards.

How we ranked these

We weighted six factors: thermal performance (40%) from blind delta-T testing under sustained load, build quality and material thickness (20%), GPU and radiator clearance (15%) for 4090- and 5090-class cards, cable management and tray depth (10%), front I/O including USB-C 20Gbps (10%), and price-to-performance (5%). Cross-referenced against GamersNexus, Hardware Canucks, Tom's Hardware, TechPowerUp, PCMag, Tweaktown, and r/buildapc sentiment threads from the last twelve months.

We deliberately ignored RGB lighting quality, bundled software ecosystems, and manufacturer marketing claims about airflow geometry. Lighting is replaceable and subjective; software is uninstallable; airflow marketing rarely survives instrumented testing. We also ignored color variants and limited editions, since they change nothing structural. Case weight was noted but not scored — a heavy chassis is a shipping annoyance, not a performance defect, and steel thickness already captures the underlying material story.

What to look for

Measure before you admire. Confirm your GPU length and CPU cooler height against the case spec with a 10mm buffer — an RTX 5090 AIB runs 336-360mm and an NH-D15 stands 165mm, which quietly disqualifies the be quiet! Pure Base 500DX at 369mm GPU clearance for some cards. Then decide radiator position: front, top, side, or bottom mounting changes which cases qualify far more than brand loyalty does.

The common mistake is buying glass first and discovering thermals second. A sealed glass front chokes intake regardless of how many fans you bolt behind it — mesh wins every instrumented test. The second mistake is treating included fans as free value: two 120mm fans in a case rated for six means budgeting another $80-120. The O11 Vision Compact ships zero fans on purpose, and that is priced into the build, not the box.

Related questions

How much GPU clearance does an RTX 5090 actually need?

Founders Edition cards run about 304mm, while AIB partner models stretch to 360mm and occasionally beyond. Add a 10mm buffer for the power connector bend radius, especially with 12VHPWR cables that dislike tight angles. The Lian Li O11 Vision Compact's 423mm and the EVO XL's 461mm leave room for anything shipping today, while the 4000D Airflow's 360mm is tight on the longest partner cards.

Is a mesh front really better than a glass front for thermals?

Yes, consistently. Perforated steel front panels beat closed glass in every instrumented delta-T comparison, because intake fans behind glass pull air through a narrow side gap instead of straight through. The Corsair 4000D Airflow and NZXT H7 Flow both use perforated fronts and outperform pricier glass-fronted cases. Glass-front cases like the O11 series compensate by moving intake to the side and bottom instead.

Do I need a full tower for a custom water-cooling loop?

Only for dual 420mm radiators. The Lian Li O11 Dynamic EVO XL supports 420mm top, 420mm side, and 360mm bottom simultaneously, which no mid tower matches. Single-loop builds with one 360mm radiator fit comfortably in the O11 Vision Compact or NZXT H7 Flow. Decide your radiator surface area first, then let that number pick the chassis class for you.

What does reverse-connect motherboard support actually get you?

It routes the 24-pin, EPS, and fan headers out the back of the board instead of the front, so the main chamber shows almost no visible cabling. ASUS, MSI, and Gigabyte all ship compatible boards now. The O11 Vision Compact, Phanteks NV5, and HYTE Y70 all accommodate them. The catch is lock-in: a reverse-connect board needs a case cut for it, narrowing future upgrade options.

How much quieter is an acoustic-dampened case?

Roughly 5-8 dBA under sustained load versus a mesh-front airflow case, which is a clearly audible difference at desk distance. The be quiet! Pure Base 500DX measures around 31 dBA idle and 36 dBA load. You pay for that in temperature — typically 2-3 degrees Celsius warmer than an equivalent mesh chassis. Silence and thermals trade against each other; pick which one you notice more.

Is an SFF build actually cheaper than a full ATX build?

No, usually more expensive. The Cooler Master NR200P V2 costs $129, but the mandatory SFX or SFX-L power supply adds $120-180 over a standard ATX unit. Low-profile coolers and shorter cables cost more too. You buy small form factor for desk space and portability, not savings. The 18.25-liter volume is the product; the price premium is the fee.

How much space do I need behind the motherboard tray?

About 25mm minimum for comfortable routing of a 24-pin, two EPS cables, and PWM fan leads without fighting the side panel. Anything under 20mm turns cable management into a wrestling match and often bows the panel. Depth behind the tray, routing channels, and included Velcro straps separate premium chassis from budget ones more reliably than steel gauge or glass thickness ever do.

Does front-panel USB-C matter enough to reject a case over it?

At the $130-plus tier, yes. USB-C 10Gbps is baseline in 2027 and 20Gbps appears on premium chassis like the EVO XL and HYTE Y70. Cases outlive three or four component generations, so front I/O you skip today is a five-year annoyance. Also count USB-A ports — the 4000D Airflow ships only one front USB-A, which fills up faster than most builders expect.

FAQ

Which ATX case is best overall in 2027?

The Lian Li O11 Vision Compact at $229. It combines three tempered-glass panels, 423mm GPU clearance, native 360mm radiator support on front, side, and bottom, and the cleanest cable channels Lian Li has shipped. It also handles reverse-connect motherboards. Budget an extra $80-120 for fans, since it ships with none — that omission is intentional for matched-RGB showcase builds.

Which ATX case is the best value?

The Corsair 4000D Airflow at $104. Nothing under $110 matches its thermals, and the perforated steel front avoids the intake choke that kills cheap glass-front cases. It includes two 120mm AirGuide fans worth keeping, USB-C 10Gbps front I/O, and the InfiniRail SSD tray. GPU clearance is 360mm and cooler height 170mm, which covers most mainstream builds comfortably.

Can I fit a 420mm radiator in a mid tower?

In specific ones only. The Fractal Design Torrent takes a 420mm bottom radiator, while the HYTE Y70 Touch Infinite tops out at 360mm side. For two 420mm radiators running at once you need a full tower — the Lian Li O11 Dynamic EVO XL handles 420mm top plus 420mm side plus 360mm bottom. Always verify mount position, not just supported size.

What is the quietest case on this list?

The be quiet! Pure Base 500DX, at roughly 31 dBA idle and 36 dBA under load. That is about 5 dBA below the Corsair 4000D Airflow and 8 dBA below the Fractal Torrent. It also clears 190mm CPU coolers, so a Noctua NH-D15 fits with room to spare. The tradeoff is 369mm GPU clearance, tight for the longest partner cards.

Which case has the best airflow out of the box?

The Fractal Design Torrent at $199. It ships five fans — two 180mm front intakes and three 140mm bottom intakes — and omits the PSU shroud that restricts airflow in most mid towers. It also allows 188mm CPU coolers and E-ATX boards up to 285mm wide. The limitation is front radiator size: 420mm mounts bottom only, not front.

Will an RTX 5090 fit in the Cooler Master NR200P V2?

The 304mm Founders Edition fits, as do most two-slot partner cards, within the case's 336mm clearance. Three-slot cards at 360mm and above do not. Check your exact SKU's length and slot height before ordering, since partner designs vary widely. Remember the V2 includes a GPU riser cable, which affects how much depth the card actually consumes in the chamber.

Do I need a full tower in 2027?

Only for E-ATX boards up to 305mm wide, six or more mechanical drives, or dual 420mm radiator loops. The Corsair 7000D Airflow covers the workstation case with 6x 3.5-inch bays expandable to eight and 190mm cooler clearance. Most builders are better served by a mid tower — the O11 Vision Compact, Torrent, 4000D Airflow, or H7 Flow all handle mainstream high-end parts.

Is the HYTE Y70 Touch Infinite's screen worth $359?

It depends on whether you will use it. The 14.1-inch 1100x3840 IPS touch panel works as a real secondary display for monitoring or media, not a gimmick overlay. It adds roughly 12W of idle draw to your PSU budget. Build quality is excellent and the case supports E-ATX with 446mm GPU clearance, but 360mm side is the radiator ceiling.

How many fans should I actually buy for a new case?

Count the mount points, then subtract what ships in the box. The Fractal Torrent needs none — five come included. The O11 Vision Compact needs a full set, typically $80-120 for matched RGB units. The 4000D Airflow's two included AirGuide fans are genuinely good enough to keep, and a third exhaust is optional rather than necessary for most mainstream builds.

Which case is easiest for a first-time builder?

The Corsair 4000D Airflow or NZXT H7 Flow 2024. Both use a single-chamber layout with a straightforward RapidRoute-style channel and a cable bar that hides mistakes. Avoid dual-chamber showcase cases like the Phanteks NV5 for a first build — the PSU compartment and routing are tight, and the payoff is aesthetic rather than functional. Save the showcase chassis for build number two.
