Top 10 Capture Cards — Best Overall + Best Value in 2027

1. Elgato 4K X

The Elgato 4K X ranks first because at $299 it is the only sub-$300 external unit that captures 4K60 in HDR10 while passing through 4K144 with VRR. It connects over USB 3.2 Gen 2 at 10 Gbps, encodes onboard in hardware H.265, and records standalone to a microSD card with no host PC attached. EposVox measured end-to-end pass-through latency under 1 ms. The anodized aluminum body weighs 6.7 oz and carries a 2-year warranty.

This is the card for console streamers on a PS5 Pro or Xbox Series X who refuse to downgrade their own display to stream. It trades away Dolby Vision pass-through entirely, so HDR10 is the ceiling regardless of your TV. Against the AVerMedia GC553 Pro below it, the 4K X gives up 4K120 HDMI 2.1 pass-through and HDR10+ capture but wins back onboard hardware encoding, a lower price, and standalone recording.

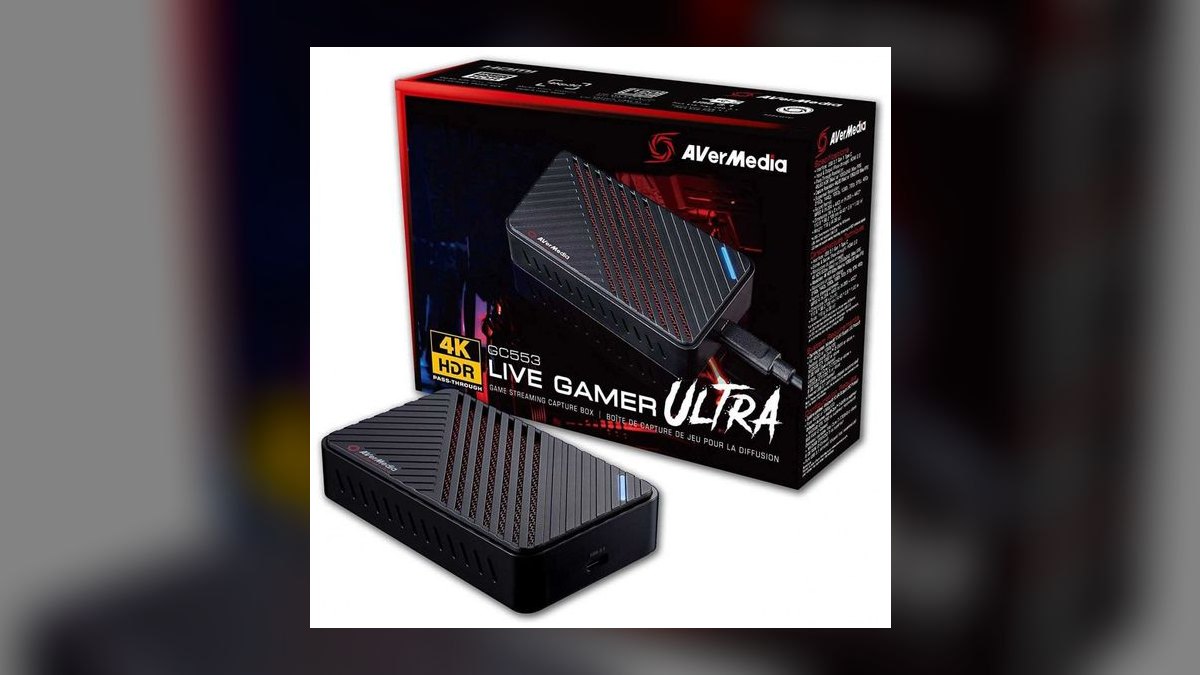

2. AVerMedia Live Gamer Ultra GC553 Pro

The GC553 Pro takes second at $359 because it pushes pass-through further than anything else here: 4K120 over HDMI 2.1 with both VRR and ALLM. It captures 4K60 in HDR10+, a broader HDR standard than the Elgato 4K X manages, and adds a 1440p144 capture mode aimed at PC streamers. Interface is USB 3.2 Gen 2x1. Independent testing put pass-through latency at 1.1 ms. Software is RECentral 4 alongside full OBS support.

Buy this if your monitor genuinely runs 4K120 and you already own a strong host machine. The tradeoff is real: there is no onboard encoder, so encoding falls to your CPU and AVerMedia expects a Ryzen 7 or i7 minimum. It also costs $60 more than the 4K X, ships in a 6.2 oz plastic shell, and carries only a 1-year warranty against Elgato's two.

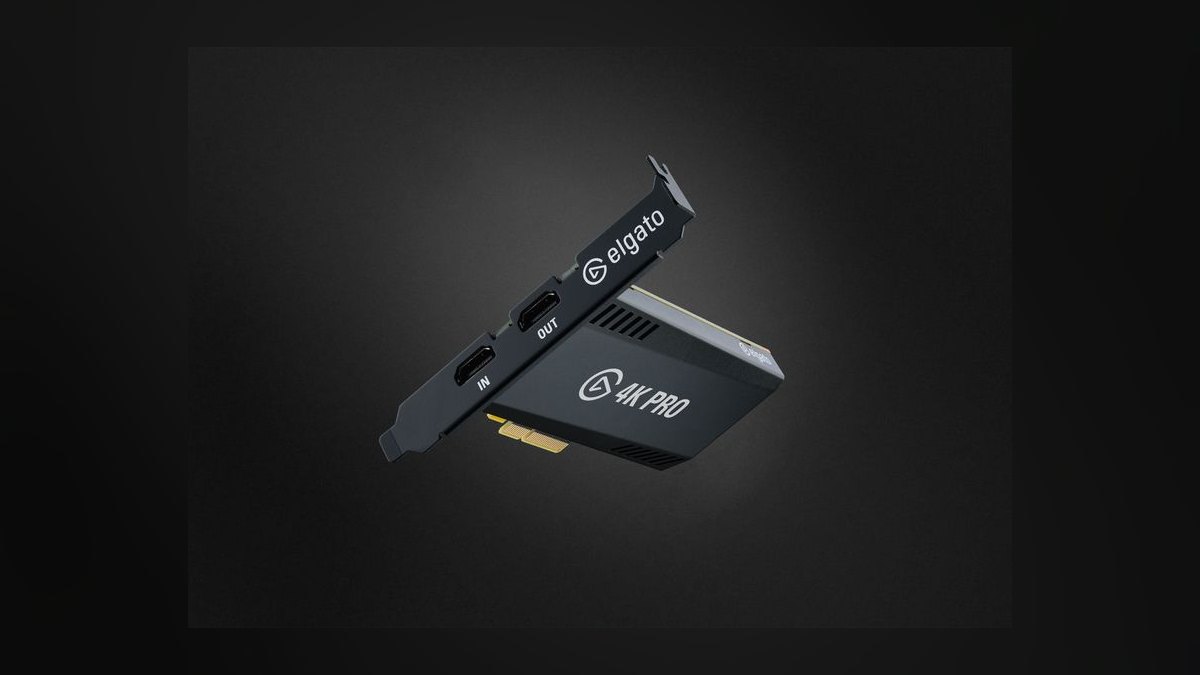

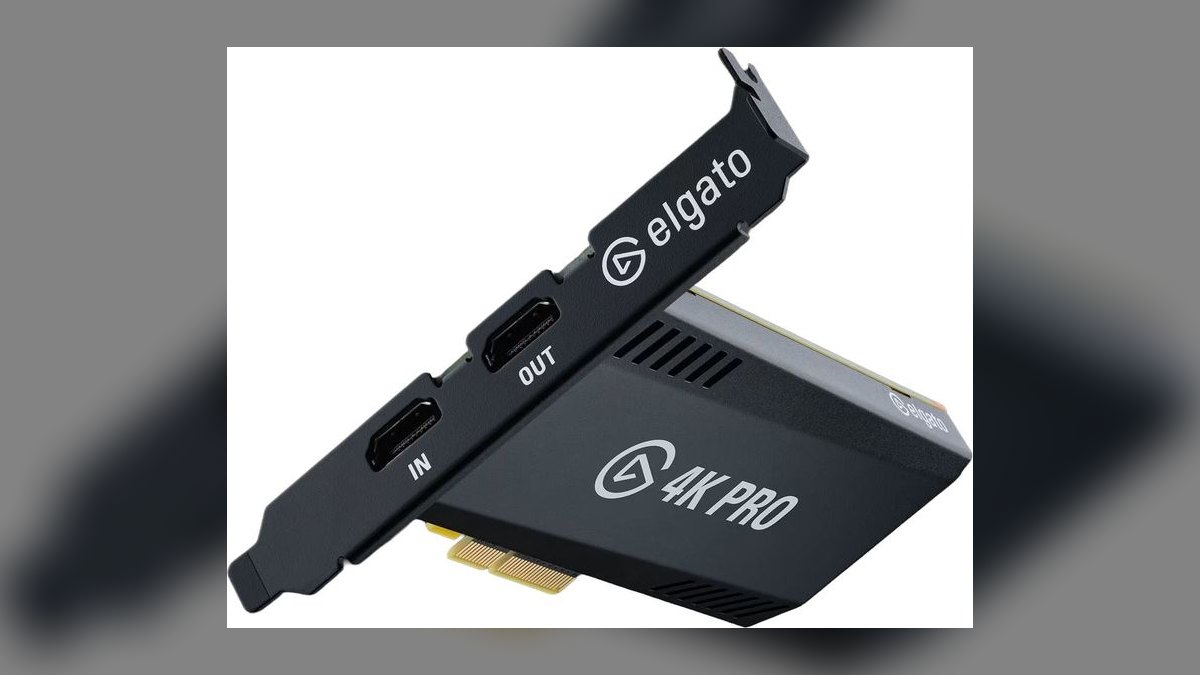

3. Elgato 4K Pro PCIe

The Elgato 4K Pro lands third at $249 on the strength of latency no external unit can approach: end-to-end under 50 microseconds across PCIe Gen 2 x4. It captures 4K60 HDR10 and passes through 4K144 with VRR, matching the 4K X on both counts. An onboard hardware H.264/HEVC encoder keeps CPU load off the gaming thread. The board is half-height, single-slot, fanless, weighs 5.1 oz, and carries a 2-year warranty.

Single-PC streamers with a free slot get the best version of this card's argument, since USB bandwidth ceilings simply stop existing. The disqualifying trade is form factor: it is internal only, useless on a laptop and awkward in a dual-PC rig where the capture side needs portability. Versus the 4K X above it, you save $50 and gain latency, but lose standalone SD recording and any ability to move between machines.

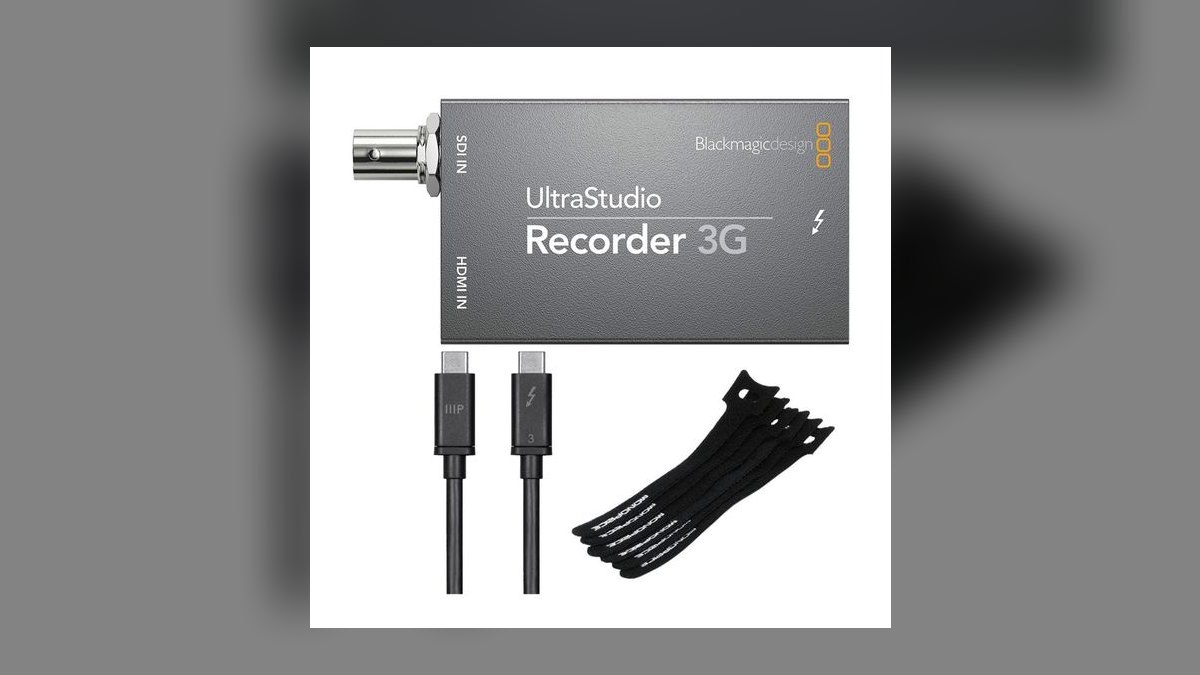

4. Blackmagic UltraStudio Recorder 3G

The UltraStudio Recorder 3G earns fourth at $165 as the only device here with both 3G-SDI and HDMI 2.0 inputs, which is what multi-cam production actually requires. It captures 1080p60 at 10-bit 4:2:2 broadcast color over Thunderbolt 3, sidestepping USB bandwidth limits entirely. It integrates natively with DaVinci Resolve 19, OBS, and Wirecast. The machined aluminum housing weighs 3.5 oz and carries a 1-year warranty, with pass-through latency under 1 ms.

Podcasters and multi-cam producers running SDI cable runs are the target, not gamers. The hard limit is resolution: it caps at 1080p60 with no 4K capture at all, so a 4K camera gets downscaled. Compared to the Elgato 4K Pro above it, you give up every 4K capability and gain SDI input, 10-bit 4:2:2 color depth, and native Resolve integration for $84 less.

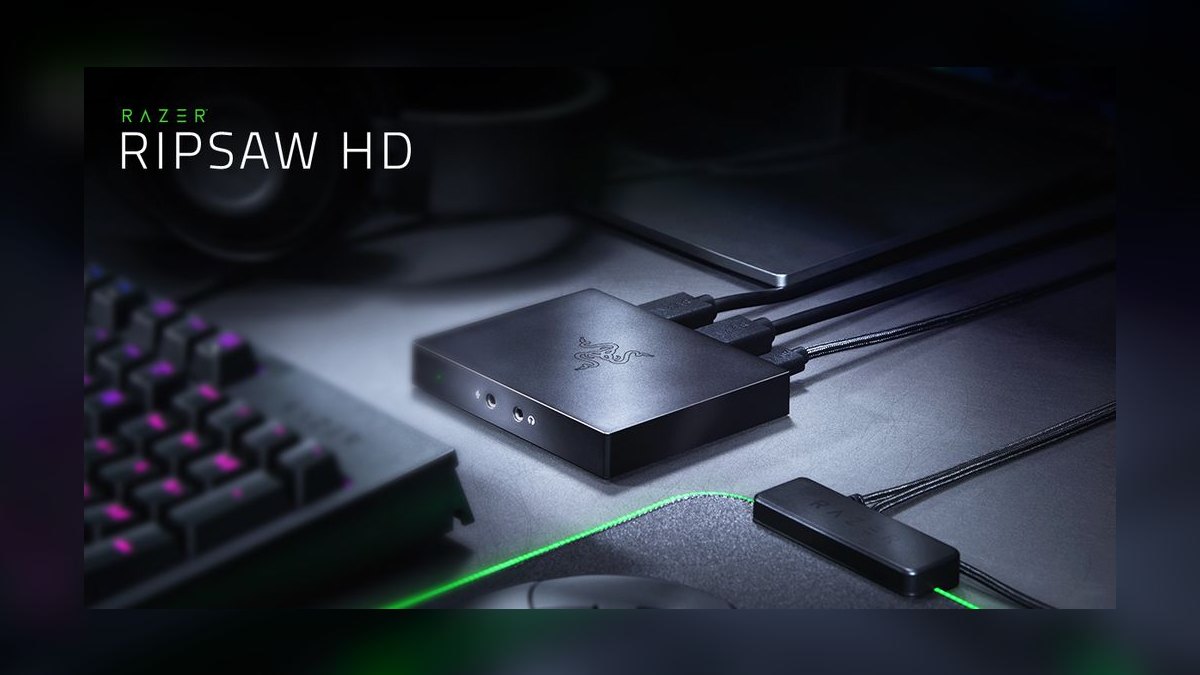

5. Razer Ripsaw HD

The Razer Ripsaw HD sits fifth at $159 because it solves an audio problem the cards above ignore: a 3.5mm aux-in that mixes your headset feed directly into the capture. It records 1080p60 with uncompressed audio over USB 3.0 and passes through 4K60 HDR to your display. Software is OBS plug-and-play plus Razer Synapse for input mixing. The rubberized plastic body weighs 6.5 oz and carries a 2-year warranty.

Twitch streamers who need clean 1080p60 and want party chat captured without a separate mixer are the fit. The ceiling is 1080p60 SDR capture, so HDR passes to your monitor but never reaches the recording. Against the Elgato HD60 X below it, the Ripsaw costs $20 less and adds aux-in, but Elgato's driver stability and 4K Capture Utility ecosystem remain the stronger daily-use package.

6. Elgato HD60 X

The Elgato HD60 X takes sixth at $179 as the best value on this list, hitting the 1080p60 capture plus 4K60 HDR pass-through sweet spot for under $200. It also passes VRR through for Xbox Series X owners. Interface is USB 3.0 with CPU-side H.264/HEVC encoding, and EposVox measured 1.2 ms pass-through latency. The 8.6 oz aluminum shell carries a 2-year warranty, with the 4K Capture Utility and a native OBS plugin.

New streamers who want zero driver troubleshooting on Windows or macOS should start here and stop reading. It caps capture at 1080p60, so nothing you record will ever be 4K no matter what your console outputs. Against the Razer Ripsaw HD above it, you pay $20 more and lose the 3.5mm aux-in, but gain VRR pass-through and Elgato's more reliable software ecosystem.

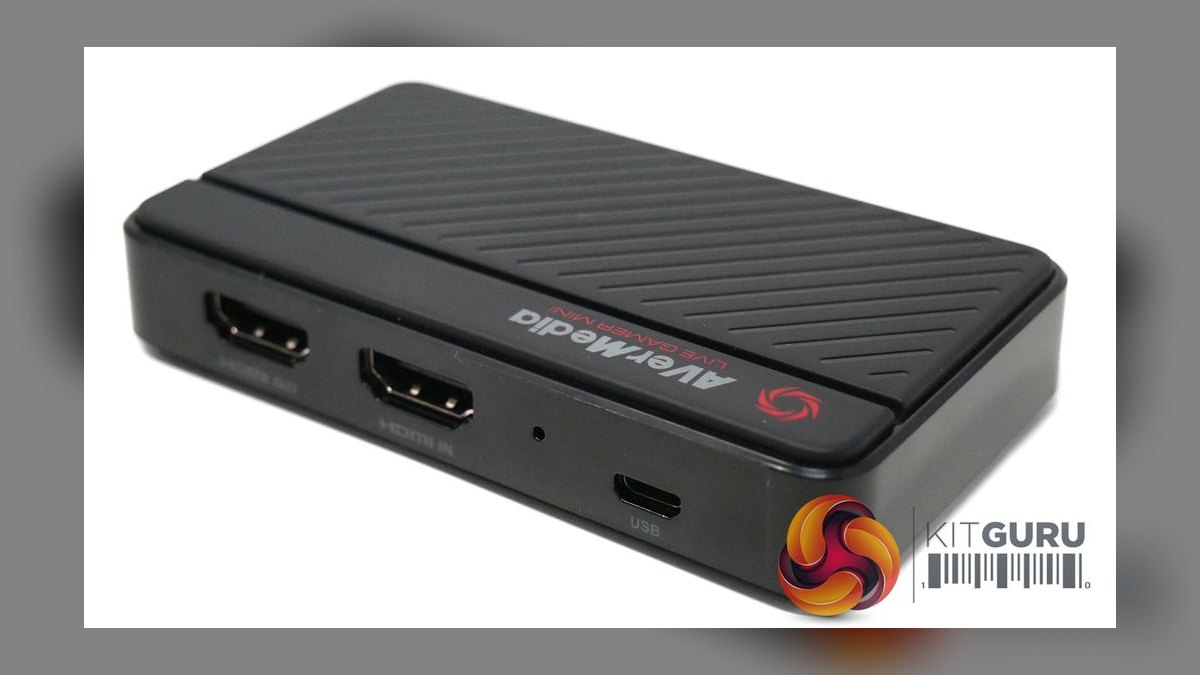

7. AVerMedia Live Gamer Mini GC311

The Live Gamer Mini ranks seventh at $99 as the entry-level price benchmark and the most tolerant card here of non-standard refresh rates, including 50 Hz PAL sources. That makes it the practical choice for retro console capture where newer cards refuse to lock signal. It captures 1080p60 over USB 2.0 with CPU H.264 encoding, running through RECentral 4 or OBS. The unit weighs 3.2 oz and carries a 1-year warranty.

Budget streamers and retro collectors are the audience; anyone with a modern 4K display is not. Pass-through tops out at 1080p60 with no 4K path, so your gaming monitor is pinned at 1080p while you stream. Against the Elgato HD60 X above it, you save $80 and gain PAL/NTSC flexibility, but surrender 4K60 HDR pass-through, VRR, and USB 3.0 bandwidth headroom.

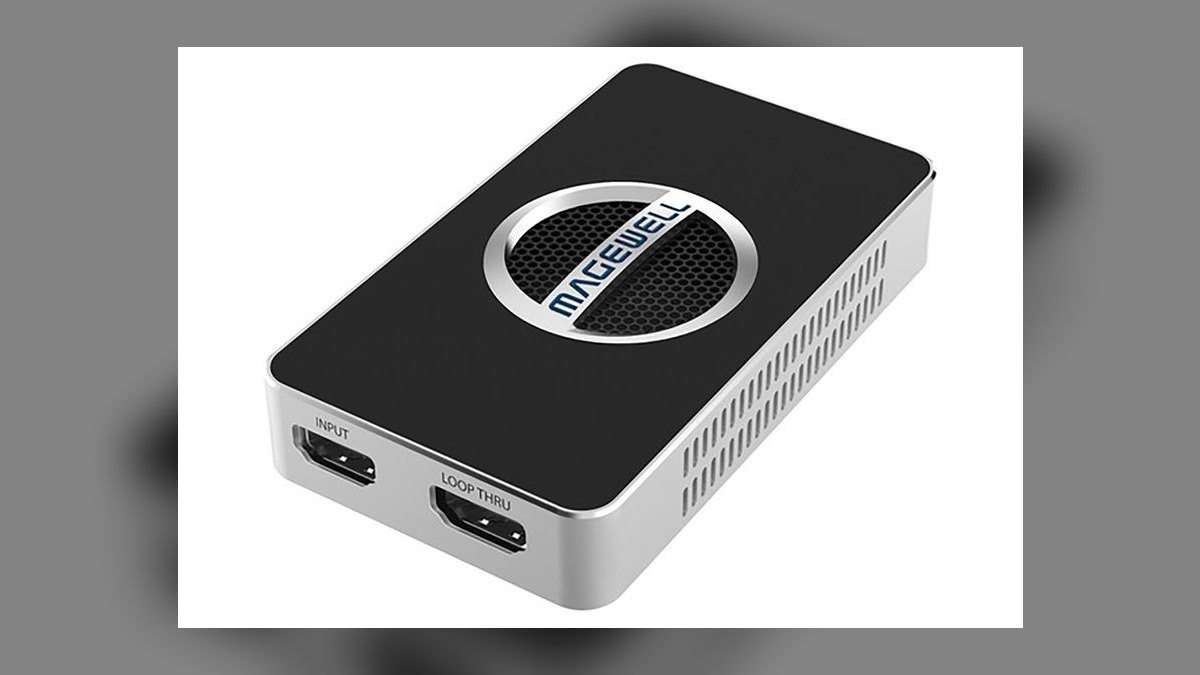

8. Magewell USB Capture HDMI 4K Plus

The Magewell USB Capture HDMI 4K Plus lands eighth at $465 on color fidelity rather than price: it captures 4K30 at 10-bit 4:4:4 over USB 3.0. Being UVC and UAC compliant, it installs no drivers on Windows, macOS, or Linux and appears to any application as a webcam. The metal housing weighs 3.9 oz with a 2-year warranty. Pass-through latency runs under 80 ms, the highest here, because broadcast work prioritizes color over speed.

AV integrators, university media labs, and broadcast operators are who this is built for. It is the most expensive card on the list yet stops at 4K30, and its latency makes it unsuitable for any gaming pass-through use. Compared to the GC311 above it, you pay $366 more for driver-free Linux support and broadcast color depth that budget streamers will never use.

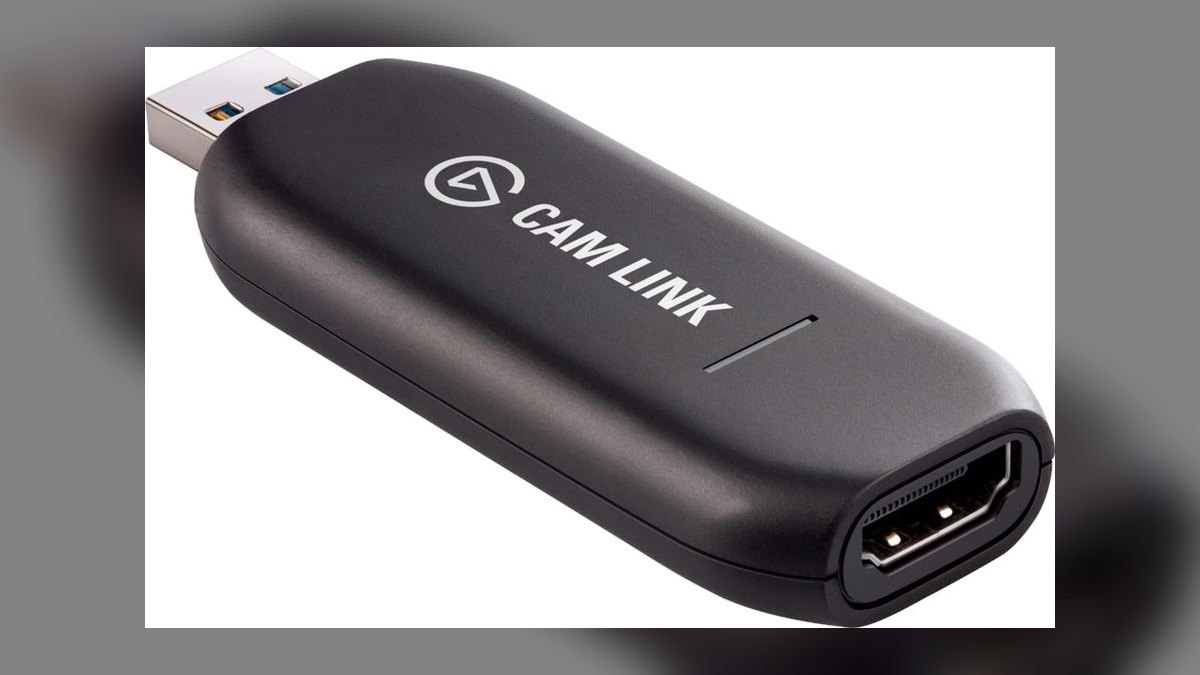

9. Elgato Cam Link 4K

The Cam Link 4K places ninth at $129 for one narrow job it dominates: turning a DSLR or mirrorless camera into a standard UVC webcam. It accepts 4K30 or 1080p60 HDMI input over USB 3.0 and appears immediately in Zoom, Teams, OBS, and Streamlabs with no configuration. The plastic stick weighs 2.1 oz and carries a 2-year warranty. It is the default answer in podcast-camera setups where a real lens matters more than capture specs.

Podcasters and remote presenters mounting a camera at their desk are the buyers. The trade is total: there is no HDMI pass-through whatsoever, so it is one-way capture and cannot sit between a console and a display. Against the Magewell above it, you save $336 and lose 10-bit 4:4:4 color and Linux support, keeping the plug-and-play UVC behavior that matters most.

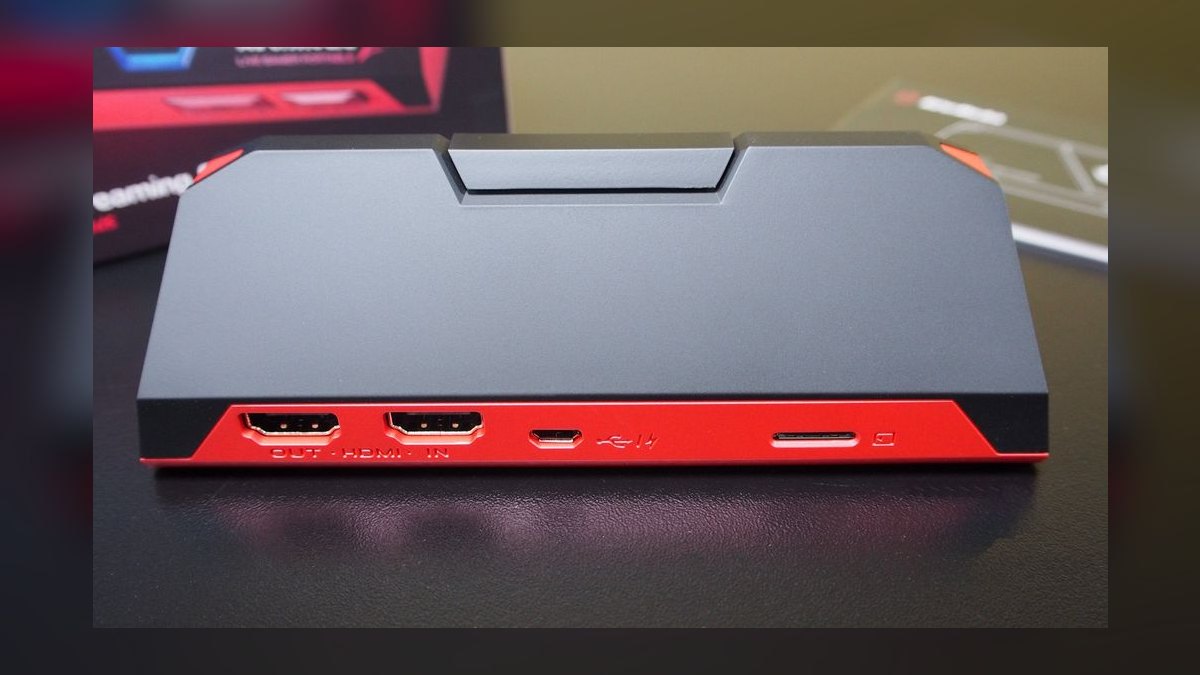

10. AVerMedia Live Gamer Portable 2 Plus

The Live Gamer Portable 2 Plus closes the list at $159 because it records 1080p60 straight to a microSD card with no PC in the chain, then works as a normal USB 2.0 capture card once you plug in a laptop. An onboard hardware H.264 encoder keeps recorded files small and edit-ready without taxing a host CPU. Pass-through runs 4K30 or 1080p60. The rugged plastic body weighs 7.1 oz with a 1-year warranty.

Travel streamers and anyone capturing console footage away from a desk get the most from it. Pass-through caps at 4K30, which means 4K60 console gamers watch their own display drop to half framerate. Versus the Elgato Cam Link 4K above it, this adds standalone recording, hardware encoding, and pass-through the Cam Link lacks entirely, but it cannot serve as a DSLR webcam adapter.

How we ranked these

We weighted six categories using published spec sheets and independent bench testing: max capture resolution and framerate (25%), pass-through resolution plus HDMI 2.1 and VRR support (20%), encoding path — onboard hardware H.264/H.265 versus host CPU (15%), interface bandwidth and driver stability across USB 3.2 and PCIe (15%), software ecosystem including OBS native plugin support (15%), and build quality, warranty, and price-to-performance (10%).

We deliberately ignored bundled proprietary streaming software, because nearly every streamer ends up in OBS regardless of what ships in the box. We ignored RGB lighting and "esports-grade" branding entirely. We also discounted advertised maximum resolutions that apply only to pass-through, since a card that passes 4K but records 1080p is a 1080p card. Retail bundle deals were excluded as they expire.

What to look for

Pass-through is the spec that decides this purchase, not capture resolution. If you game on a PS5 Pro or Xbox Series X into a 120Hz-plus display, you need HDMI 2.1 with VRR — the Elgato 4K X, AVerMedia GC553 Pro, and Elgato 4K Pro PCIe are the three units that clear that bar. Everything else silently downgrades your own gameplay to make your stream work, which is a bad trade.

The common mistake is buying 4K capture when you stream at 1080p60. Twitch caps most partners well below 4K, and 4K source files eat storage and encoding headroom for output nobody sees. The second mistake is ignoring the encoding path: CPU-encoding cards like the HD60 X and GC553 Pro need a strong host machine, so budget for the CPU, not just the card.

Related questions

Do I need a capture card if I only stream PC games?

No. Single-PC streamers can capture gameplay in OBS with Game Capture or Display Capture at zero hardware cost. A capture card matters when you add a second PC to offload encoding, or when the source is a console, DSLR, or another machine you cannot install software on. Internal cards like the Elgato 4K Pro exist mainly for that dual-PC scenario.

Why do almost no capture cards support Dolby Vision?

Dolby Vision requires a paid licensing agreement and dedicated metadata handling that Dolby does not extend to consumer capture hardware. Every card on this list passes HDR10 instead. If your display is Dolby Vision capable, your console will negotiate down to HDR10 when the capture card sits in the chain. That fallback is automatic and generally invisible during gameplay.

What does VRR pass-through actually change for a streamer?

Variable refresh rate lets your display sync its refresh to the console's frame output, eliminating tearing and stutter during frame drops. Without VRR pass-through, inserting a capture card locks your display to a fixed refresh rate, so you lose the smoothness your console and monitor were built to deliver. Your viewers never see the difference; you feel it every session.

Is Thunderbolt actually better than USB for capture?

For most streamers, no. Thunderbolt 3 on the Blackmagic UltraStudio Recorder 3G removes bandwidth ceilings, which matters for uncompressed 10-bit 4:2:2 broadcast color. But USB 3.2 Gen 2 at 10 Gbps already carries 4K60 comfortably, and USB works on far more machines. Buy Thunderbolt for color fidelity and SDI workflows, not for gaming capture.

Can a capture card record without any computer attached?

Two on this list can. The Elgato 4K X writes 4K60 directly to a microSD card, and the AVerMedia Live Gamer Portable 2 Plus records 1080p60 standalone using its onboard H.264 encoder. Both then function as normal capture cards when connected to a laptop. Every other unit here needs a host machine running for encoding and storage.

Why is the Magewell more expensive than cards that capture higher resolutions?

Because it targets broadcast, not gaming. The Magewell USB Capture HDMI 4K Plus captures 10-bit 4:4:4 color and is UVC/UAC compliant, so Linux, Windows, and macOS see it without a driver install. It caps at 4K30 and adds significant pass-through latency. AV integrators pay for color accuracy and universal compatibility, not framerate.

Does an HDMI splitter break HDR before it reaches the card?

Frequently, yes. Cheap HDMI 2.0 splitters strip HDR metadata and downgrade the signal before the capture card sees it, which is a common cause of washed-out or flat-looking stream footage. If you need a splitter in the chain, buy one explicitly rated for HDMI 2.1 with HDR passthrough, or route directly into the card instead.

How much CPU does a card without a hardware encoder actually cost me?

Enough to matter on a single-PC setup. The Elgato HD60 X and AVerMedia GC553 Pro hand encoding to your processor, which is why AVerMedia specifies a Ryzen 7 or Core i7 as a floor for the GC553 Pro. Cards with onboard hardware H.264 or HEVC encoders, like the 4K X and 4K Pro PCIe, leave those cycles for the game.

FAQ

What is the best capture card overall in 2027?

The Elgato 4K X at $299. It is the only sub-$300 external unit that captures 4K60 in HDR10, passes through 4K144 with VRR, and records standalone to a microSD card without a host PC. It runs on USB 3.2 Gen 2 with an onboard hardware HEVC encoder, and pass-through latency measures under one millisecond in independent testing.

What is the best value capture card?

The Elgato HD60 X at $179. It captures clean 1080p60 while passing 4K60 HDR and VRR through to your gaming display, and it works in OBS with no driver installation on Windows or macOS. Since most streamers output at 1080p anyway, the missing 4K capture costs you nothing real. It is the default pick under $200.

Can I use a capture card without a PC?

Yes, on select models. The Elgato 4K X records directly to a microSD card, and the AVerMedia Live Gamer Portable 2 Plus records 1080p60 standalone with onboard hardware H.264 encoding. Both work as conventional capture cards once you plug in a laptop. Every other card on this list requires a connected computer for encoding and storage.

Do capture cards add input lag for gaming?

With pass-through, barely any. The Elgato 4K X and Blackmagic measure under one millisecond, the HD60 X at 1.2 ms, and the internal Elgato 4K Pro PCIe under 50 microseconds. The Magewell is the exception at under 80 ms, because broadcast hardware prioritizes color accuracy over latency. Match the pass-through refresh rate to your display.

What is the difference between USB and internal PCIe capture cards?

USB cards are portable and work with laptops, consoles, and dual-PC rigs without opening a case. PCIe cards like the Elgato 4K Pro deliver dramatically lower latency — under 50 microseconds versus roughly one millisecond — and avoid USB bandwidth ceilings entirely. The tradeoff is that an internal card is useless for laptops or travel setups.

Which capture card is best for a DSLR or mirrorless camera?

The Elgato Cam Link 4K at $129. It accepts 4K30 or 1080p60 HDMI and exposes your camera as a standard UVC webcam in Zoom, Teams, OBS, and Streamlabs with no configuration. It has no HDMI pass-through, so it is capture-only. For SDI cameras or multi-cam podcast rigs, the Blackmagic UltraStudio Recorder 3G is the better fit.

Do these cards work on macOS and Linux?

The Elgato 4K X, HD60 X, and Cam Link 4K all run natively on macOS with no driver install. The Magewell USB Capture HDMI 4K Plus is the only unit here with full native Linux support, since it is UVC and UAC compliant and appears to any application as a standard webcam. Internal PCIe cards are Windows-desktop only.

Which card should I buy for retro consoles?

The AVerMedia Live Gamer Mini GC311 at $99. It handles non-standard refresh rates like 50 Hz PAL more gracefully than most modern cards, which is exactly where retro capture usually breaks. It captures 1080p60 over USB 2.0 and works plug-and-play in OBS. The limitation is 1080p60 pass-through only, so no 4K monitor throughput.

Is a $99 card good enough to start streaming?

Yes, if your display is 1080p. The AVerMedia Live Gamer Mini captures 1080p60 reliably and is the entry-level benchmark. The reason to spend $179 on the HD60 X instead is pass-through: the Mini caps at 1080p60, so a 4K gaming monitor gets downgraded. Pay the difference for pass-through, not for capture quality.

What should I avoid when buying a capture card?

Three traps. Cards marketed as 4K that only pass through 4K60 with no VRR, which downgrades a PS5 Pro setup. Cheap HDMI 2.0 splitters that strip HDR before the signal reaches the card. And firmware-abandoned budget brands that lose driver support after a Windows feature update, leaving you with dead hardware and no recourse.
