Top 10 Magnetic Drill Presses — Best Overall + Best Value in 2027

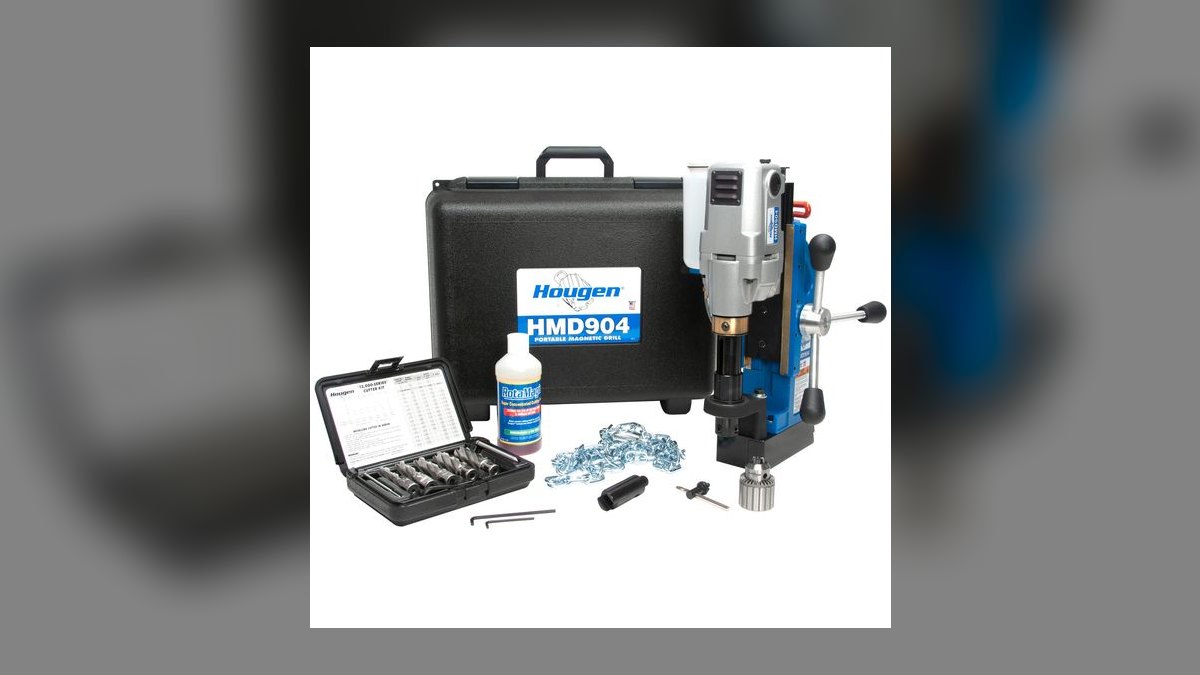

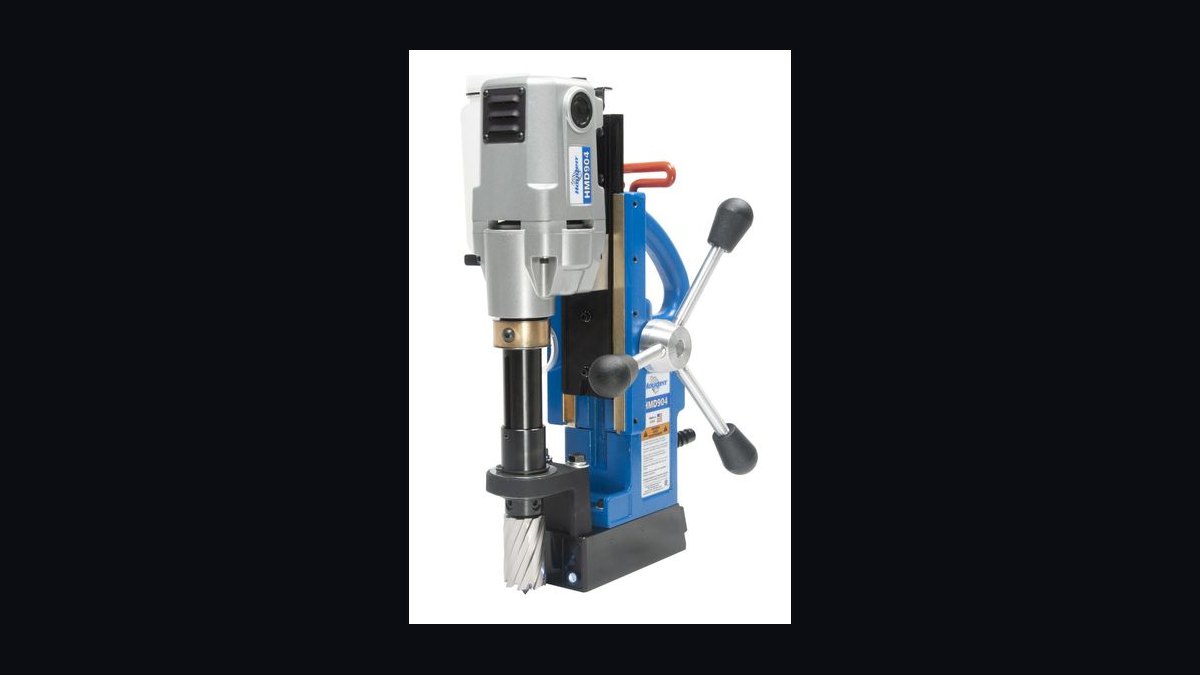

1. Hougen HMD904

The HMD904 ranks first because its two-stage magnet gains roughly 30% more holding power the instant the motor engages, biting into 1-inch steel before the cutter touches the work. A 115V, 9-amp motor turns a single 450 RPM spindle through 7/16 to 1-1/2 inch annular holes up to 2 inches deep. It weighs 28.9 lbs, costs about $1,107, and its slot-drive arbor ejects slugs positively instead of leaving them jammed.

This is the pick for fabricators and ironworkers who want one machine to last a decade, backed by USA manufacturing and rebuildable parts support. The trade is the single-speed spindle: large cutters bog where a two-speed gearbox would let you drop RPM. Against the Evolution S28MAG below it, you pay roughly $457 more for durability, service depth, and slug handling rather than for extra cutting capacity.

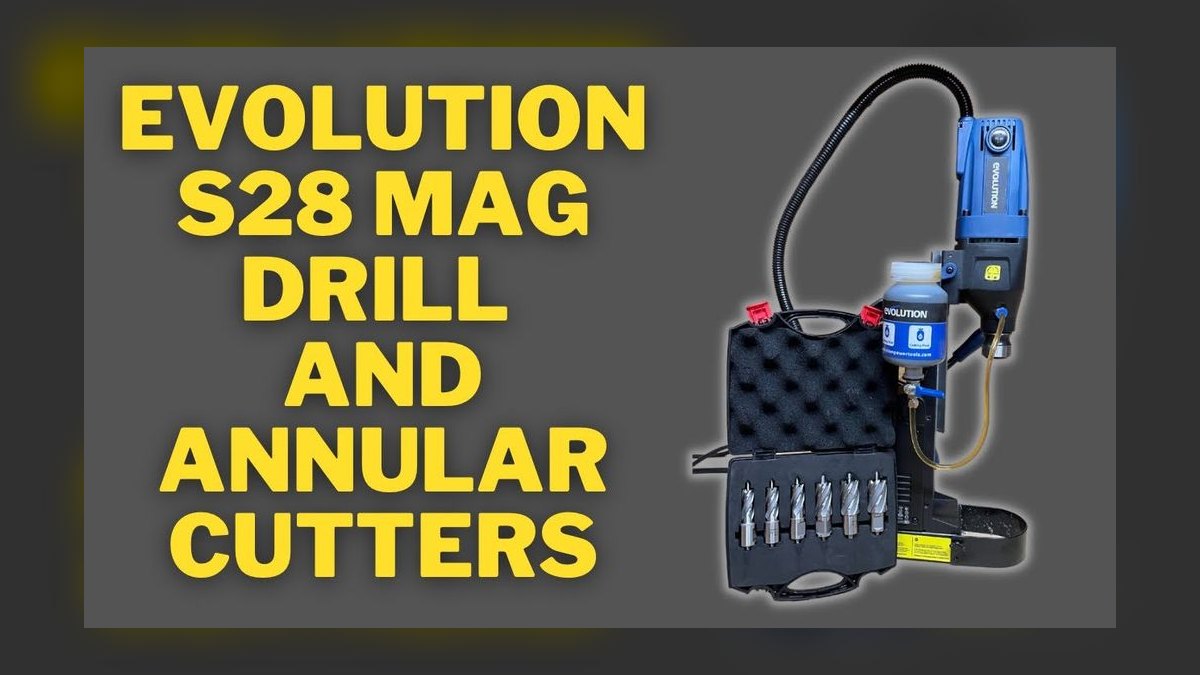

2. Evolution S28MAG

The S28MAG lands second on price-to-performance: about $650 buys a 120V, 10-amp motor at 450 RPM, 1-1/8 inch annular capacity through 2 inches of steel, and a two-stage magnet rated near 2,860 lbs of holding force. A 3/4 inch straight-shank arbor accepts common annular cutters, a 3-jaw chuck handles twist drills to 1/2 inch, and gravity-fed coolant is included. It weighs 26 lbs and ships in a carry case.

Buyers wanting genuine fabrication capacity without four figures should start here. You give up the Hougen's slug ejection, rebuildability, and USA service network, and the single-speed motor caps the largest cutters. Compared to the HMD904 above, holding force is competitive but annular diameter is 3/8 inch smaller, so the biggest structural holes stay out of reach.

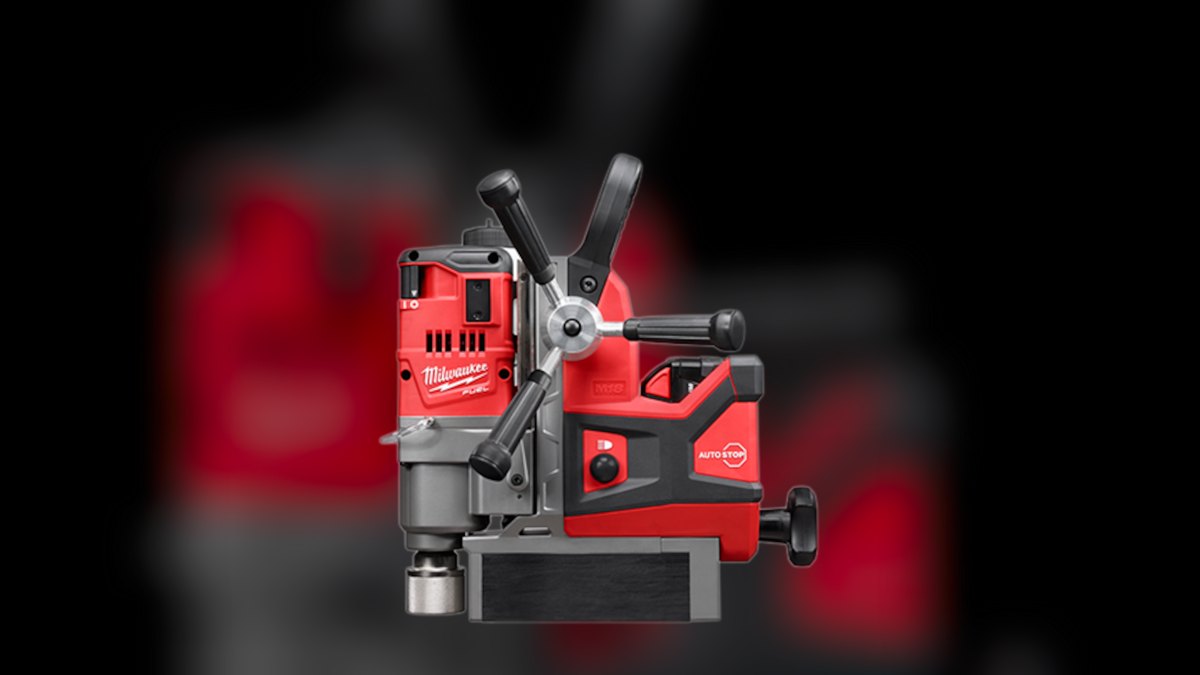

3. Milwaukee 2787-22 M18 FUEL

This ranks third because it removes the cord entirely: a POWERSTATE brushless motor with a two-speed gearbox runs 400/690 RPM, drives 1-1/2 inch annular cutters, and the self-powered magnet base holds up to 2,000 lbs with no generator anywhere. Stroke length is 5-3/4 inches, long enough for deep beams. REDLINK PLUS intelligence guards against overload and lift-off. The kit price is roughly $2,413.

Ironworkers on towers, decks, and remote steel are the buyers here, along with crews already carrying M18 packs. The cost is severe — two corded machines for 1-1/2 inch capacity — and battery runtime caps long production sessions. Against the corded Hougen HMD904, you trade all-day power and a bigger hole for the ability to drill where no outlet exists.

4. CS Unitec MAB 485

Fourth place goes to the machine that does more than drill. A 10.5-amp reversible motor feeds a two-gear oil-bath gearbox with fully variable speed across 70-280 and 180-580 RPM, cutting annular holes to 2-1/16 inch diameter. Because it reverses, it taps to 15/16 inch, reams to 7/8 inch, and countersinks to 1-5/8 inch. At 29 lbs and roughly $1,650, it stays portable, and an SB version adds a swivel base.

Shops that tap and ream plate as often as they bore it get the most out of this. The trade is paying about $543 more than the HMD904 for capability many jobs never touch, plus a heavier feature set to maintain. Compared to the cordless Milwaukee above, it is cheaper and far more versatile, but tethered to a cord.

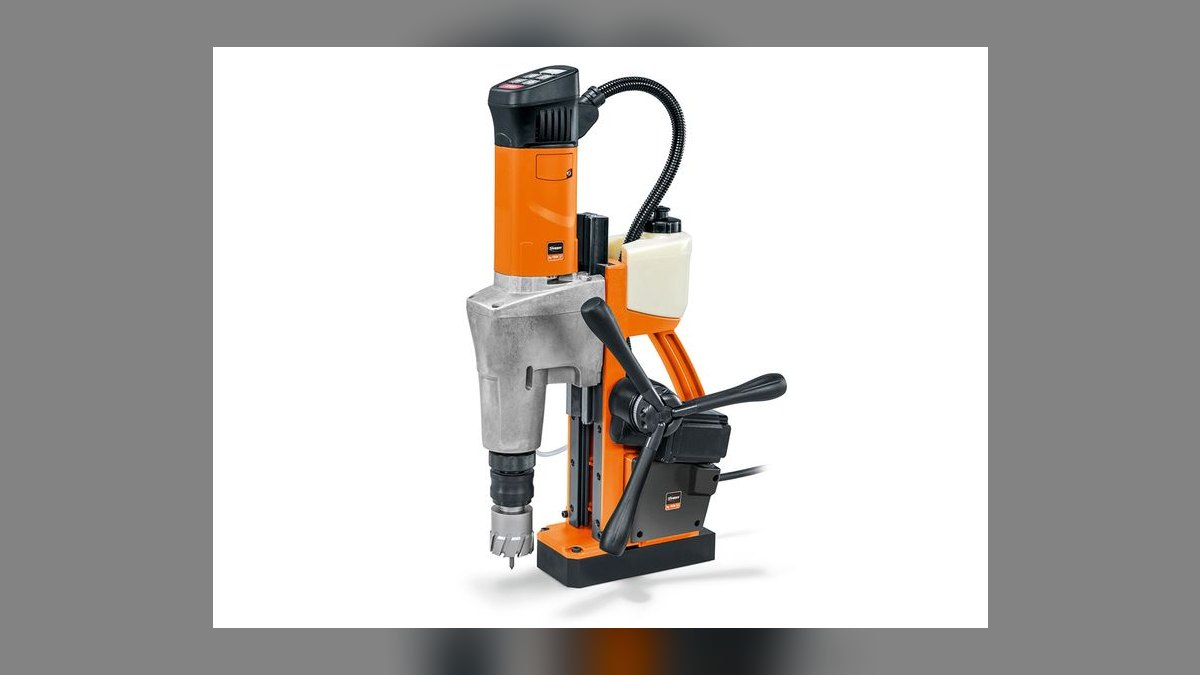

5. Fein Slugger JCM 200 Auto

Fifth because it drills hands-free: a 1.6 hp, 110V motor and two-speed gearbox feed an automatic mechanism that senses load, advances the cutter at optimal rate, retracts, and ejects the slug. Capacity is 2 inch holes through 2 inches of steel. An integrated coolant tank keeps cutters cool through repetitive work. The machine runs about $2,250 and carries Fein's build quality and ergonomics.

Production cells punching dozens of identical holes in plate per shift recover that price in labor. For one-off holes it is pure overkill, and the automatic feed adds a mechanism that manual machines simply do not have to service. Against the MAB 485 above, you gain automatic feed and 2 inch capacity but lose tapping, reaming, and reversibility.

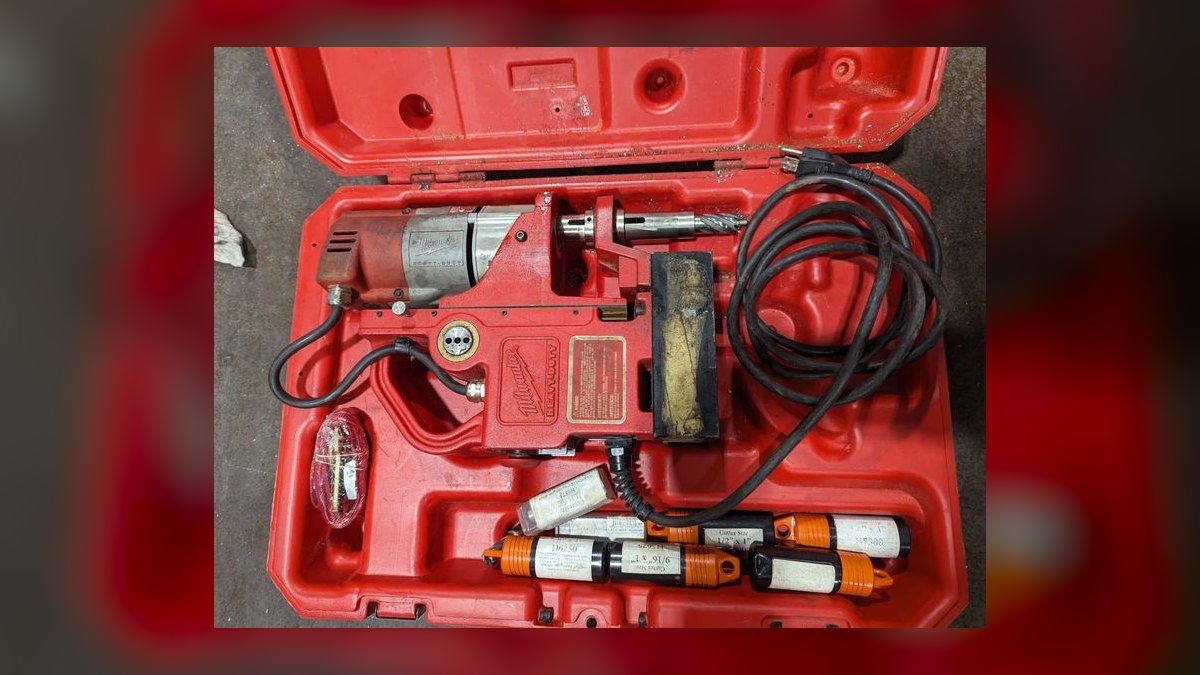

6. Milwaukee 4270-20

This corded compact ranks sixth for fitting where taller machines cannot while keeping a two-coil magnet rated at 2,300 lbs dead-lift on 1-inch steel. It cuts 1-1/2 inch annular holes through 2 inches of steel, or 1/2 inch twist holes up to 4-1/4 inches deep with the included chuck. Price sits near $1,049, and the low body clears ductwork, flange gaps, and tight maintenance pockets.

Mechanical and maintenance pros working in constrained spaces are the audience. The motor is single-speed, so large cutters have no low gear, and the cord rules out tower work the M18 FUEL handles. Against the HMD904 at a similar price, it trades slug ejection and rebuildability for a smaller footprint and slightly stronger rated magnet force.

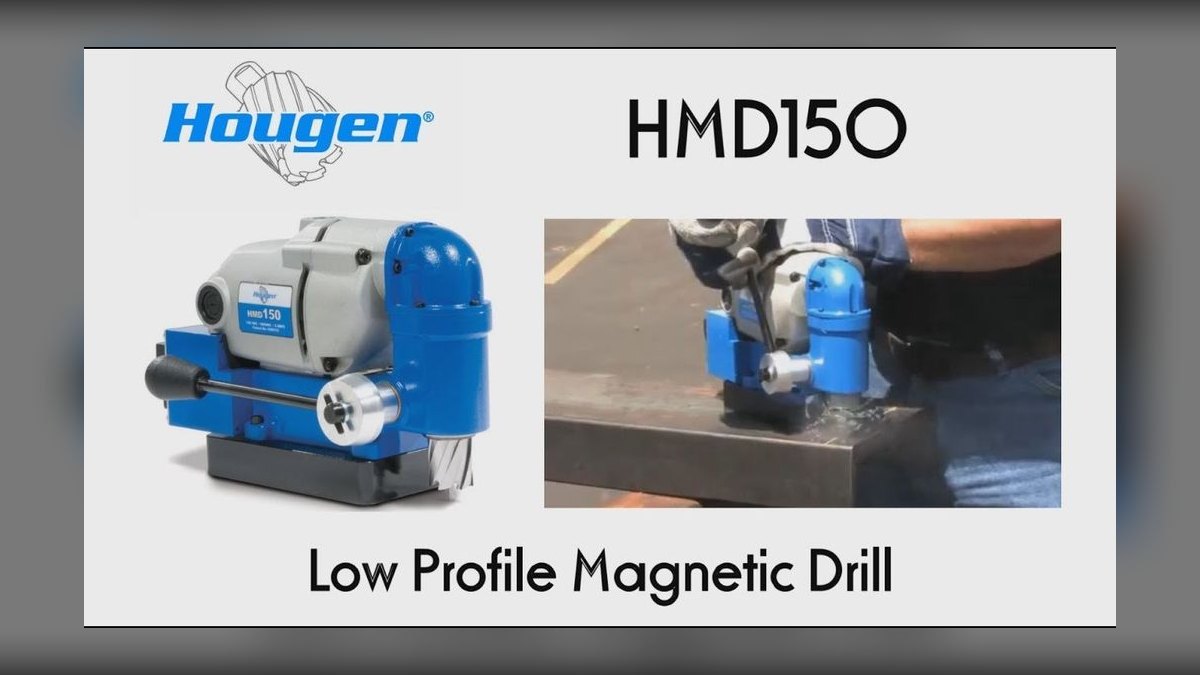

7. Hougen HMD150 Low-Profile

Seventh place belongs to the right-angle, low-profile head that solves obstructed drilling. A 120V motor at 450 RPM cuts 1/2 to 1-3/8 inch holes up to 1 inch deep, while the 4 x 7 inch magnet base delivers 2,165 lbs dead-lift and 735 lbs drill-point breakaway on 1-inch plate. It weighs just 22.7 lbs, includes a lift-detector safety system, and takes tool-free RotaLoc Plus cutters. Price is around $1,350.

This is for crews drilling under obstructions and overhead where an upright machine will not stand. Depth capacity drops to 1 inch, half what most of this list manages, making it a specialist rather than a daily general-purpose drill. Compared to the Milwaukee 4270-20 above, it goes lower and lighter but costs about $300 more and cuts shallower.

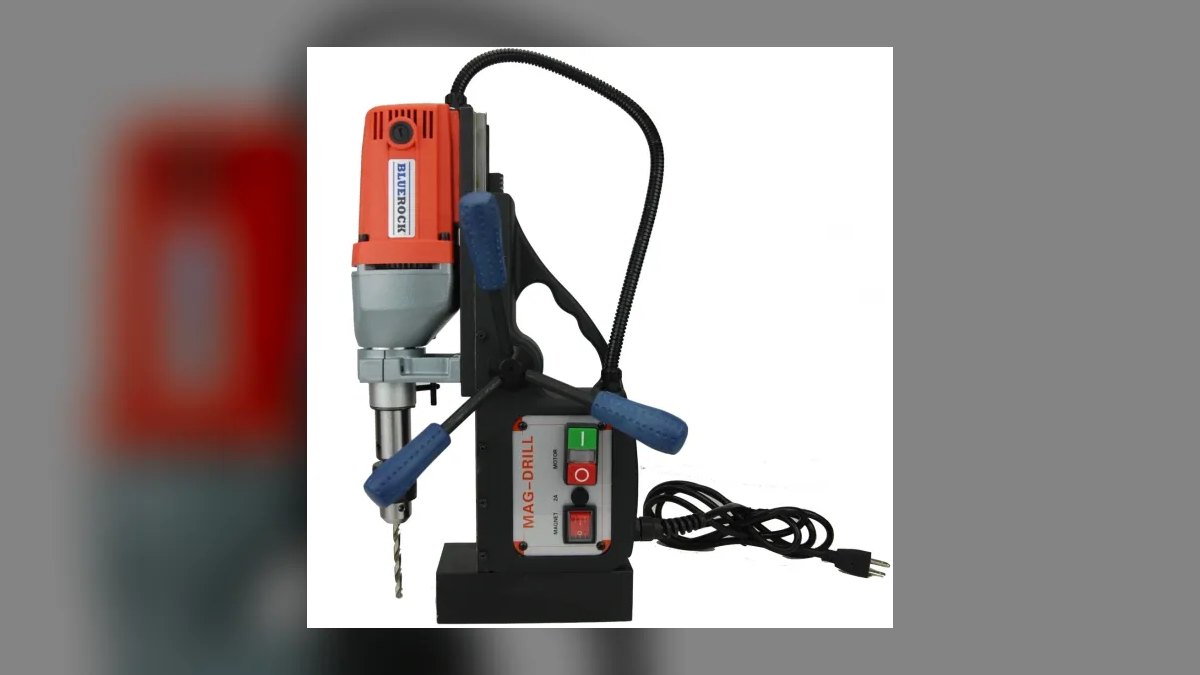

8. BLUEROCK BRM-35A Typhoon

Eighth on the strength of price alone: near $479, it is the cheapest route into a real 7/16 to 1-1/2 inch annular capacity with 2 inch depth, and annular cutter sets are often bundled in. Garage Journal owners report that for light and occasional use a compact import like this does the job, and its low profile beats heavier name-brand units for portability around a small shop.

First-time buyers and budget shops drilling a handful of structural holes weekly are the honest fit. Build quality and service trail the premium brands, and it will not survive eight-hour production days the way a Hougen does. Against the Evolution S28MAG above, it saves about $171 but drops the included coolant system, chuck, and stronger documented holding force.

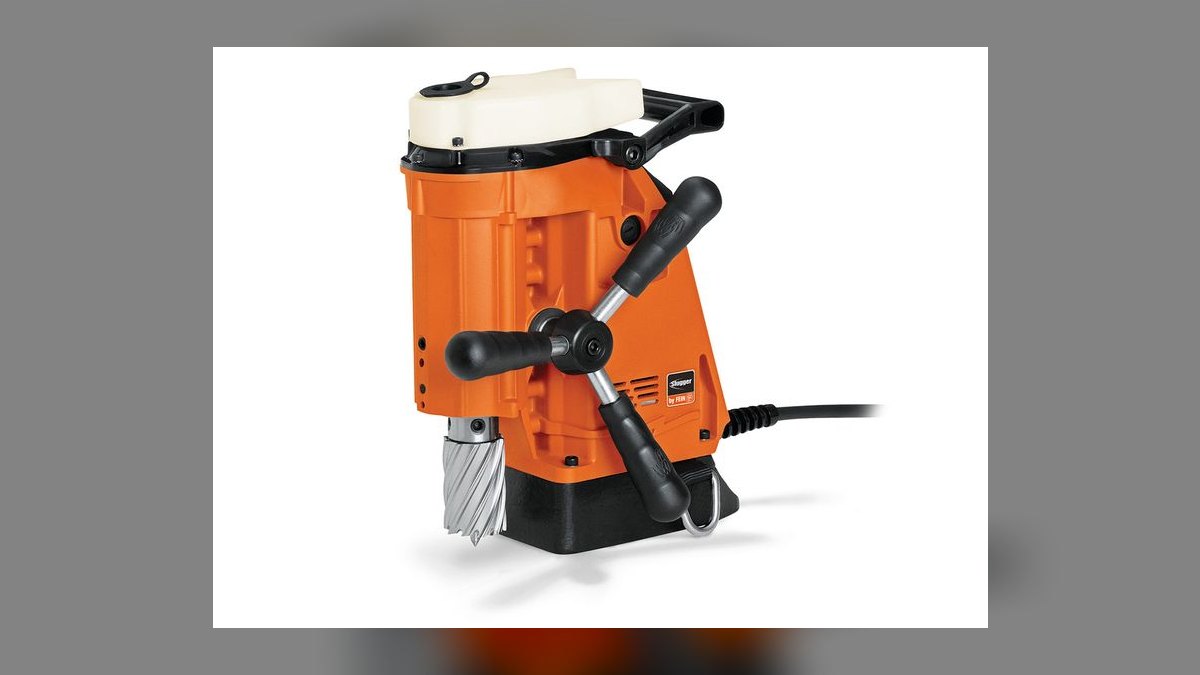

9. Fein Slugger JHM 4x4

Ninth because its capacity is unmatched but narrowly useful: it mag-drills up to 4 inch (100 mm) diameter holes a full 3 inches (75 mm) deep, driven by a 120V, 11.7-amp motor with coolant feed. Nothing else here swallows a bigger annular cutter. That capability costs roughly $3,200, the highest price on this list, and the machine is correspondingly large and heavy.

Bridge, ship, and heavy-structural crews are the buyers — anyone whose holes routinely exceed what 2 inch machines can manage. It demands thick, clean, flat steel for the magnet to anchor safely, so it is not a general job-site tool. Against the JCM 200 Auto above, you double diameter capacity but lose automatic feed and gain considerable bulk.

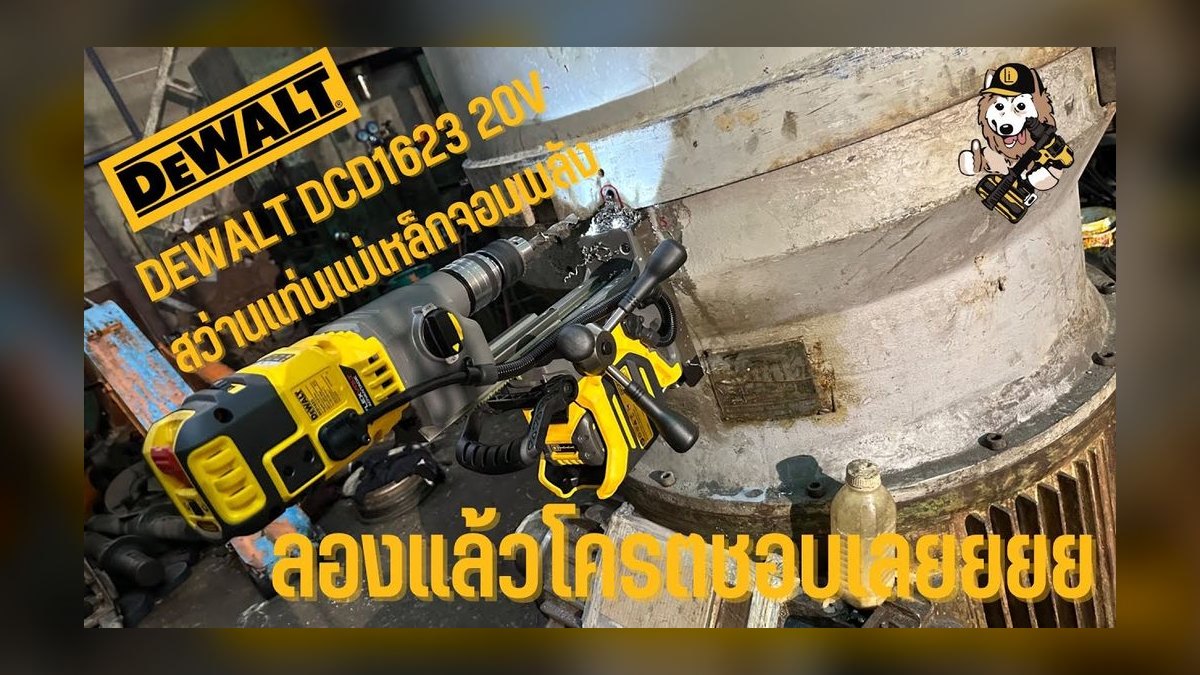

10. DEWALT DCD1623 20V MAX

Tenth because it delivers cordless 2 inch capacity through 2 inches of structural steel on FlexVolt batteries, but at a bare-tool price near $2,099 with no cost advantage over the competition. A two-speed mechanical transmission crossed with five variable-speed settings yields ten effective speeds, letting you match feed to cutter diameter. The brushless motor includes electronic protection.

The real case is platform: shops already deep in 20V MAX share packs across the fleet instead of buying into a second battery system. Runtime caps long sessions, as with any cordless mag drill. Against the Milwaukee 2787-22 above, it cuts a larger 2 inch hole for roughly $314 less, but that Milwaukee ships as a kit with batteries while this is bare tool.

How we ranked these

We weighted cutting capacity — annular diameter and depth — at 25 percent, because a mag drill that cannot swallow the cutter your job requires is useless. Magnet adhesion and lift-off safety took 20 percent, motor power and speed 15, cutter-system compatibility 15, portability and build 15, and price-to-performance the final 10. Specs were cross-checked against manufacturer sheets and long-run owner reports from fabrication and ironworking forums.

We ignored peak RPM claims, horsepower marketing, and amp ratings quoted without load, because a magnet that slips on painted or thin steel makes every other number meaningless. We also set aside benchtop drill-press hybrids, discontinued models, and house brands with no parts channel. Cordless units were judged on capacity and magnet force, not battery marketing, since runtime varies enormously with cutter size.

What to look for

Start with your largest real hole and the steel you actually drill. Most structural work lives at 1-1/2 to 2 inches diameter through 2 inches of plate, which the Hougen HMD904 and Evolution S28MAG both cover. Then check arbor type — slot-drive, 3/4-inch shank, RotaLoc — against cutters your supplier stocks, and confirm you have 1/2 to 3/4 inch of clean steel under the magnet.

The common mistake is buying cordless for the freedom, then discovering most holes are drilled ten feet from a receptacle — you paid $2,400 for a 1-1/2 inch capacity you could have had for $650. The second mistake is single-speed. If you run cutters over an inch regularly, a two-speed gearbox like the MAB 485's saves more in cutters than it costs upfront.

Related questions

What is an annular cutter and why do mag drills use them?

An annular cutter is a hollow cylindrical cutter that removes only a ring of material instead of the whole hole, ejecting the center as a solid slug. That cuts the metal removed by roughly 75 percent, so a 9-amp mag drill can bore a 1-1/2 inch hole that would stall a much larger twist bit.

How much holding force does a magnetic drill press actually need?

Plan on at least 2,000 lbs of dead-lift force on 1-inch steel for general structural work. The Milwaukee 4270-20 rates 2,300 lbs and the Hougen HMD150 about 2,165 lbs. What matters more is the two-stage design that boosts grip when the motor engages, plus the safety strap you should use every single time.

Can a magnetic drill press work on aluminum or stainless steel?

The magnet only grips ferrous material, so it will not hold on aluminum or austenitic stainless. Crews work around this by clamping the drill to a steel backing plate or using a vacuum-base adapter. The cutter itself handles stainless fine at reduced speed — that is exactly what a two-speed gearbox is for.

Do I need coolant when using a mag drill?

For anything past a few holes, yes. Cutting fluid flushes chips out of the cutter flutes and keeps the carbide or HSS teeth from work-hardening the steel. The Evolution S28MAG uses a gravity-fed bottle; Fein and CS Unitec integrate tanks. Overhead work is the exception — use paste lubricant there instead of liquid.

How long do annular cutters last?

A quality HSS cutter run at the right speed with coolant will produce a few hundred holes in mild steel. Carbide-tipped cutters go further and handle harder material. Cutters die from heat and wrong speed, not age — running a 2-inch cutter at 450 RPM instead of 200 is the fastest way to ruin one.

Can a mag drill be used sideways or overhead?

Yes, with caution. Manufacturers rate reduced holding force in horizontal and inverted positions, and a safety chain or strap becomes mandatory rather than optional. Use paste lubricant instead of liquid coolant, keep the steel clean and thick, and expect chip control to be the real problem overhead.

What is the difference between a mag drill and a drill press?

A drill press brings the work to a fixed machine; a mag drill brings the machine to the work. The electromagnet clamps to a beam, plate, or column already installed, letting you bore precision holes in place. Capacity is smaller and speeds lower, but you can drill a 2-inch hole forty feet up a column.

FAQ

What is the best magnetic drill press overall in 2027?

The Hougen HMD904 at around $1,107. Its two-stage magnet gains roughly 30 percent grip when the motor starts, the 9-amp motor drives 7/16 to 1-1/2 inch cutters through 2 inches of steel, and USA parts support means a decade-old unit is still rebuildable rather than landfill.

What is the best value magnetic drill press?

The Evolution S28MAG at about $650. You get roughly 2,860 lbs of holding force, a 1-1/8 inch annular capacity through 2 inches of steel, a 3/4 inch shank that fits common cutters, plus a chuck, coolant system, and carry case in the box. Real capability at half the premium price.

Do I need a two-speed mag drill?

If you regularly run cutters over an inch, yes. Large-diameter cutters need lower surface speed or the teeth burn. The CS Unitec MAB 485 gives fully variable 70-280 and 180-580 RPM ranges; Milwaukee's M18 FUEL offers 400/690. Single-speed units at a fixed 450 RPM force a compromise at both ends.

Are cordless mag drills strong enough for structural steel?

Yes. The Milwaukee 2787-22 and DEWALT DCD1623 both cut 1-1/2 to 2 inch holes through 2 inches of structural steel, with self-powered magnets around 2,000 lbs. The tradeoffs are price — roughly $2,100 to $2,400 — and runtime, which drops sharply as cutter diameter climbs. Capability is genuine, economics are not.

How thick does the steel need to be for the magnet to hold?

Roughly 1/2 to 3/4 inch of clean, flat steel gives full rated holding force. Thinner material, mill scale, paint, or any curve cuts that force substantially, and manufacturers publish derated figures for a reason. Grind the contact patch clean, use the safety strap, and never trust a magnet on thin plate.

Is a swivel base worth the extra cost?

For layout-critical work, yes. A swivel base lets you fine-tune the cutter position after the magnet is locked down, instead of releasing and repositioning the whole machine. Hougen offers a swivel HMD904 variant and CS Unitec an SB version of the MAB 485. For repetitive field holes, it is skippable.

Why does my mag drill keep breaking annular cutters?

Usually speed and feed, not the cutter. Running a large cutter at single-speed 450 RPM overheats the teeth. Too little feed pressure lets the cutter rub instead of cut, work-hardening the steel. Add coolant, apply steady firm pressure, and if the machine has two speeds, drop into low for anything past an inch.

Can I use regular twist drill bits in a magnetic drill press?

Yes, with a chuck adapter. The Evolution S28MAG includes a 3-jaw chuck for twist bits up to 1/2 inch, and the Milwaukee 4270-20 drills 1/2 inch twist holes to 4-1/4 inches deep. Twist bits load the motor far harder than annular cutters, so stay well under the rated capacity.

How much should I expect to spend on a magnetic drill press?

Entry units like the BLUEROCK BRM-35A start near $479. The serious working range runs $650 to $1,700 — Evolution, Hougen, Milwaukee corded, CS Unitec. Cordless and automatic-feed machines land between $2,000 and $2,500, and specialist 4-inch units like the Fein JHM 4x4 reach roughly $3,200.
